Tire Pressure Monitor Receiver / Transponder: Diagrams
Left Front Tire Pressure Transponder (Headlamp And Dash) 6 Way

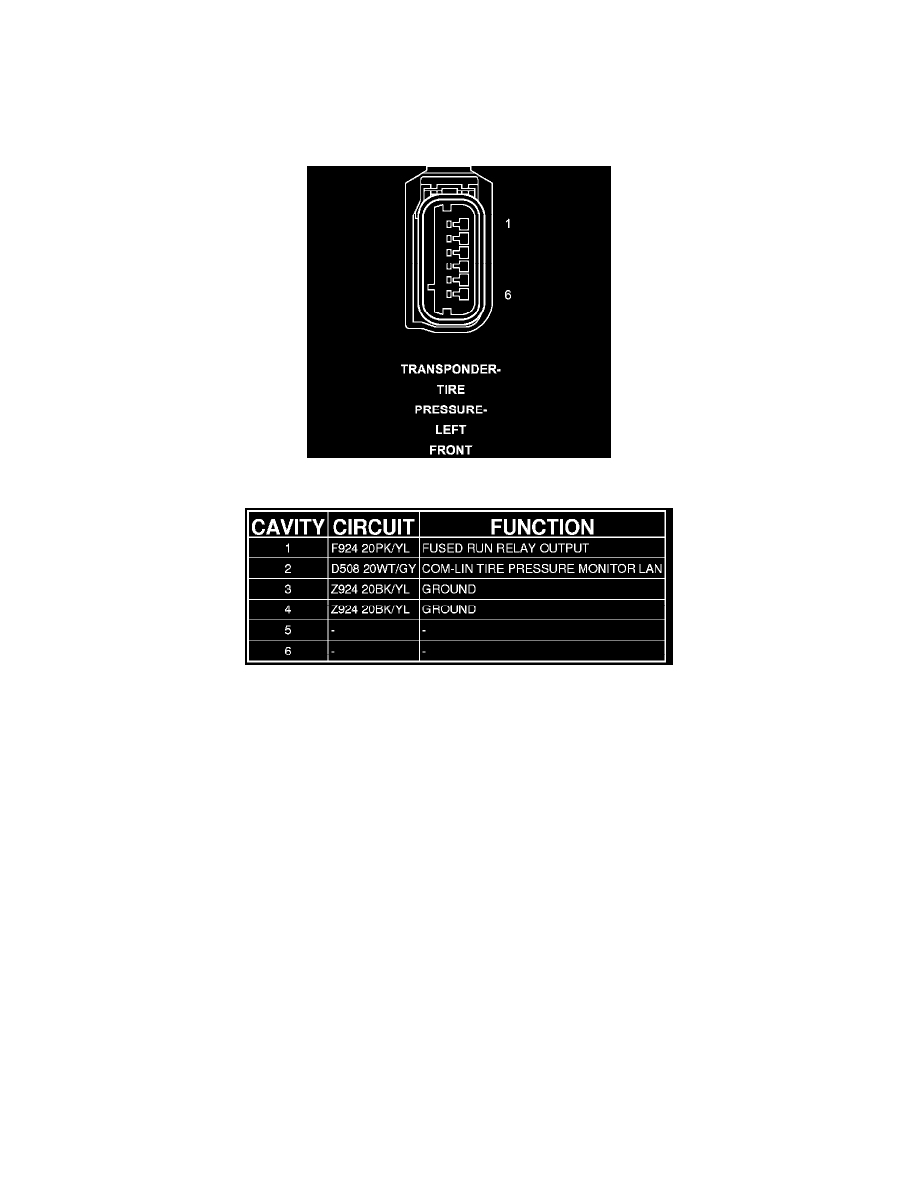

Connector - (HEADLAMP AND DASH) 6 WAY

TRANSPONDER-TIRE PRESSURE-LEFT FRONT - (HEADLAMP AND DASH) 6 WAY
