Grand Cherokee 4WD V6-3.7L (2009)

Page 1
background image

Fog/Driving Lamp Switch: Diagrams

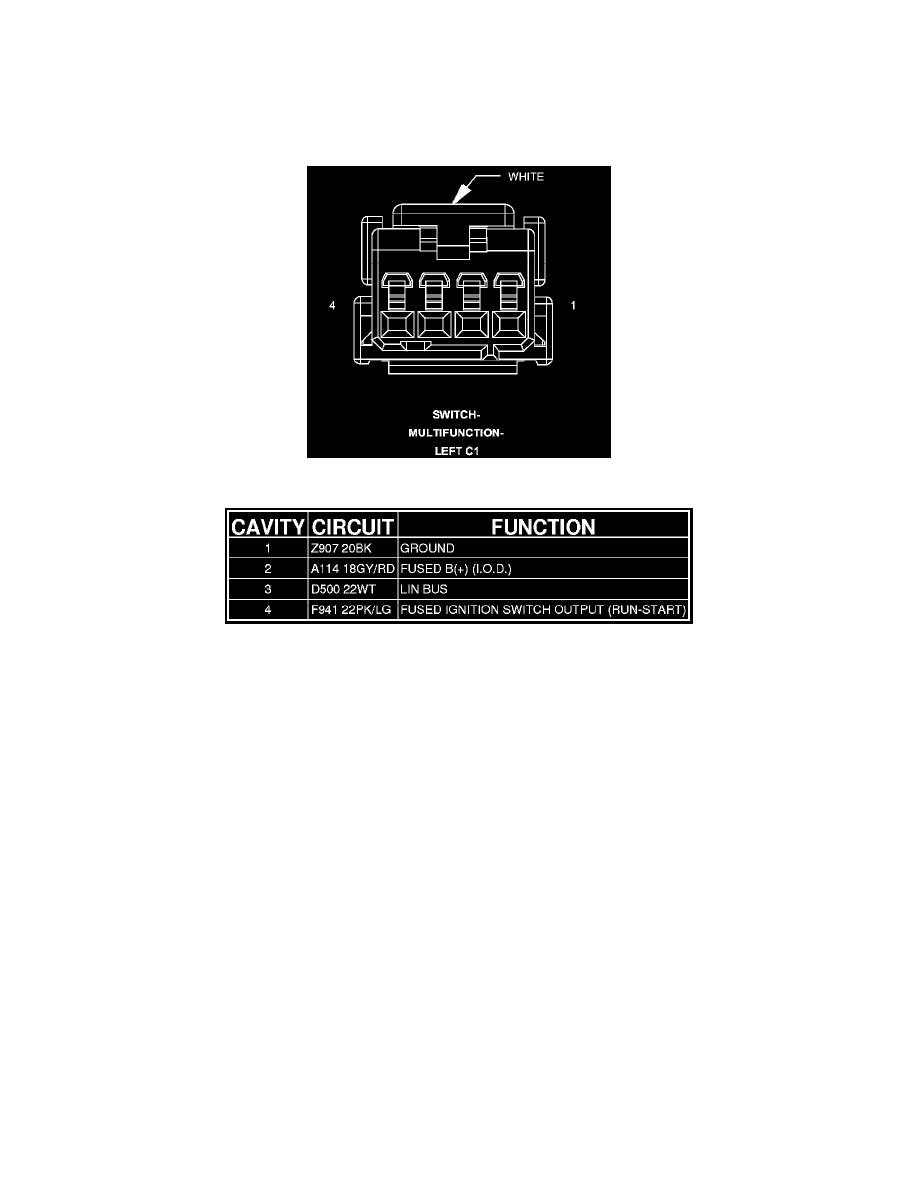

Left Multifunction Switch C1 (Instrument Panel) 4 Way

Connector C1 - (INSTRUMENT PANEL) 4 WAY



 SWITCH-MULTIFUNCTION-LEFT - (INSTRUMENT PANEL) 4 WAY
