Grand Cherokee 4WD V6-3.7L (2009)
Oil Pressure Switch (For Fuel Pump): Service and Repair
Oil Pressure Switch - Removal
REMOVAL
1. Disconnect the negative cable from the battery.
2. Raise vehicle on hoist.
3. Remove front splash shield.

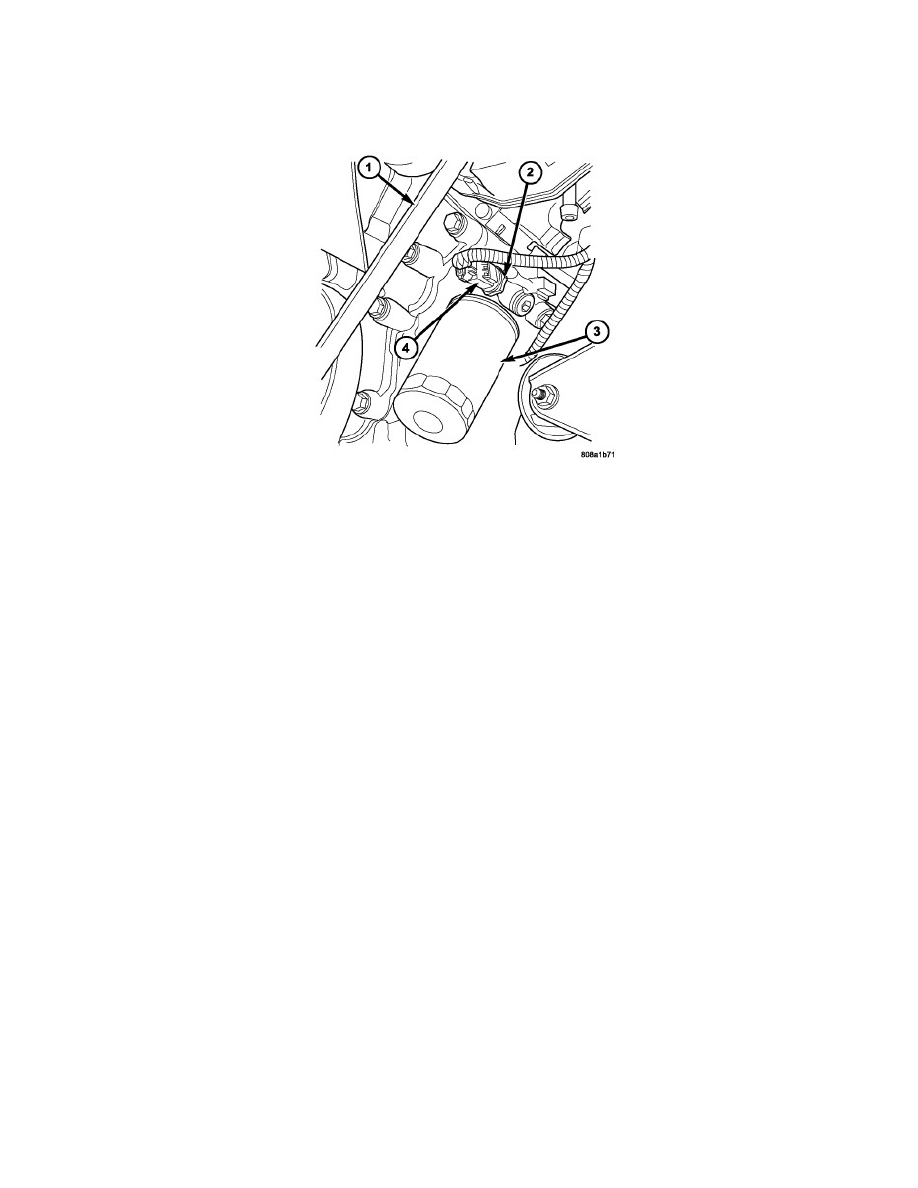

4. Disconnect oil pressure switch connector (4).
5. Remove the pressure switch (2).
