Grand Cherokee 4WD V6-3.7L (2009)
Transmission Speed Sensor: Description and Operation
Speed Sensor - Description
DESCRIPTION

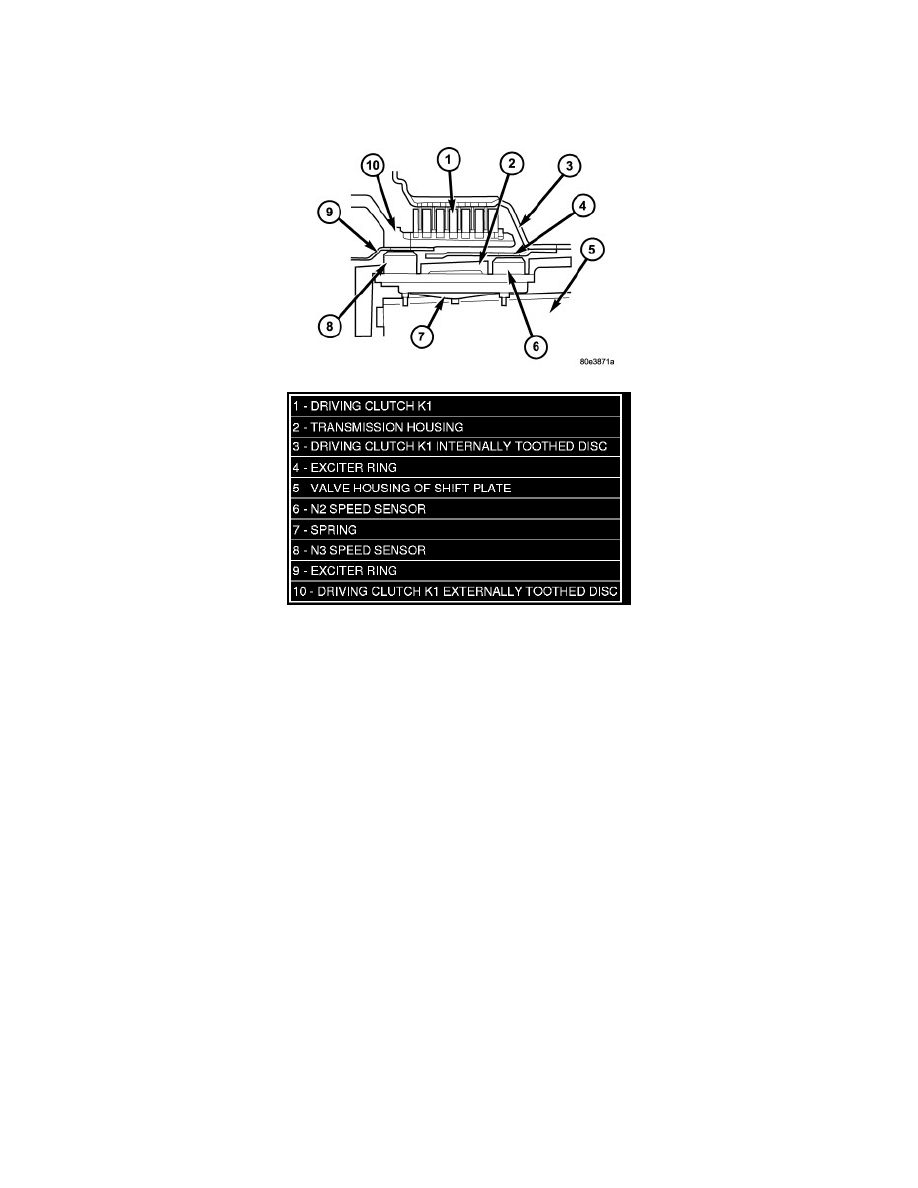

The speed sensors, N2 and N3, (6, 8) are fixed to the shell of the electrohydraulic control unit's lead frame via contact blades. The speed sensors are
pressed against the transmission housing (2) by a spring (7) which is held against the valve housing of the shift plate (5). This ensures a defined distance
between the speed sensors and the exciter ring (4).
