Grand Cherokee 4WD V6-3.7L (2009)
Transfer Case Actuator: Service and Repair
NV146 Transfer Case
Shift Motor - Removal
REMOVAL
1. Raise the vehicle on a suitable hoist.
2. Disengage the wiring connector from the shift motor.

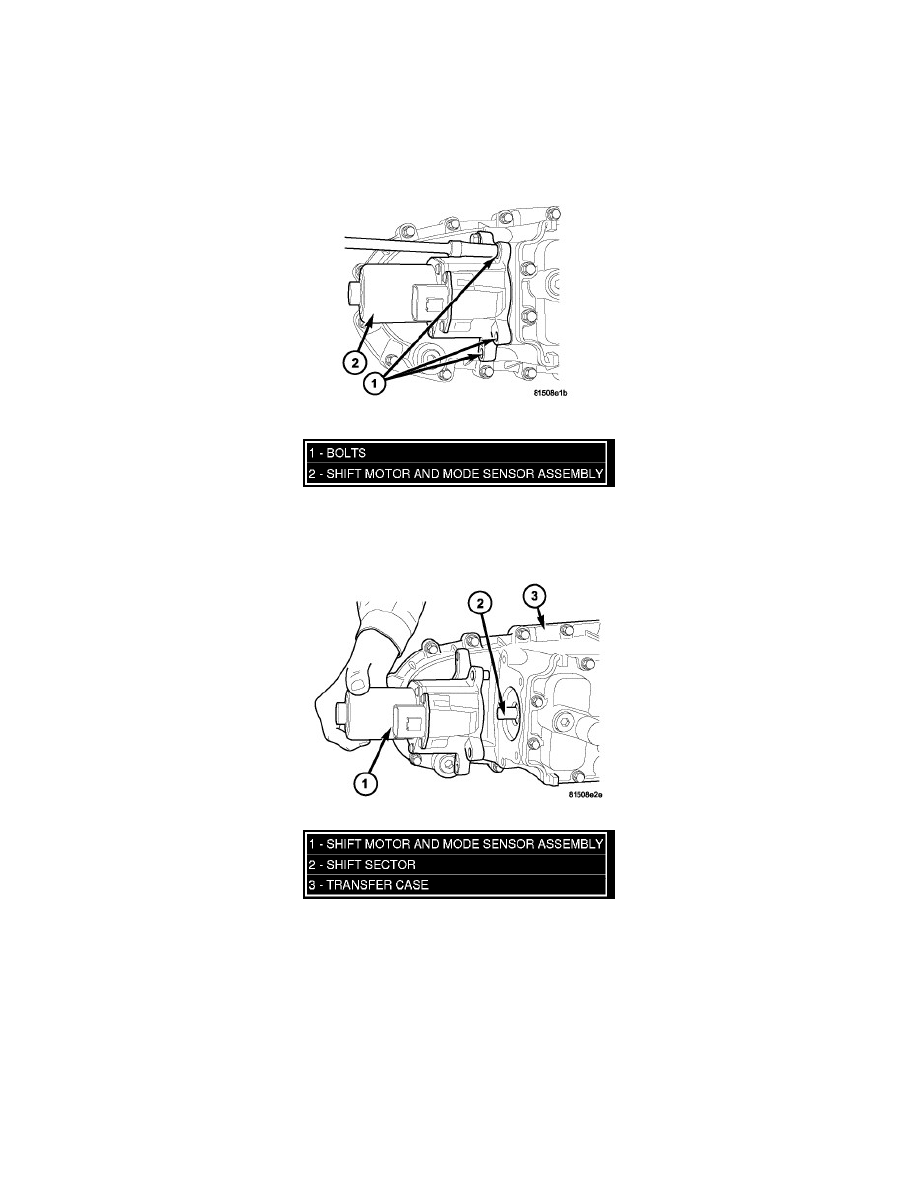

3. Remove the bolts (1) holding the shift motor (2) onto the transfer case.
4. Separate the shift motor (1) from the transfer case (3) and shift sector (2).
Shift Motor - Installation
INSTALLATION
