Grand Cherokee 4WD V6-3.7L (2009)
Headlamp Washer Spray Nozzle: Service and Repair
Headlamp Washer Nozzle - Removal
HEADLAMP
CAUTION: Take proper precautions to ensure there is no cosmetic damage done to the paint finish of the headlamp washer nozzle cover or
the front fascia during the following procedure.

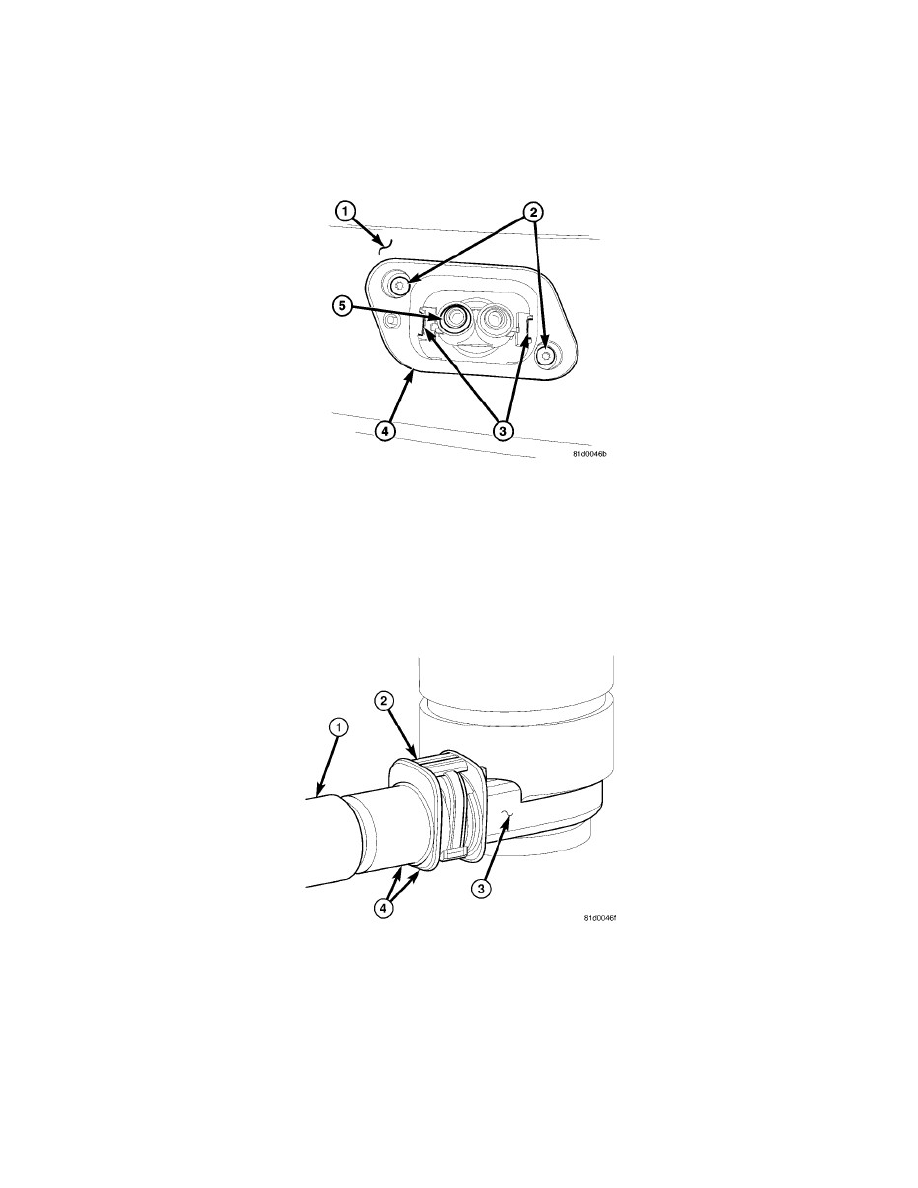

1. Reach up behind the front fascia (1) to access and securely clamp the headlamp washer supply hose to prevent the contents of the washer reservoir
from draining during the following procedure.
2. Using a trim stick or another suitable wide flat-bladed tool, carefully pry up an edge of the headlamp washer nozzle cover away from the front
fascia (1) far enough to grasp the cover and pull the telescopic nozzle (5) out to its fully extended position.
3. With the nozzle extended, unsnap the latch features on each side of the headlamp washer nozzle cover from the sides of the nozzle and remove the
cover. Then release the nozzle back to its retracted position.
4. Remove the two screws (2) that secure the headlamp washer nozzle mounting cup (4) to the nozzle mounting flange.
5. Pry outward on the two latch features (3) of the mounting cup to disengage them from the mounting flange of the nozzle.
6. Reach up behind the front fascia to access the headlamp washer nozzle and the washer nozzle supply hose (1) quick connect fitting (4).
7. Pull the molded plastic lock (2) away from the quick connect fitting far enough to disengage the hose from the washer nozzle nipple (3).
8. Remove the nozzle from behind the front fascia.
