Wiper Relay: Diagrams
Wiper High/Low Relay (In IPM)

Connector - (IN IPM)

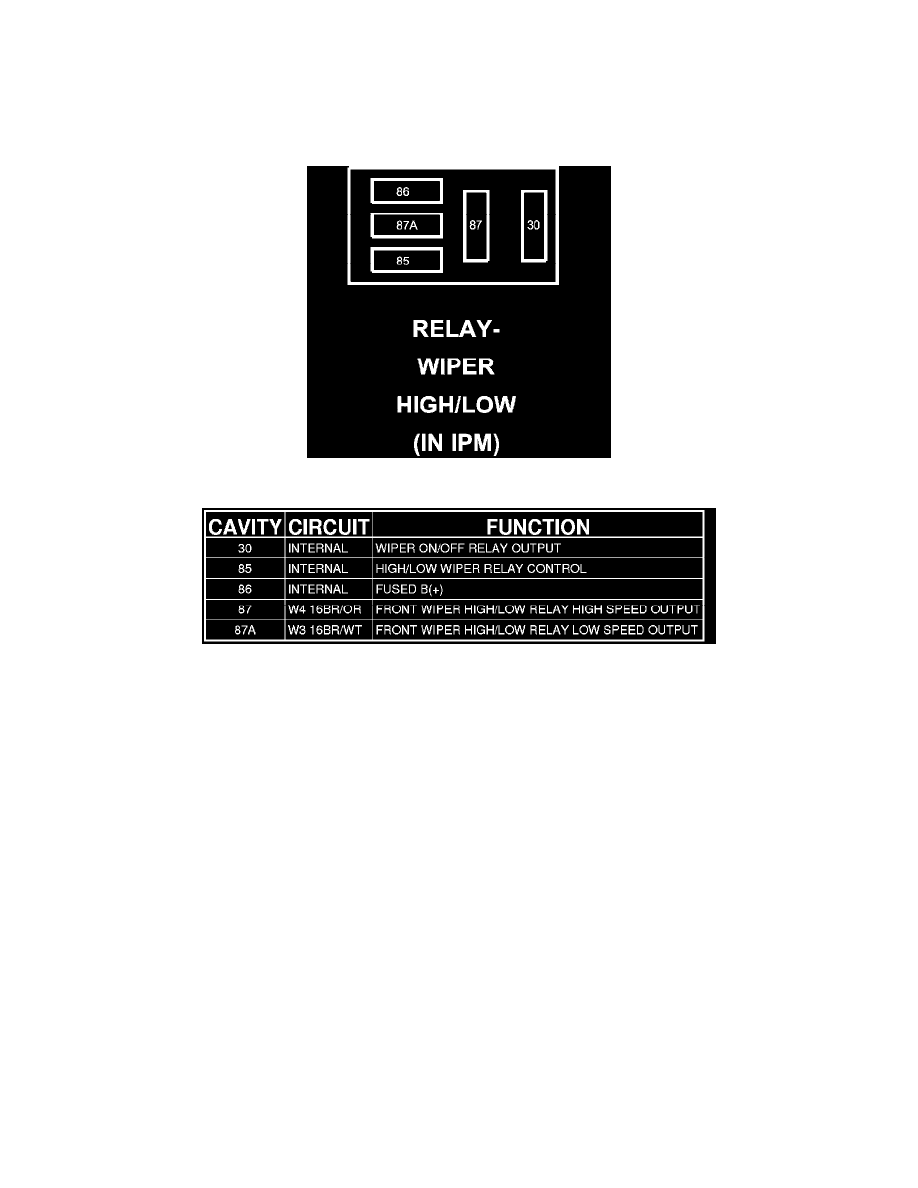

RELAY-WIPER HIGH/LOW - (IN IPM)
