Grand Cherokee 4WD V8-4.7L (2003)
Cowl Moulding / Trim: Service and Repair
COWL GRILLE
REMOVAL
1. Remove wiper arms.
2. Remove plenum seal.

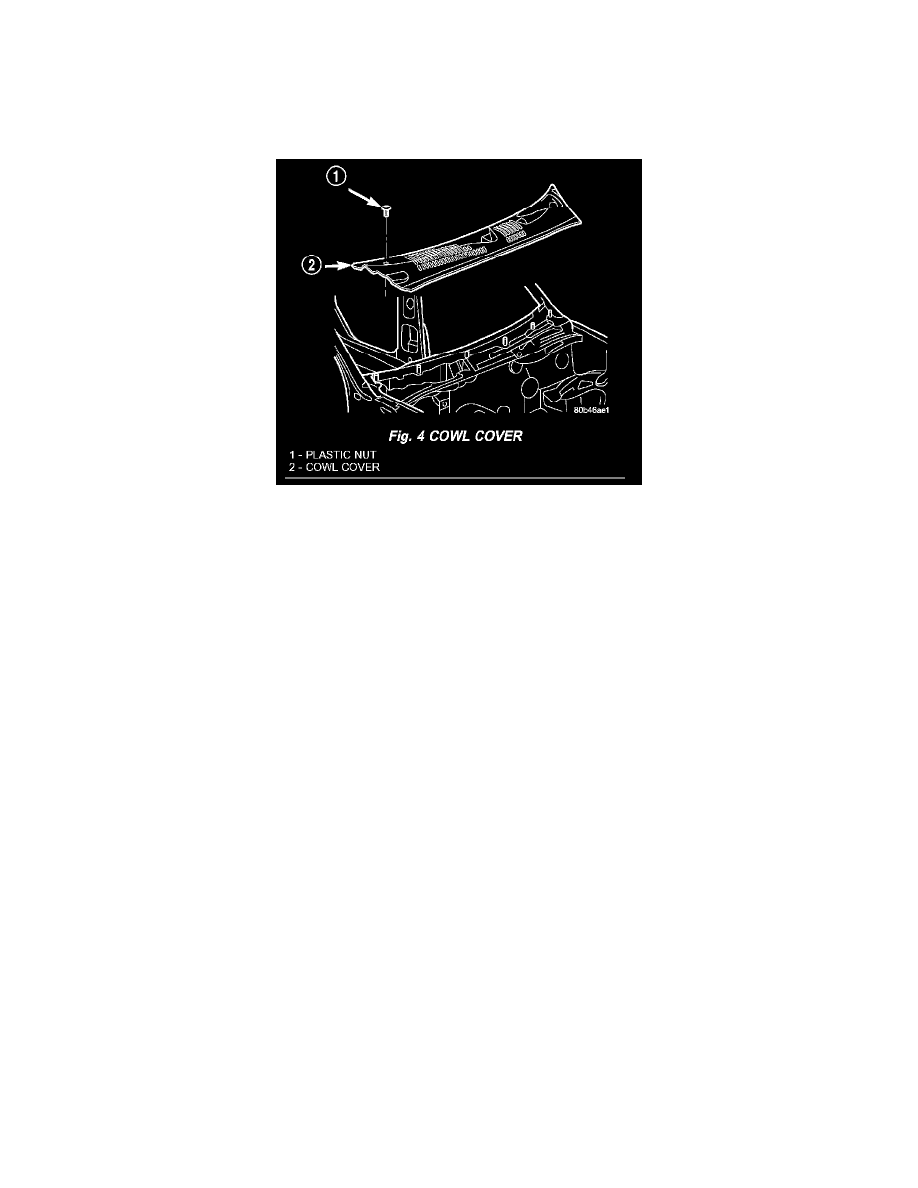

Fig. 4
3. Remove plastic push nuts attaching cowl cover to cowl (Fig. 4).
4. Remove windshield washer tubes at connector.
5. Remove cowl cover from cowl.
INSTALLATION
1. Position cowl cover on cowl.
2. Install windshield washer tubes at connector.
3. Install plastic push nuts attaching cowl cover to cowl (Fig. 4).
4. Install plenum seal.
5. Install windshield wiper arms.
