Component Locations|Page 3061 > < Component Locations|Page 3059

Grand Cherokee 4WD V8-4.7L (2003)

Page 1
background image

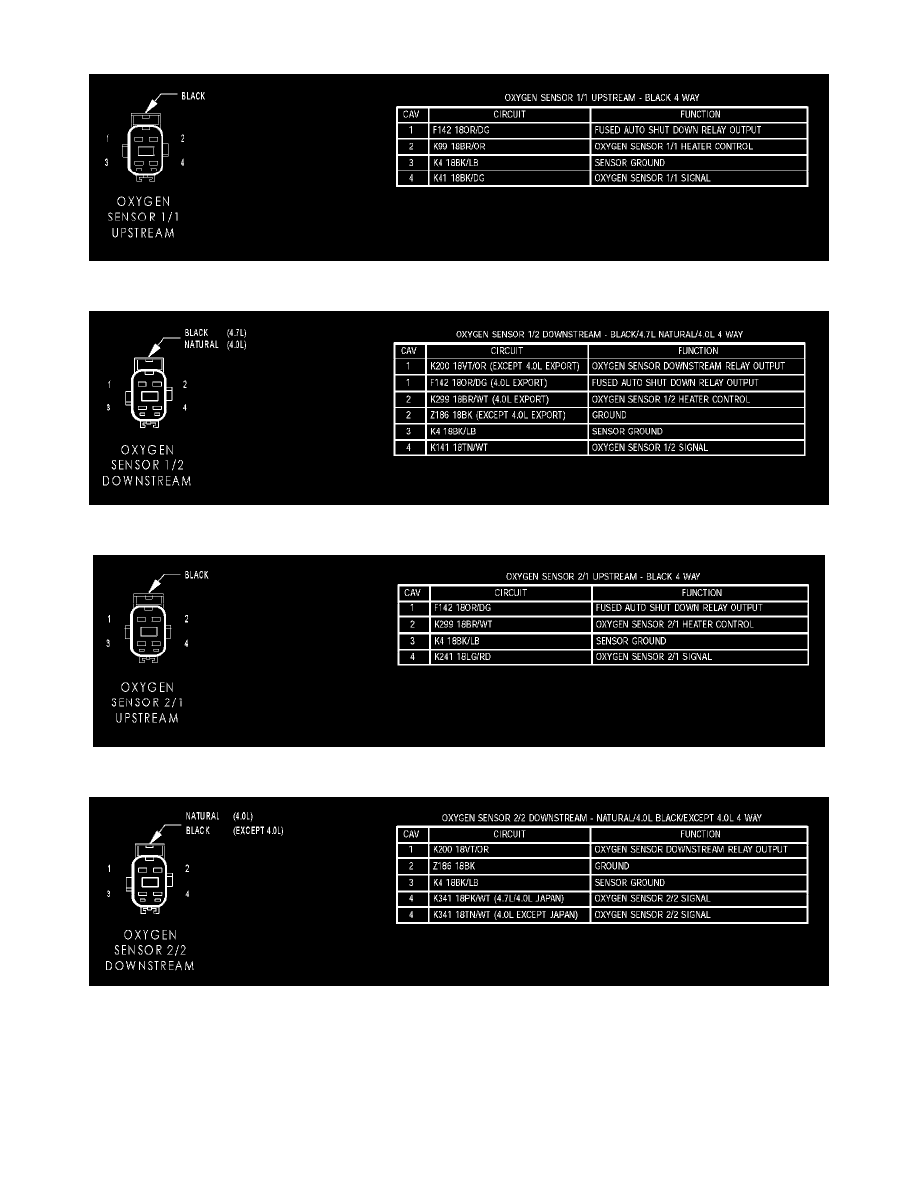

Oxygen Sensor: Diagrams

Oxygen Sensor 1/1 Upstream

Oxygen Sensor 1/2 Downstream

Oxygen Sensor 2/1 Upstream

Oxygen Sensor 2/2 Upstream
