Grand Cherokee 4WD V8-4.7L (2003)

Page 1
background image

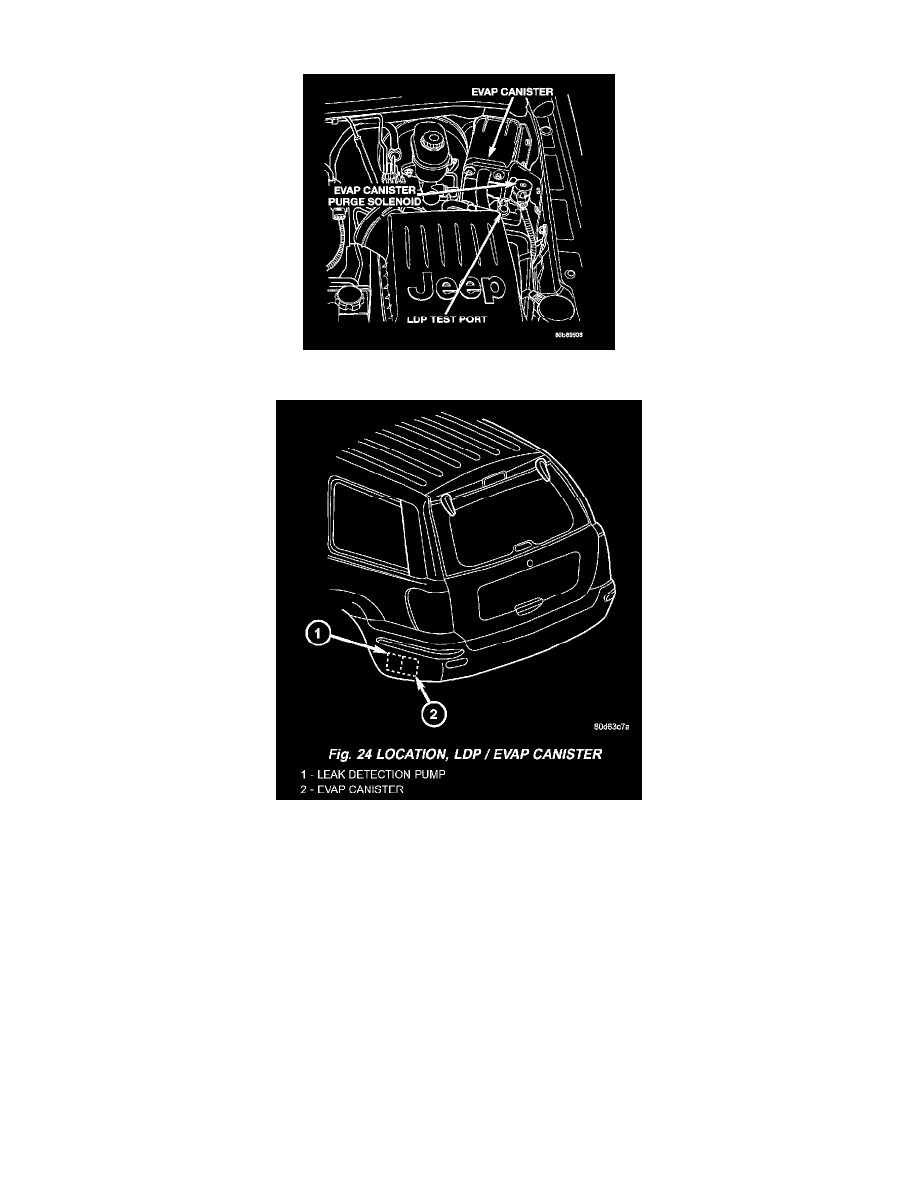

Evaporative Emission Control Canister: Locations

Evap Canister / Purge Solenoid / Test Port

Fig. 24 Location, LDP/EVAP Canister

The EVAP canister is located behind the left-rear wheel.
