Electrical Specifications|Page 3712 > < Electrical Specifications|Page 3710

Grand Cherokee 4WD V8-4.7L (2003)

Page 1
background image

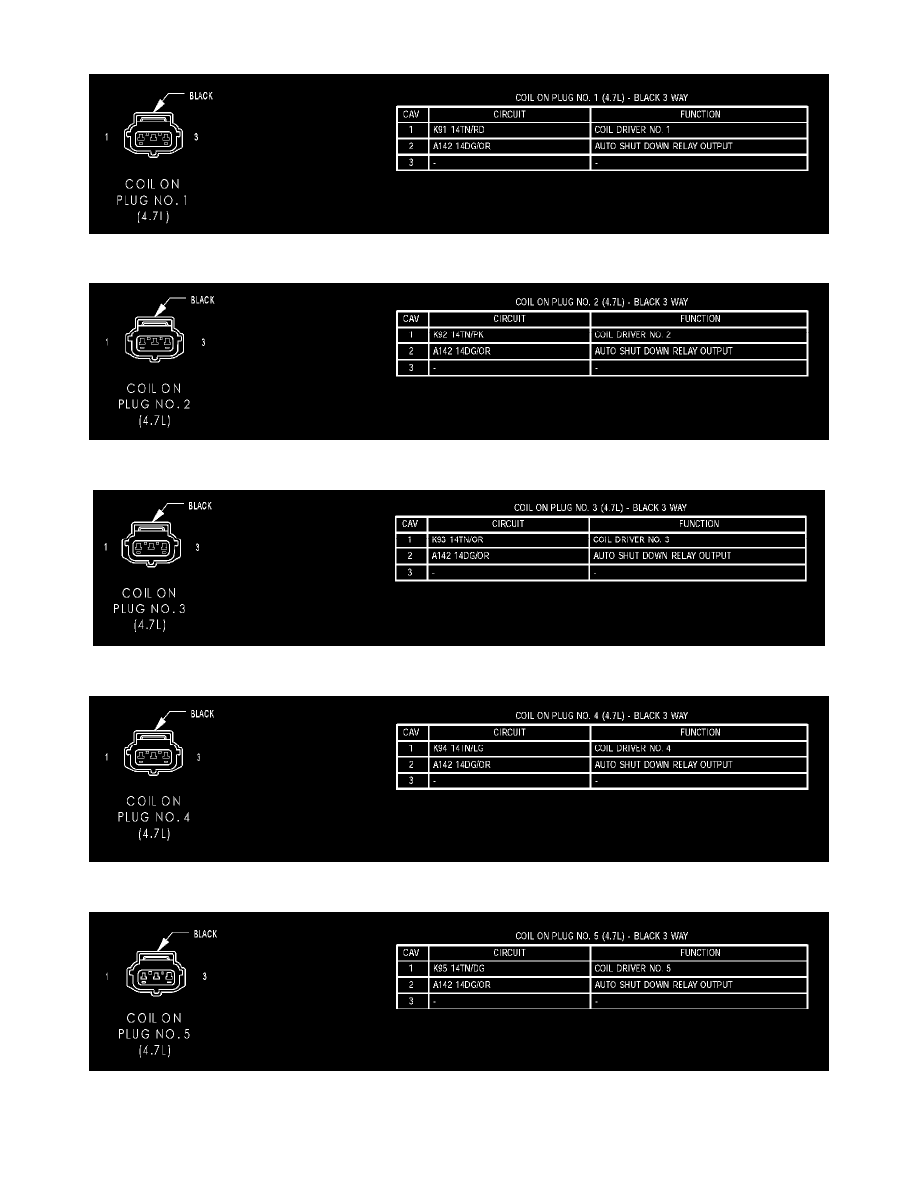

Ignition Coil: Diagrams

Coil On Plug No.1 (4.7L)

Coil On Plug No.2 (4.7L)

Coil On Plug No.3 (4.7L)

Coil On Plug No.4 (4.7L)

Coil On Plug No.5 (4.7L)

Electrical Specifications|Page 3712 > < Electrical Specifications|Page 3710
