Grand Cherokee 4WD V8-4.7L (2003)

Page 1
background image

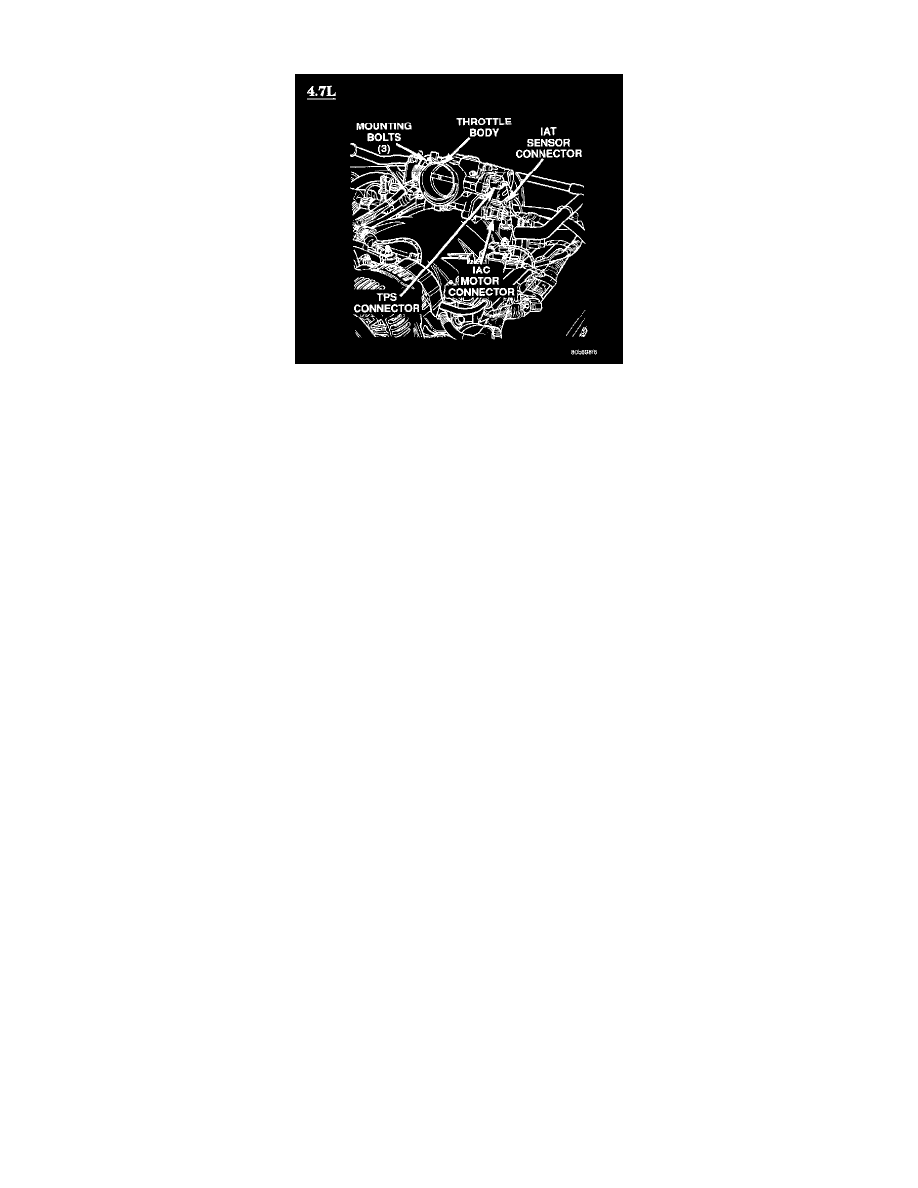

Intake Air Temperature (IAT) Sensor: Component Locations

4.7L

The 2-wire Intake Manifold Air Temperature (IAT) sensor is installed in the intake manifold with the sensor element extending into the air stream.
