Grand Cherokee 4WD V8-4.7L (2003)
Rear Door Window Glass Weatherstrip: Service and Repair
Rear Door Inner Belt Weatherstrip
RDR INNER BELT WEATHERSTRIP
REMOVAL
1. Remove door trim panel.
2. Using a trim stick, carefully pry rear inner edge of inner belt weatherstrip upward.

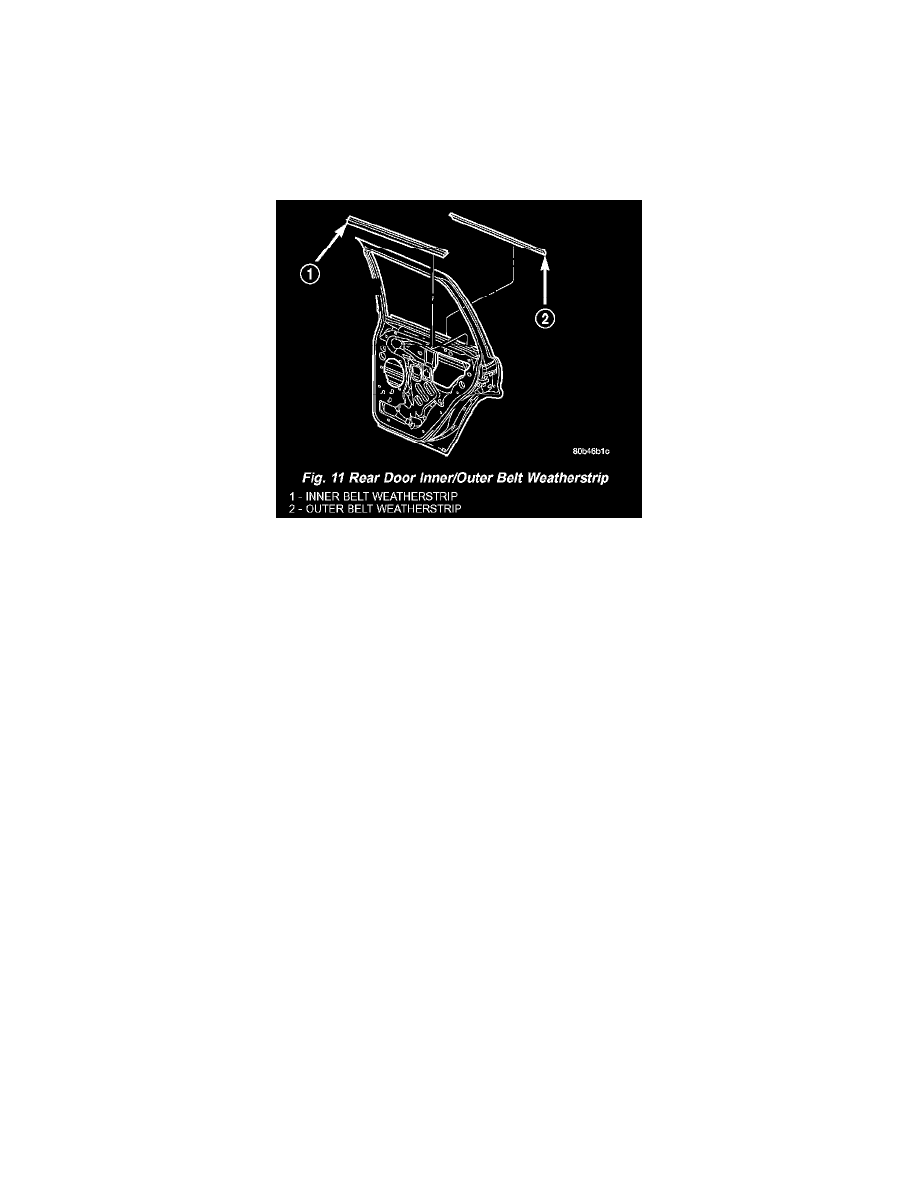

Fig. 11
3. Grasp weatherstrip and pull upward to separate from door flange (Fig. 11).
INSTALLATION
1. Position weatherstrip on door flange.
2. Firmly press downward to seat weatherstrip on flange.
3. Install trim panel.
