J-10 Truck L6-258 4.2L VIN C 2-bbl (1984)
Compressor Clutch: Service and Repair
Removal

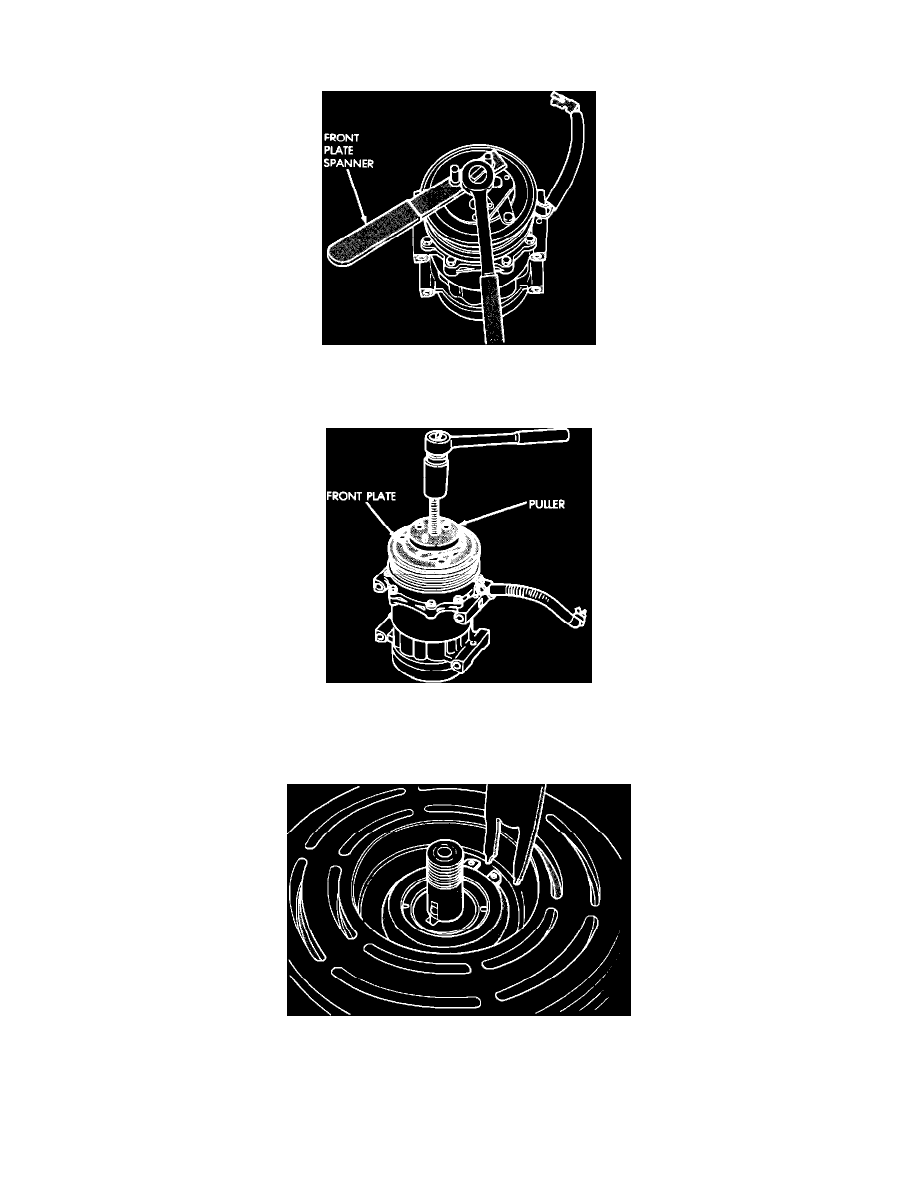

R & R Compressor Shaft Nut
1.
Remove the compressor shaft nut.
Remove Compressor Clutch Plate
2.
Remove clutch front plate using a suitable puller.
3.
Remove the compressor shaft key and shims.
R & R Snap Ring
4.
Remove the external pulley retaining snap ring. Remove the internal bearing snap ring (f equipped).
