J-10 Truck L6-258 4.2L VIN C 2-bbl (1984)

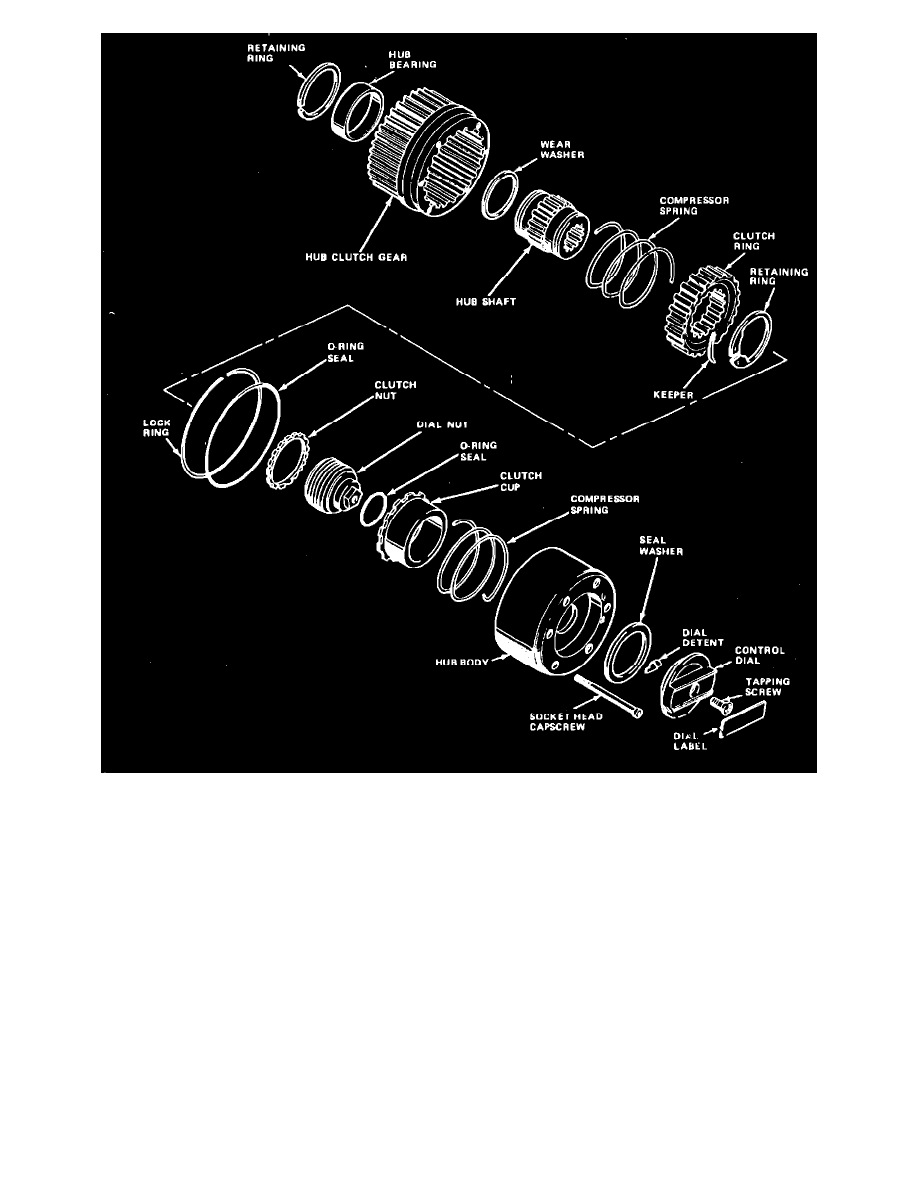

Fig. 10 Front drive hub model M247. Cherokee, Wagoneer, Grand Wagoneer & all truck models
MODEL M247
1. Remove socket head screws, axle hub retaining ring and axle shaft retaining ring.
2. Remove hub clutch assembly.
3. Clean and inspect all components for wear or damage. Replace as necessary.
4. Apply a light coat of suitable lubricant to all hub components.
5. Install hub clutch, axle hub retaining ring and axle shaft retaining ring.
6. Install new O-ring into hub body and position into clutch. Install socket head screw and torque to 30 inch lbs.
7. Raise and support front of vehicle, turn dial to free position and rotate wheels. If wheels drag, check hub for correct installation.
8. Lower vehicle.
