Liberty 2WD L4-2.4L VIN 1 (2005)
Rear Door Panel: Procedures
CAUTION:
-
Do not allow the waterdam or adhesive to become contaminated with dirt or other foreign substances.
-
Do not damage the waterdam during removal and installation.
-
If the waterdam becomes contaminated or damaged, replace the waterdam.
REMOVAL
1. Remove the door speaker.

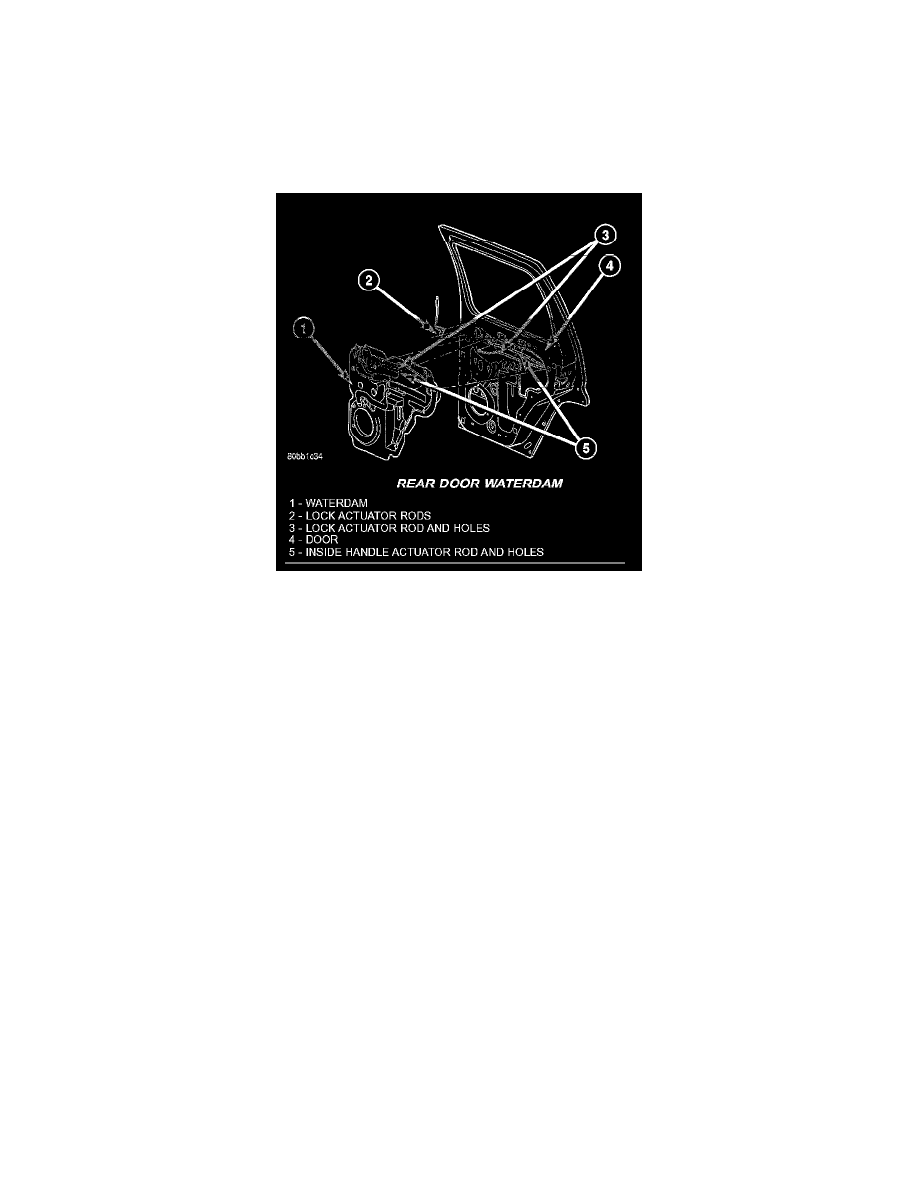

Rear Door Waterdam
2. Separate the waterdam from the inner door panel and off of the latch linkages.
INSTALLATION
Do not damage the waterdam during removal and installation.
If the waterdam becomes contaminated or damaged, replace the waterdam.
1. Position the actuator rods through the holes in the waterdam.
2. Place waterdam onto the door and pressurize at the butyl bead to seal completely, starting with the top rear locating indent and then moving to the
top front locating indent followed by the remaining portion of the waterdam
3. Run a hard plastic squeegee firmly around the perimeter of the waterdam making sure that the drain holes at the bottom of the inner door panel are
fully covered by the waterdam.
4. Install the speaker.
