Liberty 2WD L4-2.4L VIN 1 (2005)
Engine Mount: Service and Repair
Front Mount
FRONT MOUNT
REMOVAL
1. Raise vehicle on hoist.
2. Remove the front engine mount through bolt from the insulator.
3. Remove the engine front mount bolts and remove the insulator assembly.
4. Remove the front mounting bracket from engine, if necessary.
INSTALLATION

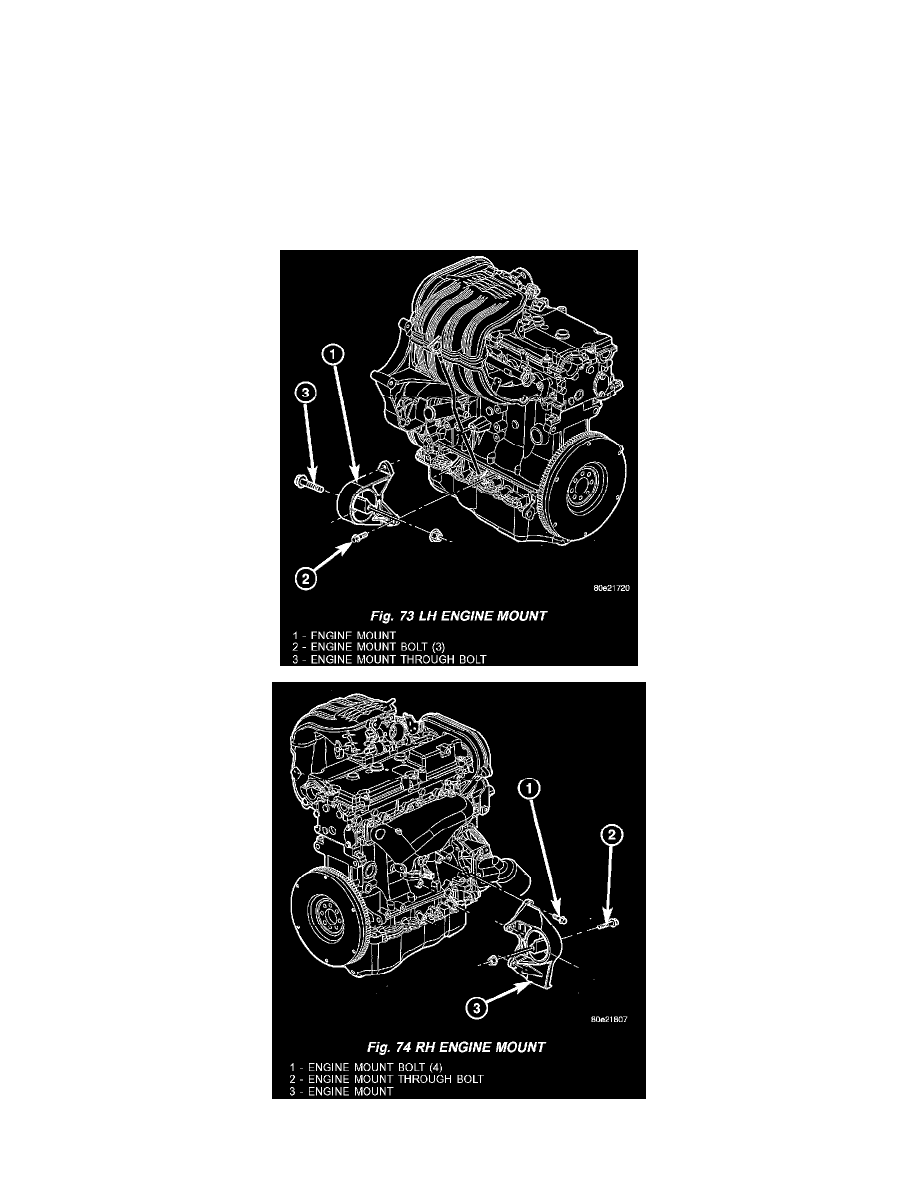

1. Install the insulator mount assembly (Fig. 73) and (Fig. 74).
2. Tighten the mount to engine bolts.
