Liberty 2WD L4-2.4L VIN 1 (2005)
Air Duct: Procedures
Air Outlets
REMOVAL
NOTE: The instrument panel air outlet barrels are retained onto the pivots located in the outlet housing by a light snap fit.

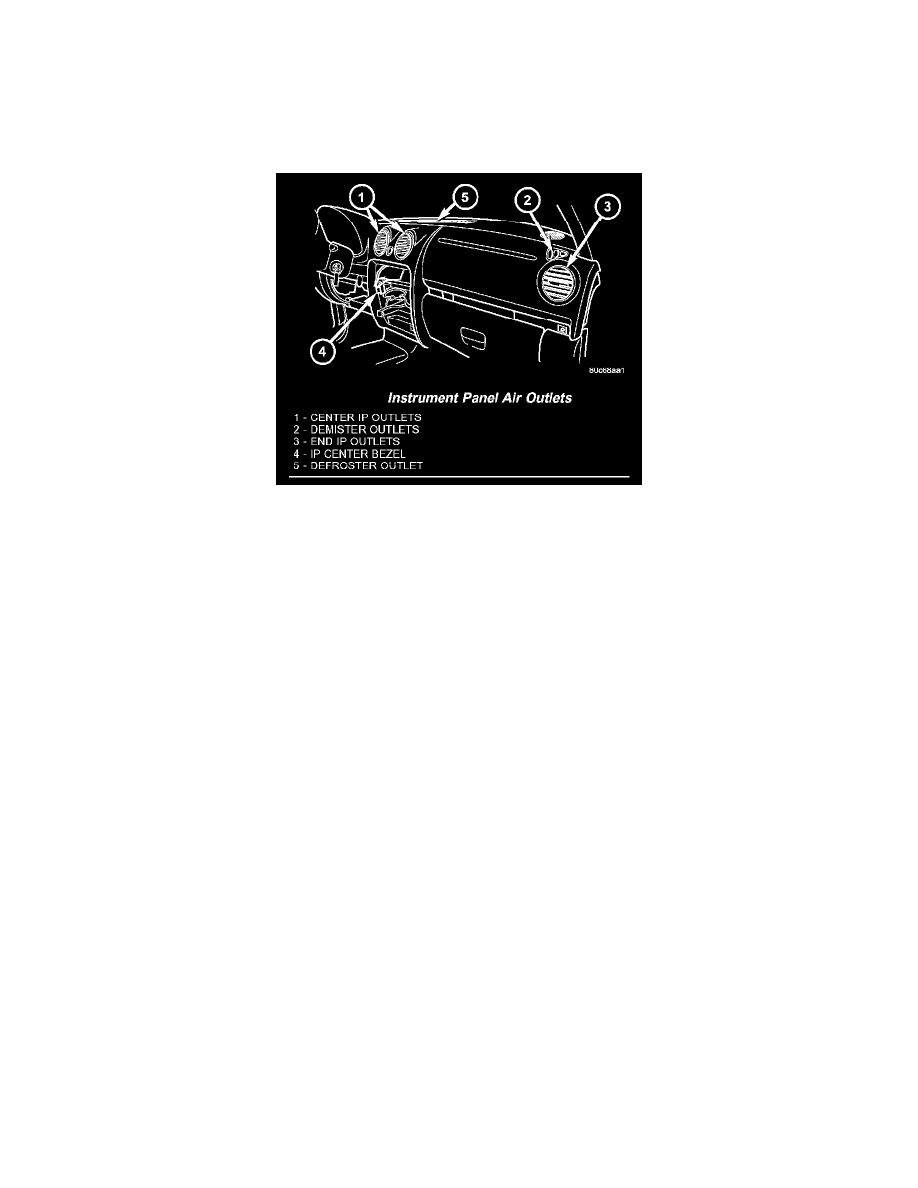

Instrument Panel Air Outlets
1. Using a trim stick C-4755 or equivalent, gently pry on the panel air outlet barrel(s) until the barrel retainers release from the barrel pivots of the air
outlet housing.
2. Remove the barrel(s) from the outlet(s). If needed, use a trim stick.
INSTALLATION
CAUTION: The instrument panel air outlet barrels can only be installed in one direction. If the air outlet barrel is not properly oriented prior to
installation, damage to the air outlet barrel will occur.
NOTE: Each air outlet barrel is retained into the air outlet housing by two pivot shafts. One pivot shaft is larger than the other. The air outlet barrel
must be first installed onto the larger pivot shaft, then snapped into place over the smaller pivot shaft.
1. Install the air outlet barrel onto the larger pivot shaft located in the instrument panel outlet.
2. Gently push the air outlet barrel onto the smaller pivot shaft of the air outlet until it snaps into position.
Rear Floor Heat Duct
REMOVAL
1. Remove the floor console.
