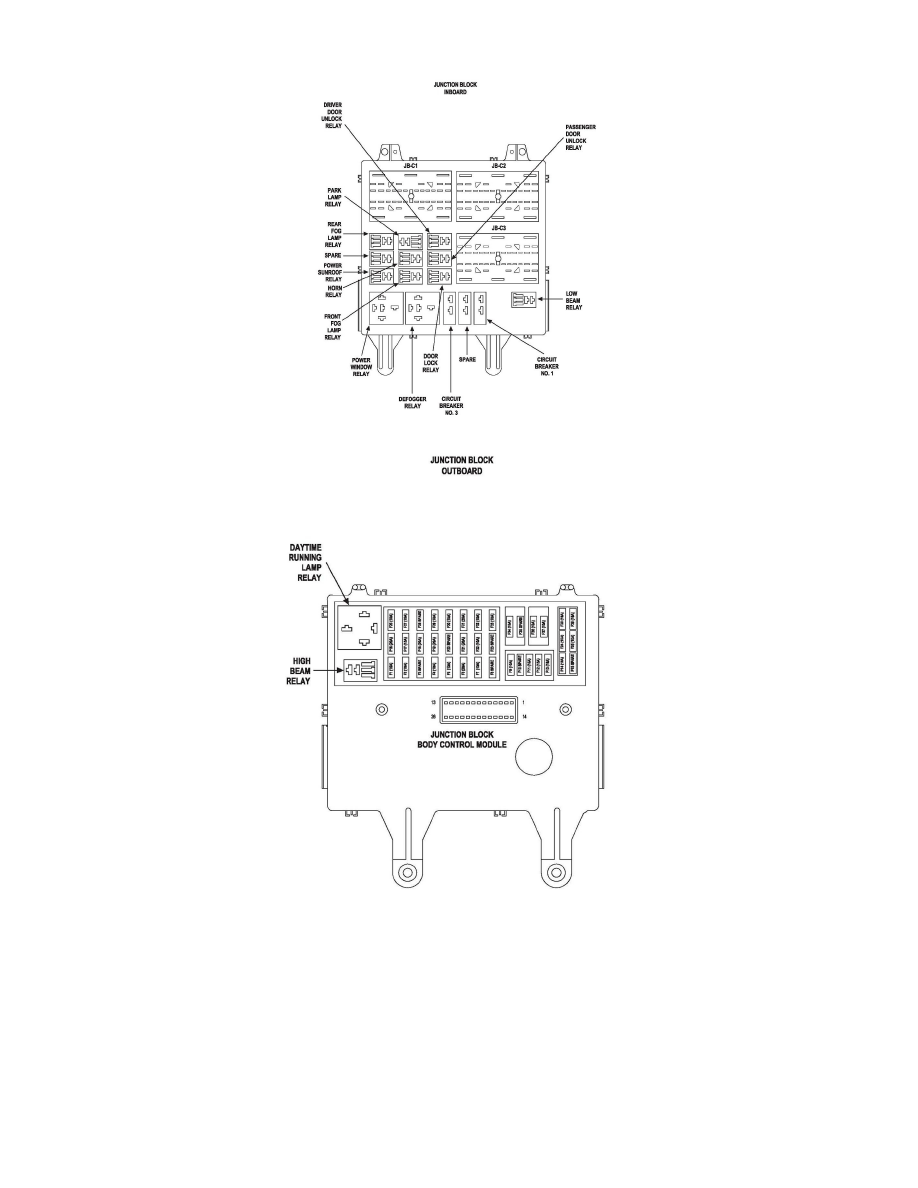

Daytime Running Lamp Relay: Locations

Daytime Running Lamp (DRL) Relay is located in the junction box.
