Liberty 2WD L4-2.4L VIN 1 (2005)

Page 1
background image

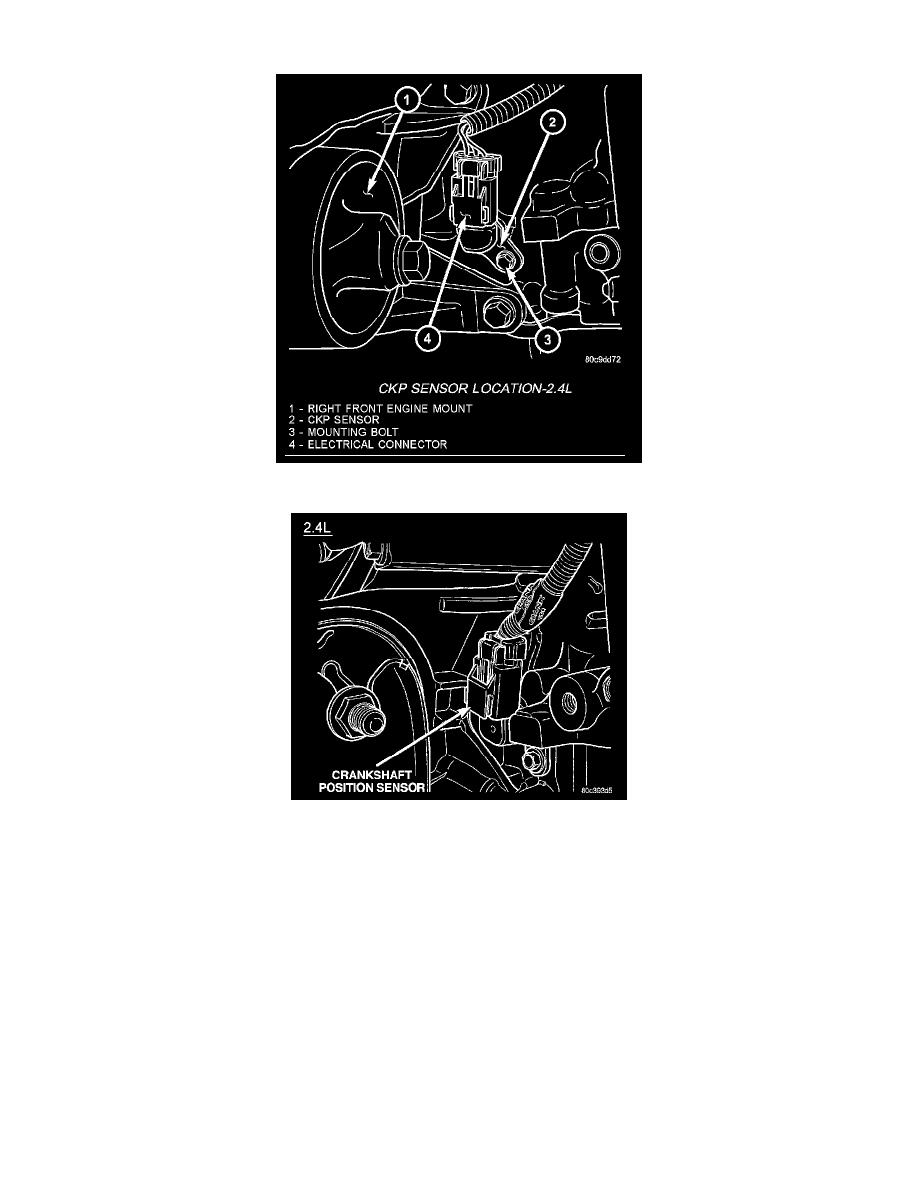

Crankshaft Position Sensor: Component Locations

CKP Sensor Location-2.4L

2.4L

The crankshaft position sensor (CKP) is mounted in to the right front side of the cylinder block.
