Liberty 2WD L4-2.4L VIN 1 (2005)

Page 1
background image

Idle Speed/Throttle Actuator - Electronic: Locations

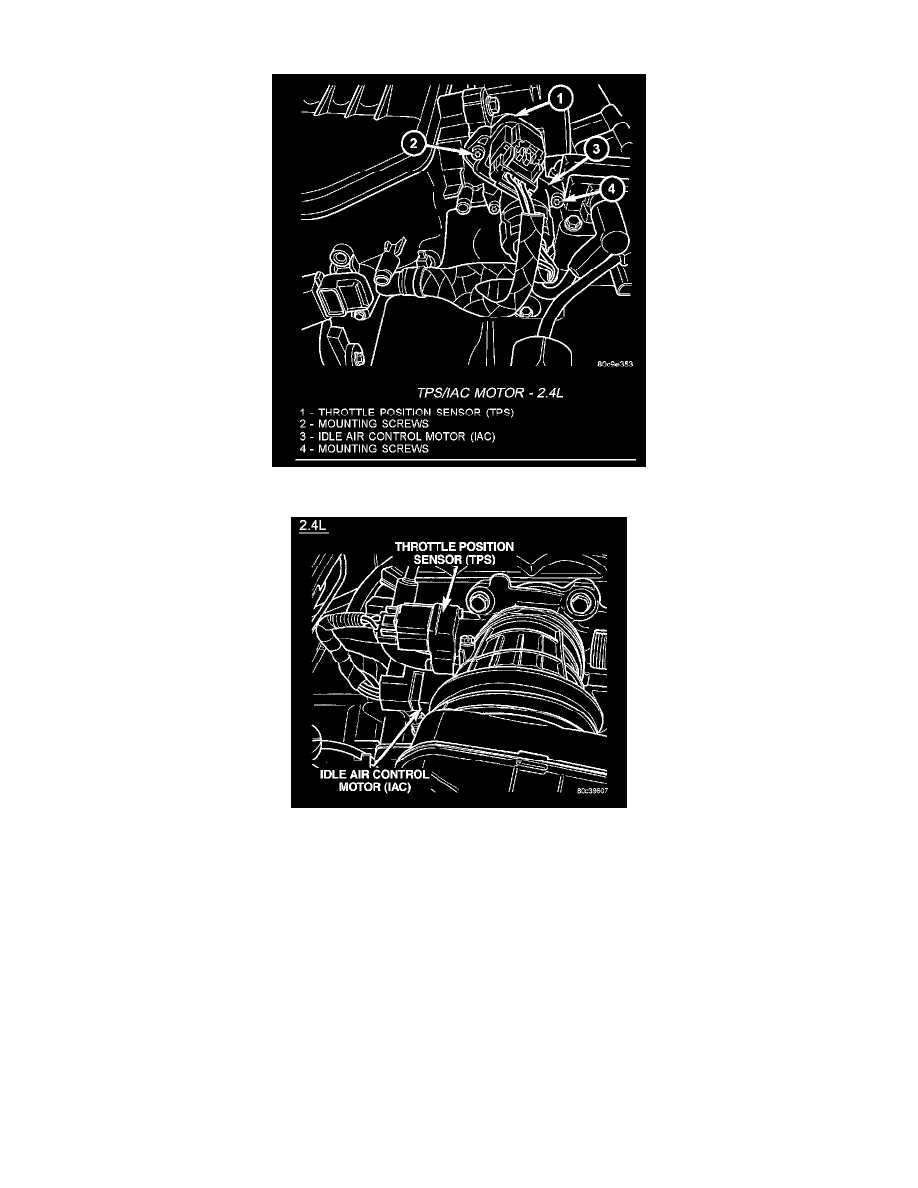

TPS/IAC Motor - 2.4L

2.4L

The Idle Air Control (IAC) motor is located on the rear side of the throttle body.
