Liberty 2WD L4-2.4L VIN 1 (2005)

Page 1
background image

Main Relay (Computer/Fuel System): Locations

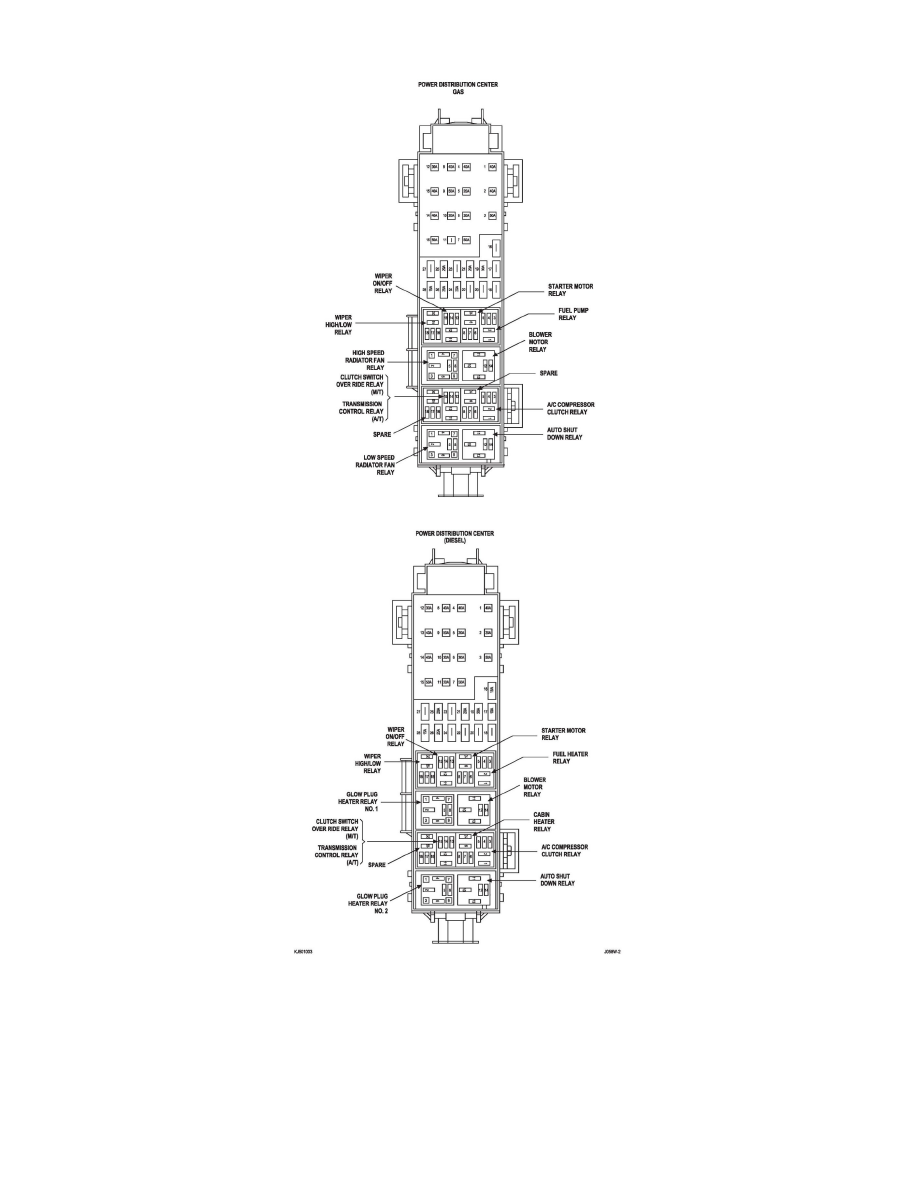

Auto Shut Down Relay is located in the Power Distribution Center (PDC).
