Engine Control Module: Connector Views

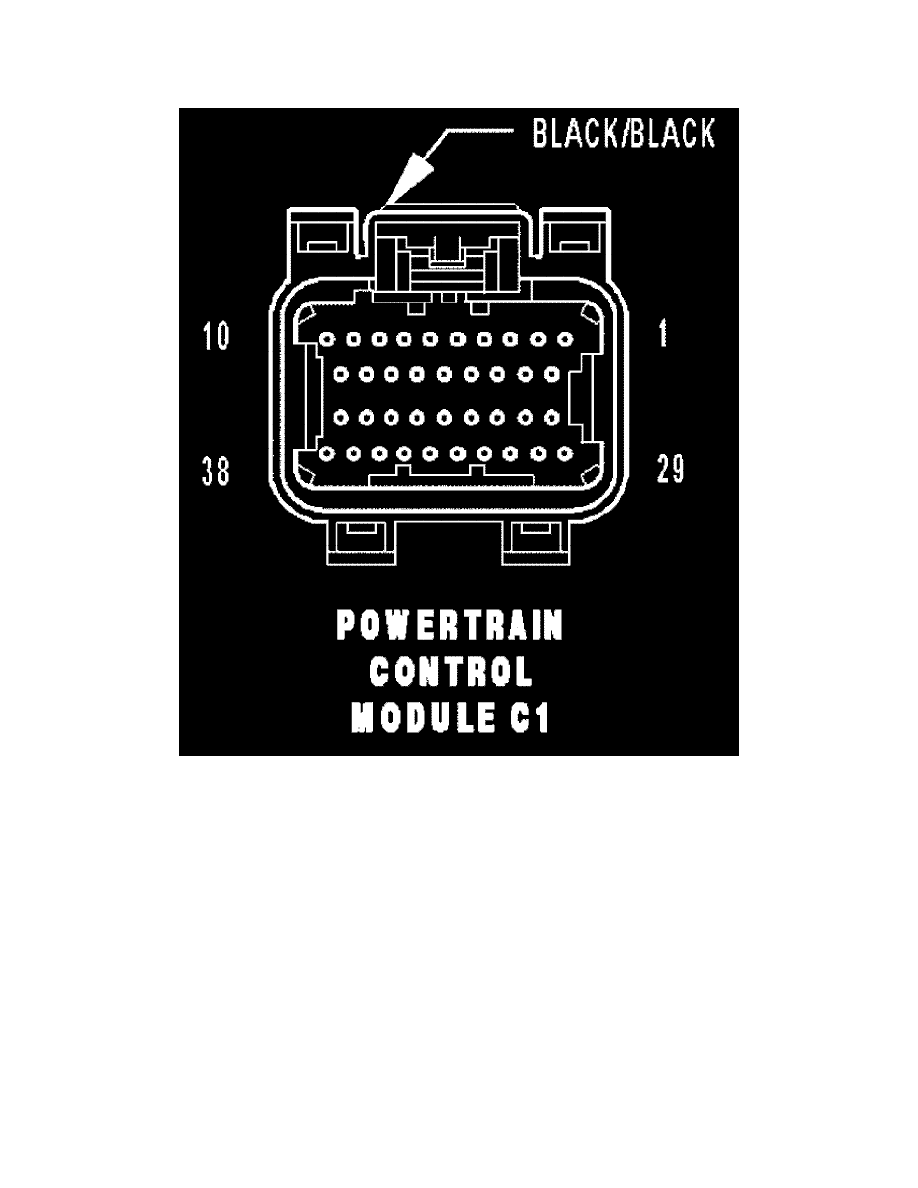

Powertrain Control Module C1

Powertrain Management
Relays and Modules - Powertrain Management / Relays and Modules - Computers and Control Systems
Engine Control Module / Component Information
Diagrams
Connector Views
