Liberty 2WD L4-2.4L VIN 1 (2005)

Page 1
background image

Intake Air Temperature Sensor: Locations

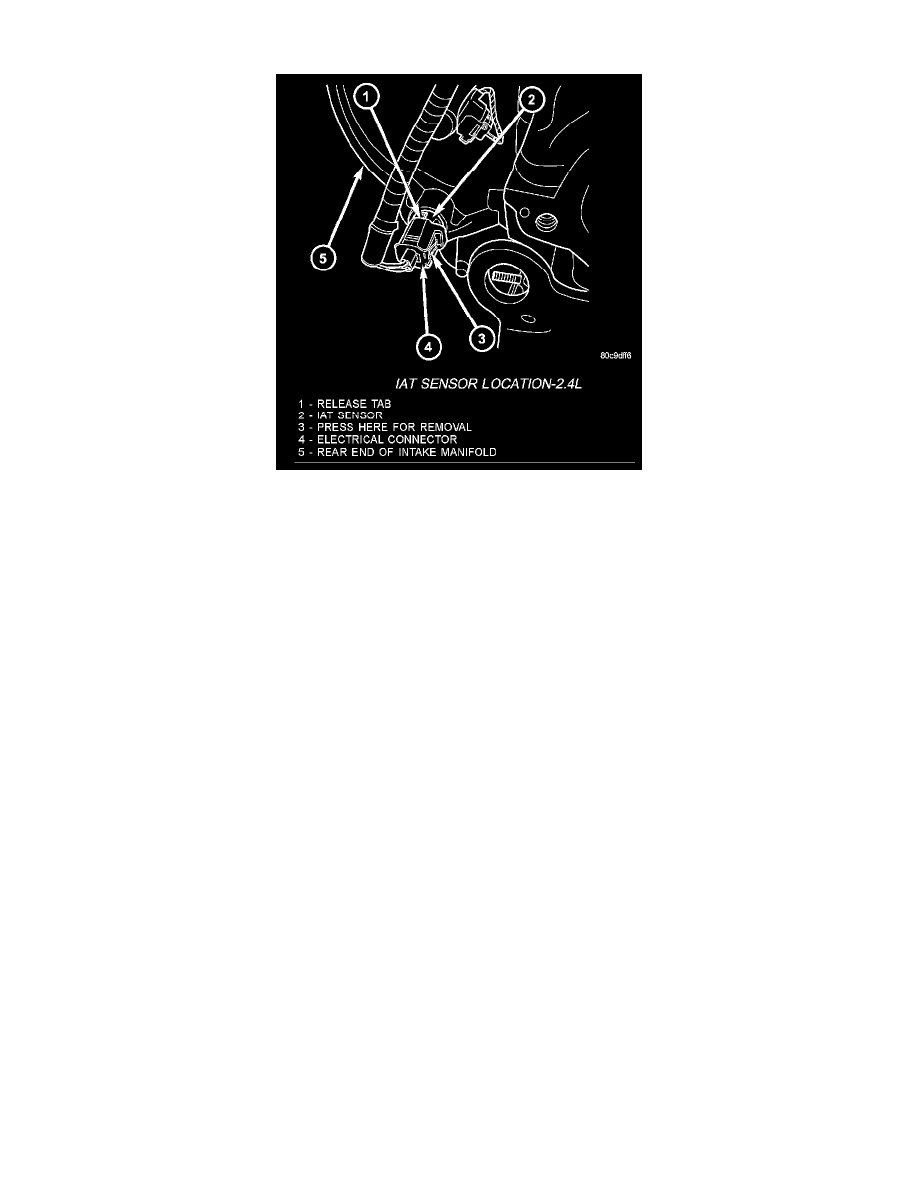

IAT Sensor Location-2.4L

The intake manifold air temperature (IAT) sensor is installed into the intake manifold plenum at the rear end of the intake manifold.
