Liberty 2WD L4-2.4L VIN 1 (2005)
Seat Heater Switch: Testing and Inspection
Driver Heated Seat Switch
If a heated seat fails to heat and one or both of the indicator lamps on a heated seat switch flash, refer to Heated Seat System Diagnosis and Testing for
flashing LED failure identification. Refer to Wiring Diagrams for complete heated seat system wiring diagrams.
1. If the problem being diagnosed involves a heated seat switch indicator lamp that remains illuminated after the heated seat has been turned Off,
refer to Diagnosis and Testing the Heated Seat Module in the Electronic Control Modules for heated seat module diagnosis and testing procedures.
If not, go to Step 2
2. Remove the heated seat switch. Check for continuity between the ground circuit cavity #5 of the heated seat switch connector and a good ground.
There should be continuity. If OK, go to Step 3. If not OK, repair the open ground circuit as required.
3. Turn the ignition switch to the ON position. Check for battery voltage at the fused ignition switch output circuit cavity #1 of the heated seat switch
connector. If OK, go to Step 4. If not OK, repair the open fused ignition switch output circuit as required.

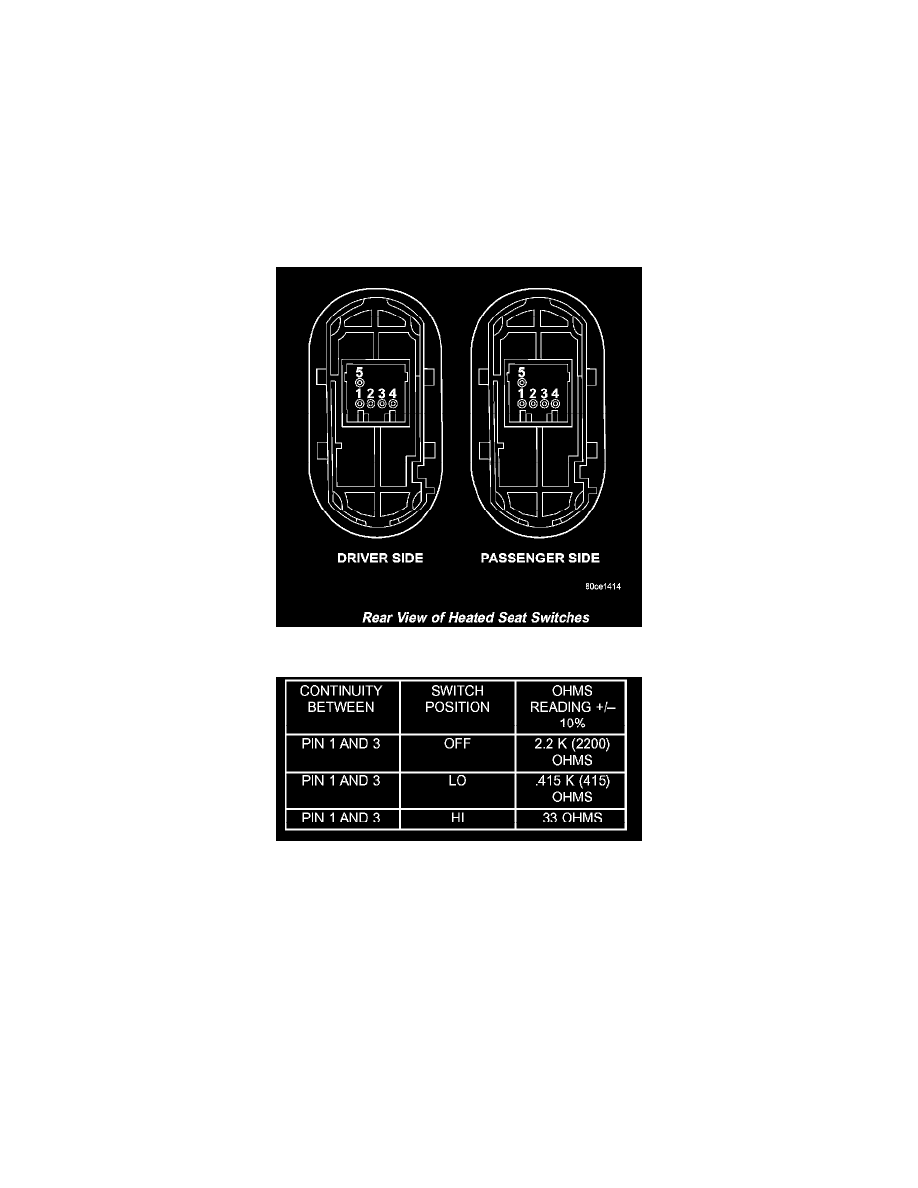

Rear View Of Heated Switches
Testing Heated Seat Switch Continuity
4. Check the continuity between pin #1 and pin #3 of the heated seat switch. If the readings do not correspond to those in the Heated Seat Switch
Continuity table below, replace the heated seat switch. If OK, and the heated seat system is still not operating properly refer to Diagnosis and
Testing the Heated Seat Module.
NOTE: Any resistance values (ohms) given in the following text are supplied using the automatic range generated by a fluke(R) automotive
meter. If another type of measuring device is used, the values generated may not be the same as the results shown here, or may have to be
converted to the range used here.
