Liberty 2WD L4-2.4L VIN 1 (2005)
Seals and Gaskets: Service and Repair
Seal - Axle Shaft
SEAL-AXLE SHAFT
REMOVAL
1. Remove axle shaft.

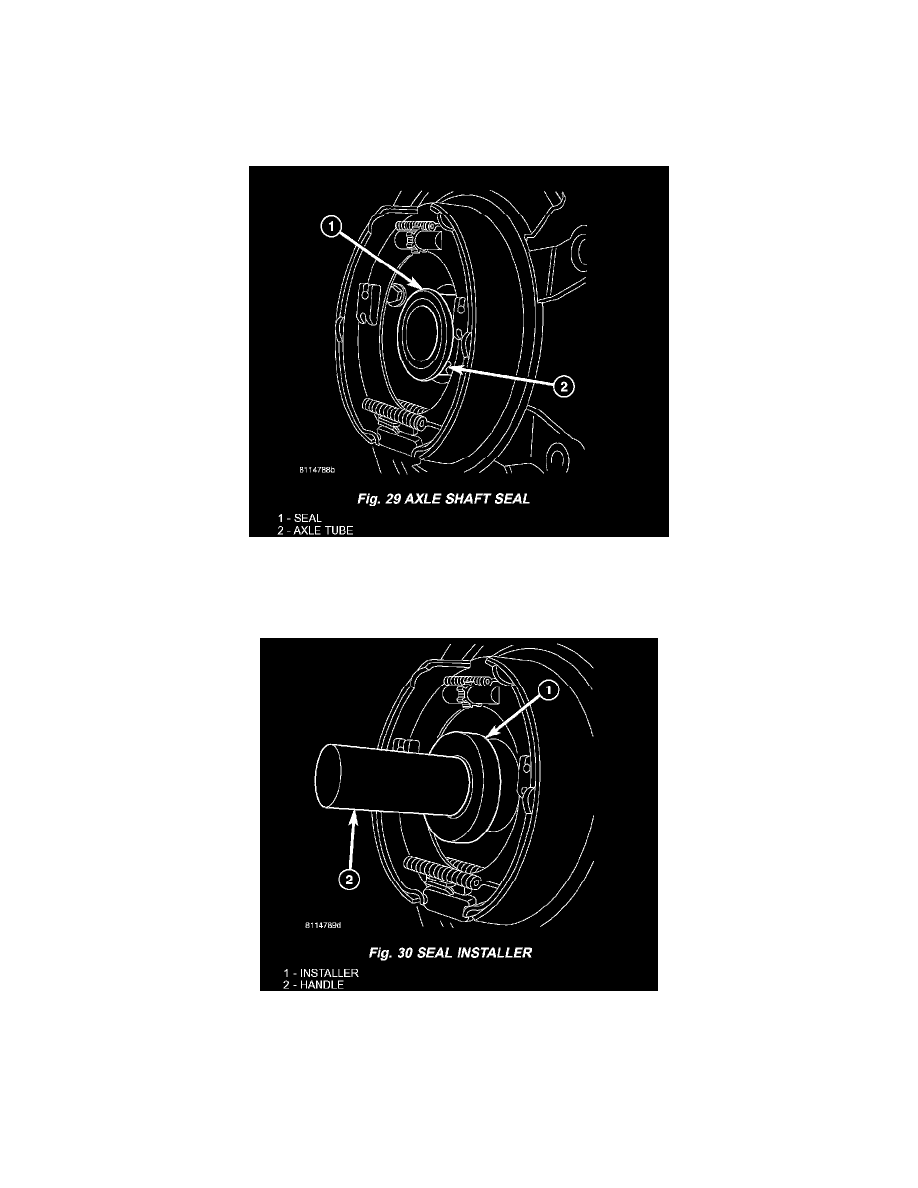

2. Remove axle shaft seal (1) from axle tube (2) with a seal pick (Fig. 29).
INSTALLATION
1. Remove any old sealer/burrs from axle tube.
2. Coat new seal lip with axle lubricant and install seal with Installer C-4198 (1) and Handle C-4171 (1) (Fig. 30).
3. Install axle shaft.
