Liberty 2WD L4-2.4L VIN 1 (2005)
Axle Bearing: Service and Repair
BEARING AXLE
REMOVAL
NOTE: Remove bearing with Bearing Remover 6310 and Foot 6310-9.
1. Remove axle shaft.
2. Remove axle seal with seal pick.

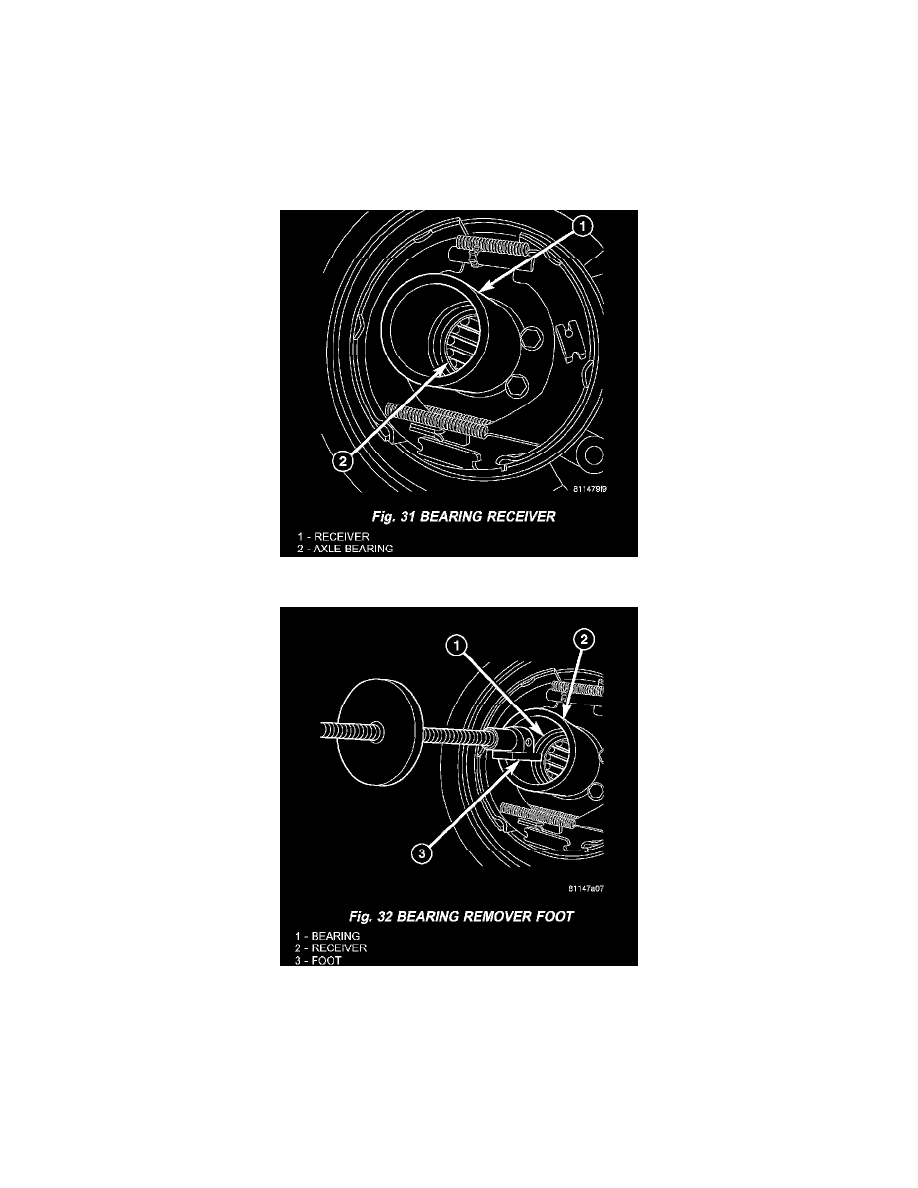

3. Position bearing (2) receiver (1) on axle tube (Fig. 31).
4. Insert bearing remover foot (3) through receiver (2) and bearing (1) (Fig. 32).
