Liberty 2WD L4-2.4L VIN 1 (2005)
Shift Indicator: Description and Operation

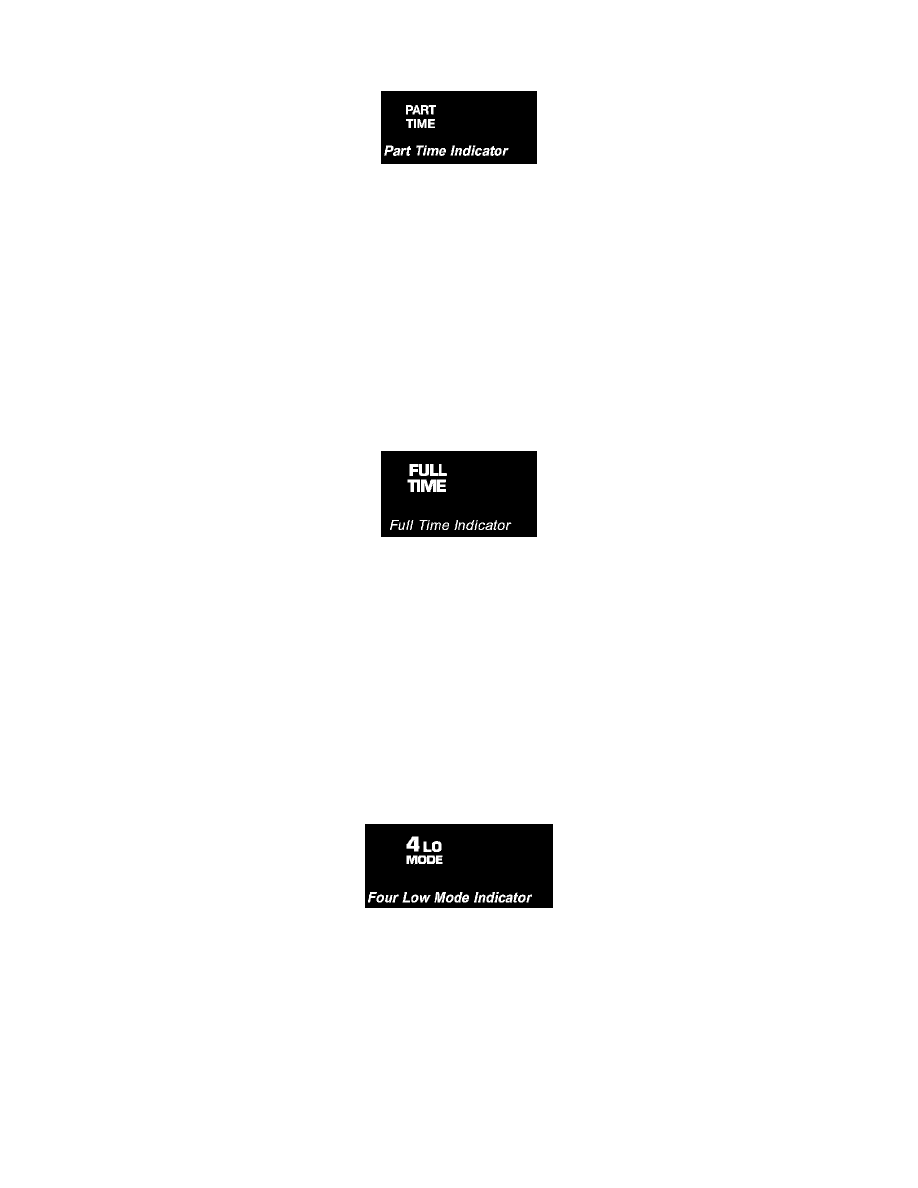

PART TIME INDICATOR
Part Time Indicator
A part time indicator is standard equipment on all instrument clusters. However, on vehicles not equipped with an optional four-wheel drive system, this
indicator is electronically disabled. This indicator is located near the lower edge of the speedometer gauge dial face in the instrument cluster.
The part time indicator consists of a stencil-like cutout of the text "PART TIME" in the opaque layer of the instrument cluster overlay. The dark outer
layer of the overlay prevents the indicator from being clearly visible when it is not illuminated. An amber Light Emitting Diode (LED) behind the cutout
in the opaque layer of the overlay causes the "PART TIME" text to appear in amber through the translucent outer layer of the overlay when the indicator
is illuminated from behind by the LED, which is soldered onto the instrument cluster electronic circuit board.
When the exterior lighting is turned On, the illumination intensity of the part time indicator is dimmable, which is adjusted along with the cluster
illumination lighting using the panel lamps dimmer control ring on the left control stalk of the multifunction switch. The part time indicator is serviced as
a unit with the instrument cluster.
FULL TIME INDICATOR
Full Time Indicator
A full time indicator is standard equipment on all instrument clusters. However, on vehicles not equipped with the optional Selec-Trac four-wheel drive
system, this indicator is electronically disabled. This indicator is located near the lower edge of the speedometer gauge dial face in the instrument cluster.
The full time indicator consists of a stencil-like cutout of the text "FULL TIME" in the opaque layer of the instrument cluster overlay. The dark outer
layer of the overlay prevents the indicator from being clearly visible when it is not illuminated. A green Light Emitting Diode (LED) behind the cutout in
the opaque layer of the cluster overlay causes the "FULL TIME" text to appear in green through the translucent outer layer of the overlay when the
indicator is illuminated from behind by the LED, which is soldered onto the instrument cluster electronic circuit board.
When the exterior lighting is turned On, the illumination intensity of the full time indicator is dimmable, which is adjusted along with the cluster
illumination lighting using the panel lamps dimmer control ring on the left control stalk of the multi-function switch. The full time indicator is serviced as
a unit with the instrument cluster.
FOUR LOW MODE INDICATOR
Four Low Mode Indicator
A four low mode indicator is standard equipment on all instrument clusters. However, on vehicles not equipped with the optional four-wheel drive
system, this indicator is electronically disabled. This indicator is located above the coolant temperature gauge and to the right of the tachometer in the
instrument cluster.
The four low mode indicator consists of a stencillike cutout of the words "4 LO MODE" in the opaque layer of the instrument cluster overlay. The dark
outer layer of the overlay prevents the indicator from being clearly visible when it is not illuminated. An amber Light Emitting Diode (LED) behind the
cutout in the opaque layer of the overlay causes the "4 LO MODE" text to appear in amber through the translucent outer layer of the overlay when the
indicator is illuminated from behind by the LED, which is soldered onto the instrument cluster electronic circuit board.
When the exterior lighting is turned On, the illumination intensity of the four low mode indicator is dimmable, which is adjusted along with the cluster
illumination lighting using the panel lamps dimmer control ring on the left control stalk of the multifunction switch. The four low mode indicator is
