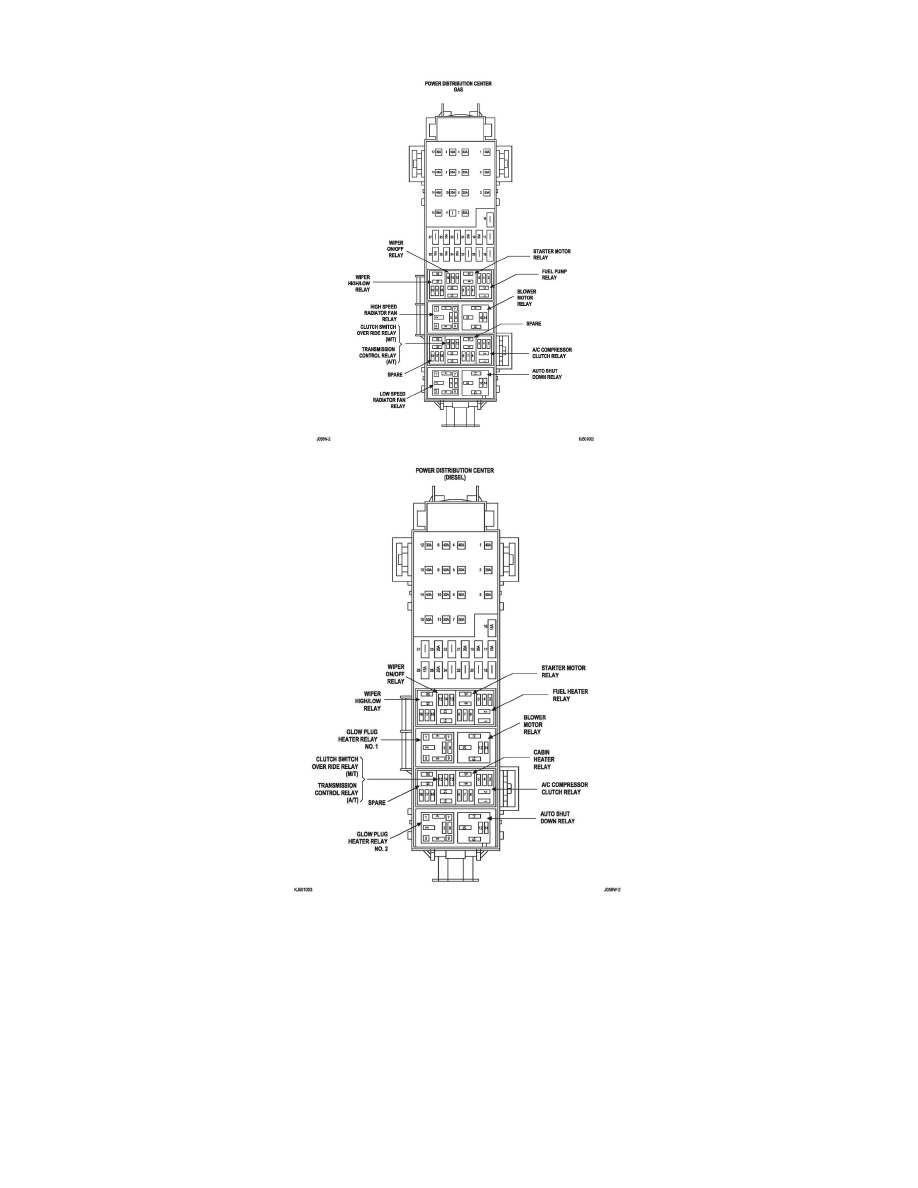

Transmission Control System Relay: Locations

Transmission Control (A/T) Relay is located in the Power Distribution Center (PDC).
