Liberty 2WD L4-2.4L VIN 1 (2005)
Front Door Window Regulator: Service and Repair
Manual
REMOVAL
1. Remove the waterdam.

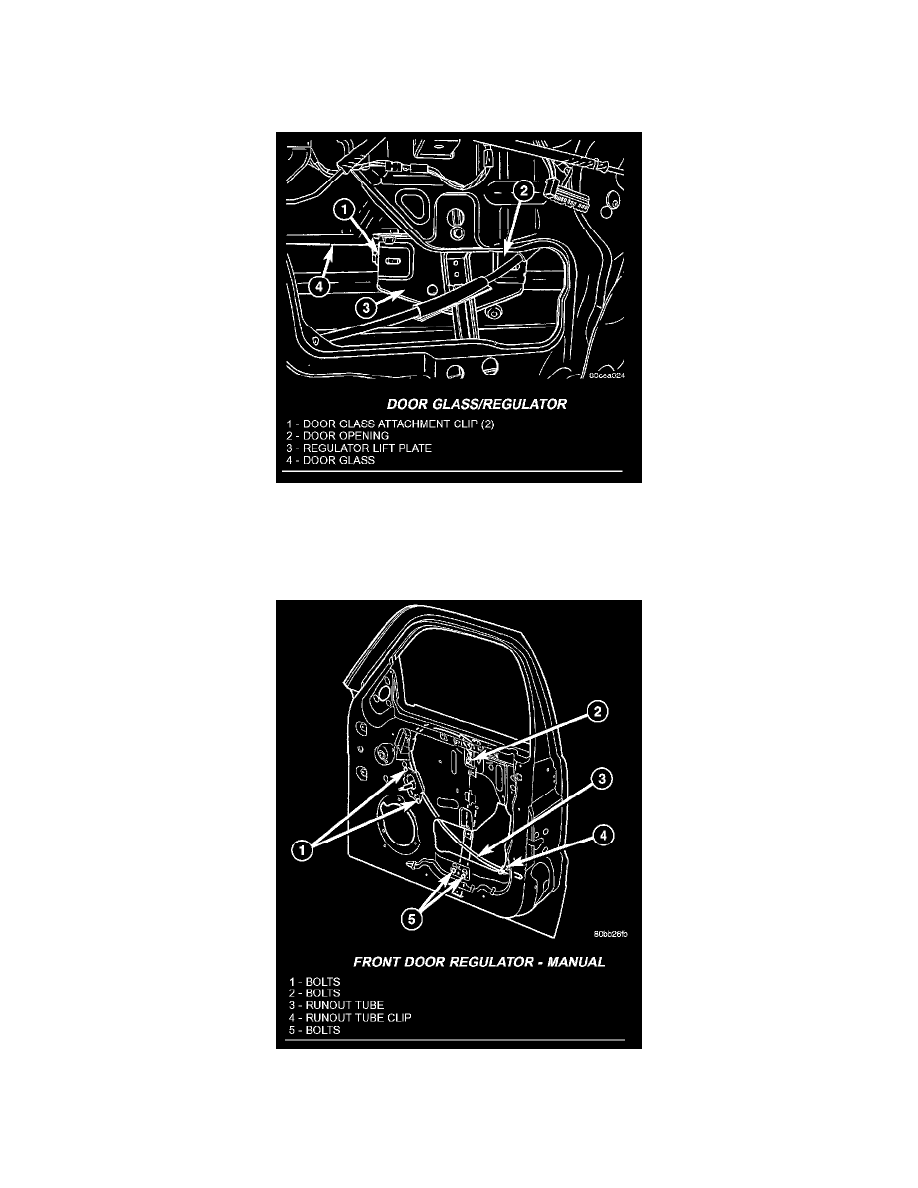

Door Glass/Regulator
2. Raise the glass to the position shown and using a long flat blade or hook type tool, disengage clips attaching glass retainer to regulator lift plate.
3. Disconnect the glass from the regulator lift plate and re-install the clips.
4. Secure the glass in the up position using a wood wedge, tape or equivalent.
Front Door Regulator - Manual
5. Loosen the bolts.
6. Disconnect the runout tube clip and remove the regulator
