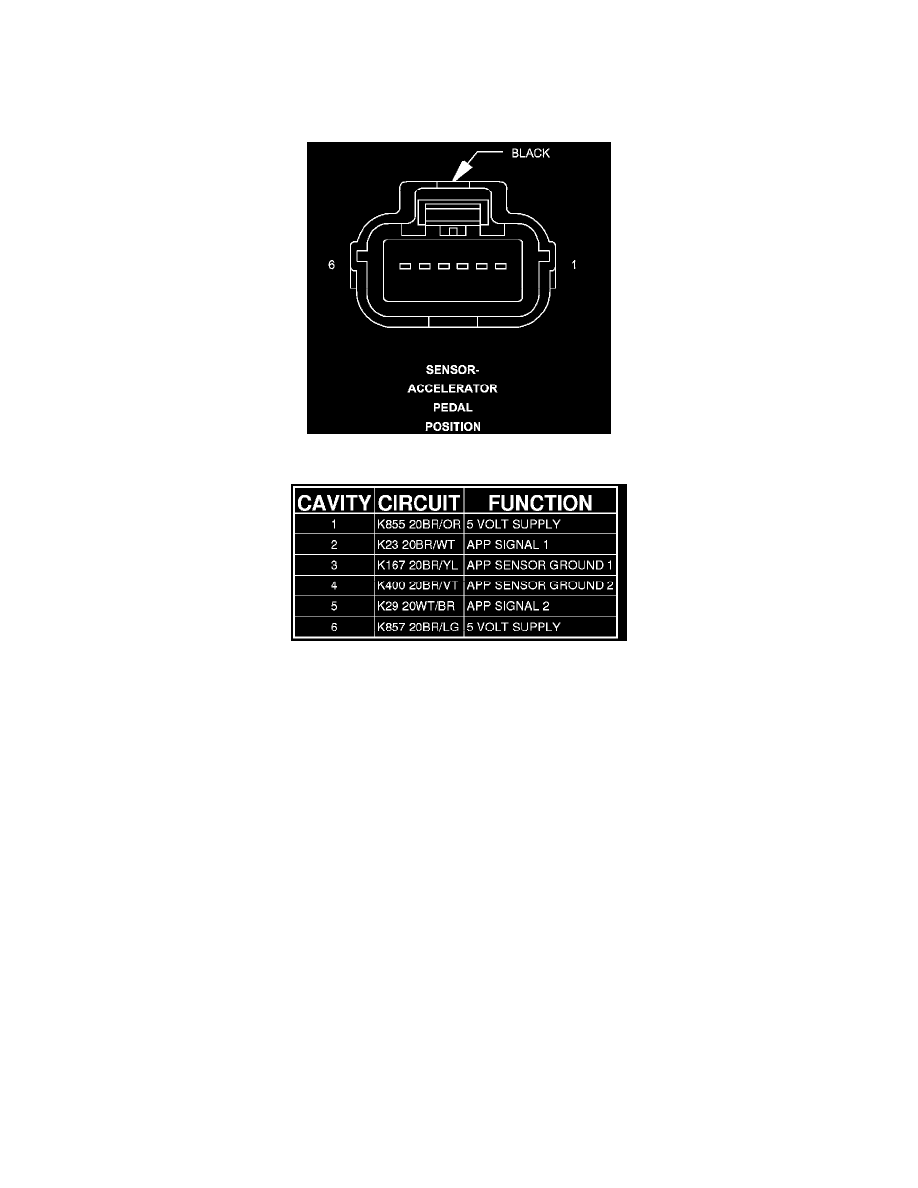

Accelerator Pedal Position Sensor: Diagrams

Connector - (INSTRUMENT PANEL) 6 WAY



 SENSOR-ACCELERATOR PEDAL POSITION - (INSTRUMENT PANEL) 6 WAY
