Relays and Modules - Instrument Panel > < Radiator Fan High/Low Relay (In F/RB)|Page 106

Patriot 2WD L4-2.0L VIN 0 (2007)

Page 1
background image

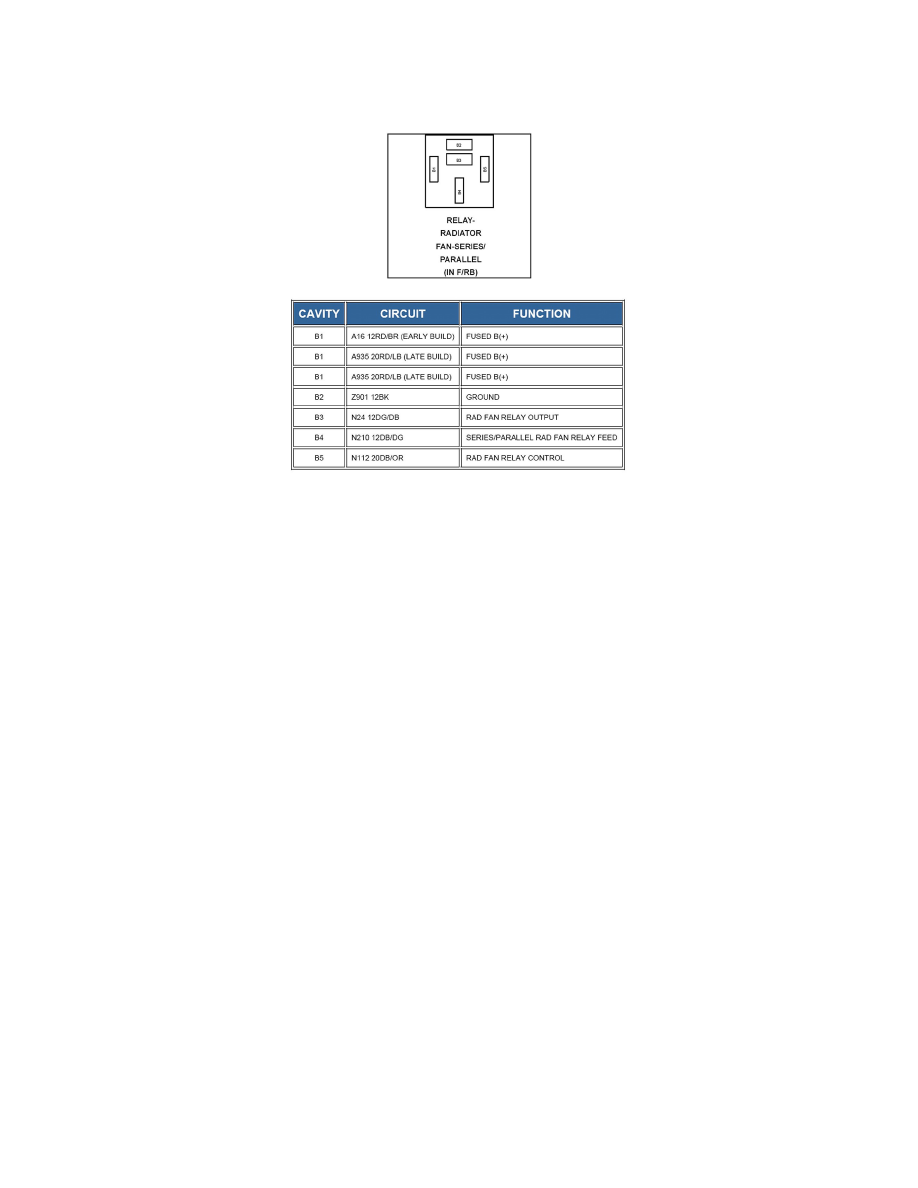

Radiator Cooling Fan Motor Relay: Diagrams
Radiator Fan Series/Parallel Relay (In F/RB)

Radiator Fan-Series/Parallel Relay

Relays and Modules - Instrument Panel > < Radiator Fan High/Low Relay (In F/RB)|Page 106
