Patriot 2WD L4-2.0L VIN 0 (2007)
NOTE:

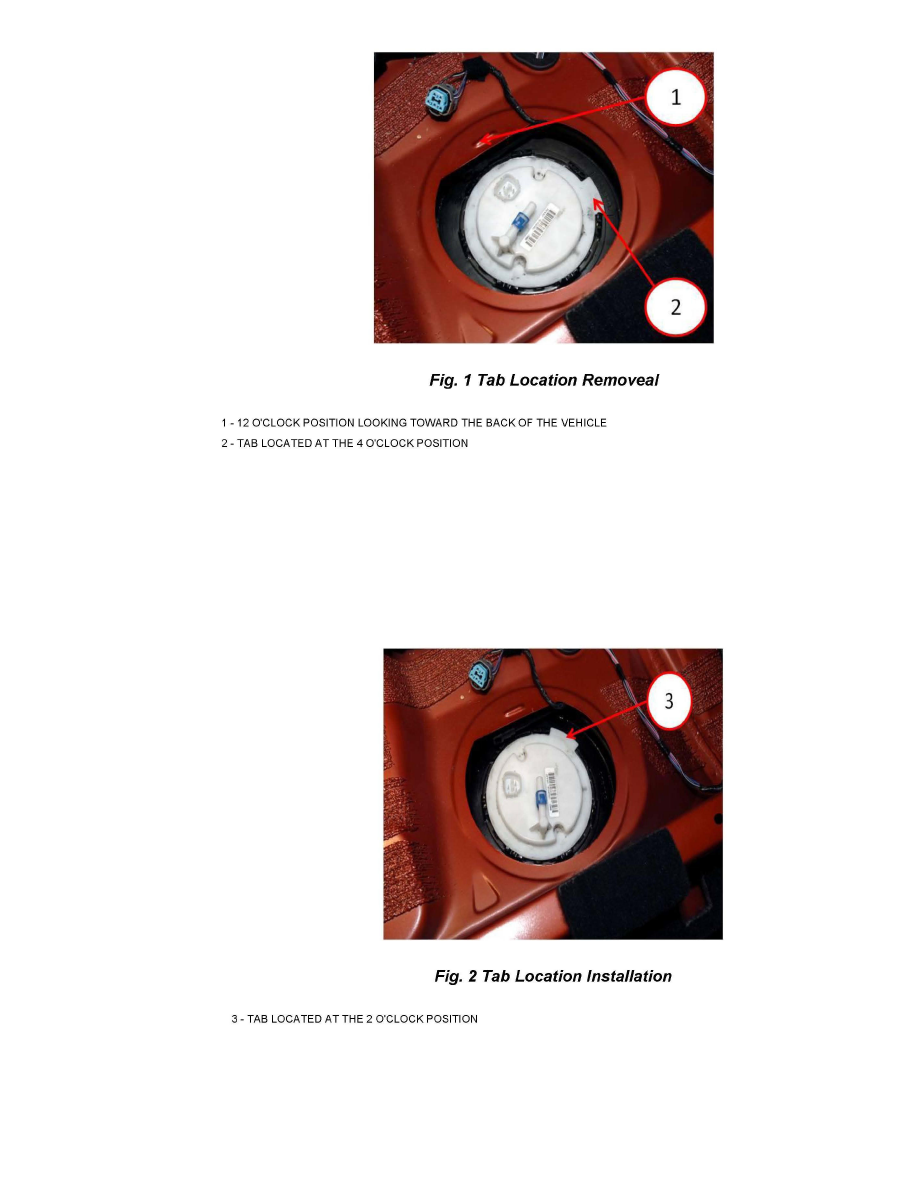

Mark the sending unit at the 4:00 position with 12:00 pointing to the rear of the vehicle.
2. Remove the fuel pump sending unit from the Pump module.
3. Install New Sender to the Fuel Pump Module.
4. Install Fuel Pump Module using procedures found in DealerConnect > TechConnect > 14-Fuel System > Fuel Delivery, Gas > Module, Fuel Pump >
Installation > Front Wheel Drive
NOTE:
Clock the Fuel Module to the 2:00 position
