Patriot 4WD L4-2.4L (2009)
Knee Diverter: Service and Repair
Kneeblocker - Removal
REMOVAL
1. Remove the screws from the bottom of the steering column opening cover.
2. Using trim stick C-4755 or equivalent, separate the snap clips and remove the cover.

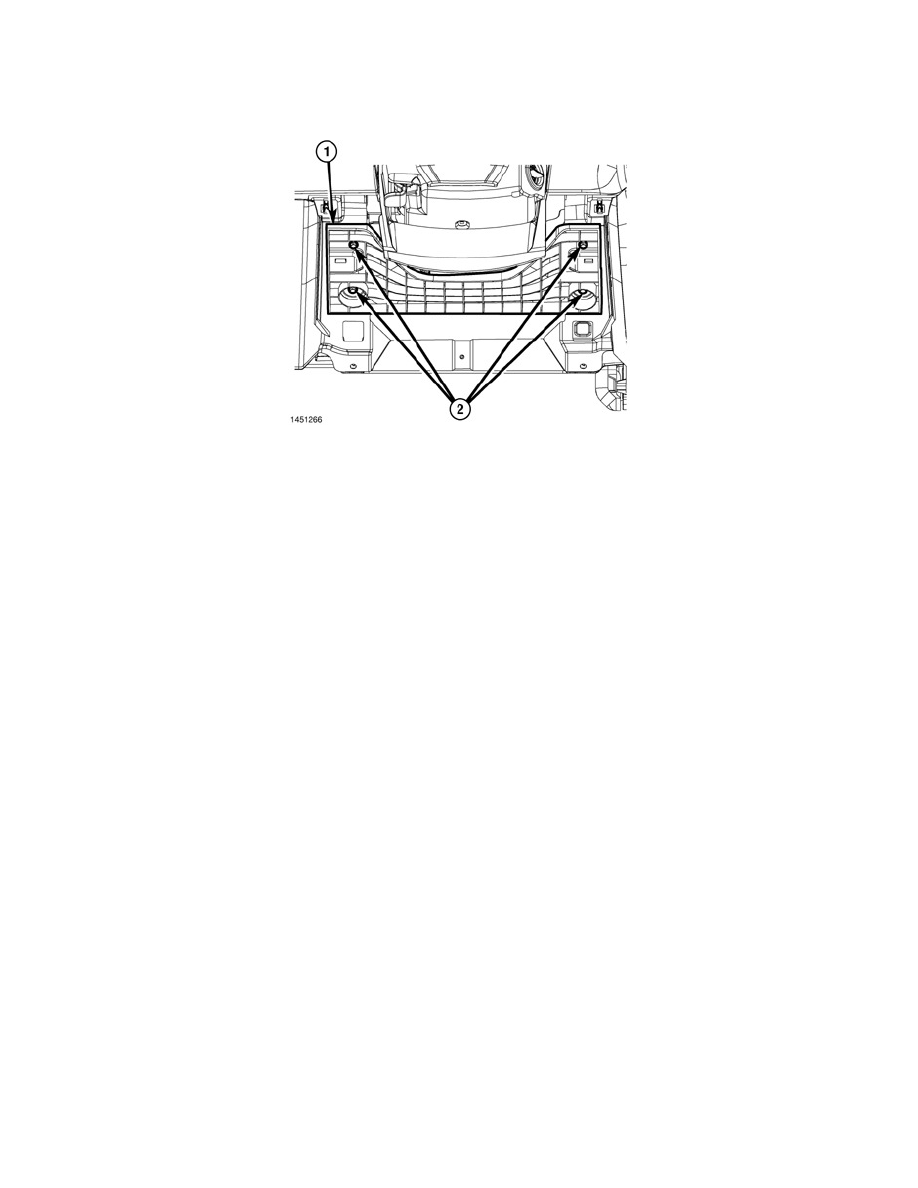

3. Remove the mounting fasteners (2) and remove the knee blocker (1).
