Wiper Motor|Description and Operation > < Front Wiper Motor (Engine Compartment) 5 Way

Patriot 4WD L4-2.4L (2009)

Page 1
background image

Wiper Motor: Diagrams

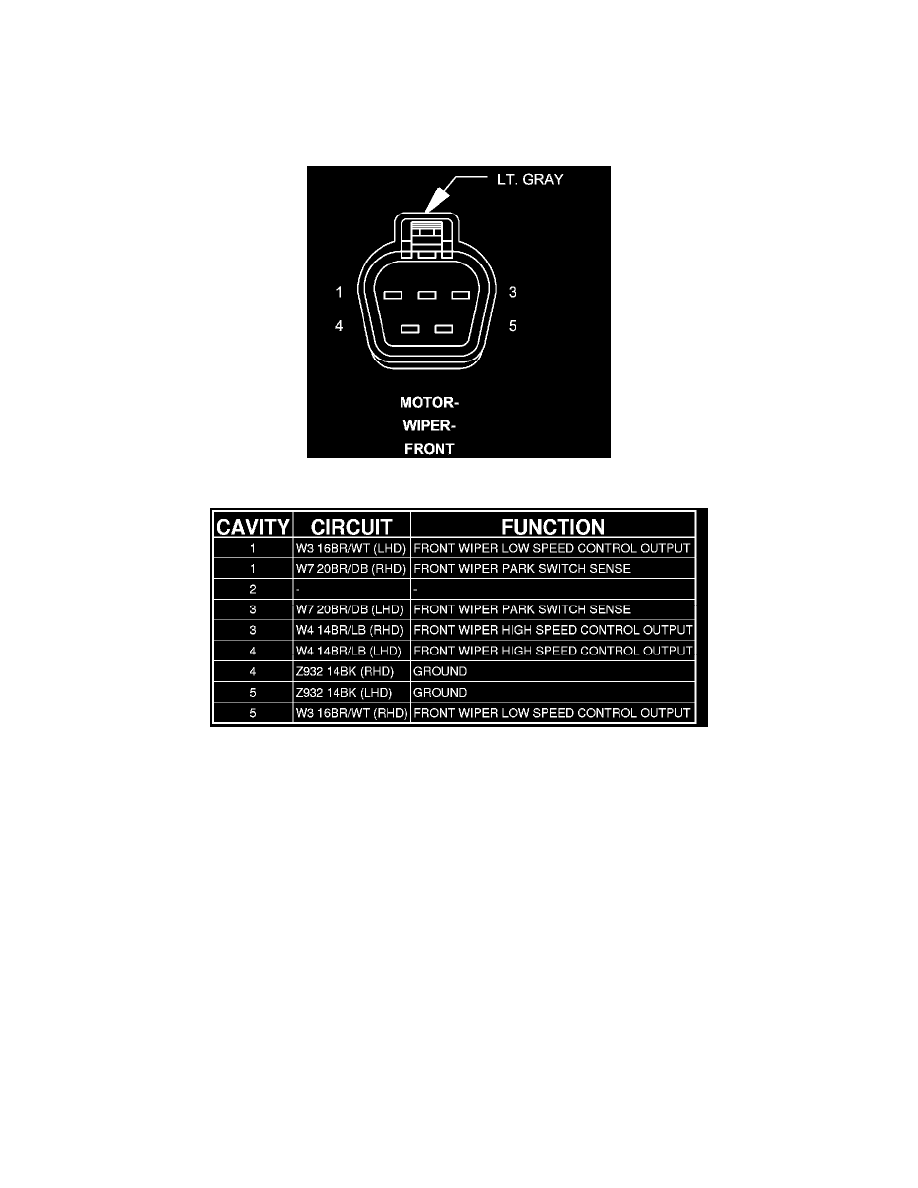

Rear Wiper Motor (Liftgate) 4 Way

Connector - (LIFTGATE) 4 WAY



 MOTOR-WIPER-REAR - (LIFTGATE) 4 WAY

Wiper Motor|Description and Operation > < Front Wiper Motor (Engine Compartment) 5 Way
