Crankshaft Main Bearing Seal: Technical Service Bulletins
Engine Rear Main Oil Seal - Service
NO: 09-04-96
GROUP: Engine
DATE: Mar. 15, 1996
SUBJECT:
2.5L & 4.0L Rear Main Oil Seal Service
NOTE:
THIS BULLETIN APPLIES TO VEHICLES EQUIPPED WITH 2.5L AND 4.0L ENGINES BUILT PRIOR TO 1/1/96 (1996 MDH 01-01-XX)
MODELS:
1996
(AN) Dakota (2.5L)
1991 - 1996
(XJ) Cherokee
1991 - 1996
(YJ) Wrangler
1993 - 1996
(ZJ) Grand Cherokee
1995 - 1996
(ZG) Grand Cherokee (export)
DISCUSSION:
Some rear main oil seal failures may be caused by abrasion from dirt or contamination, which can collect on the seal. Vehicles operated in dirty or dusty
conditions are most susceptible to this type of failure. A rubber plug is now being used in production to eliminate an entry point for contamination. The

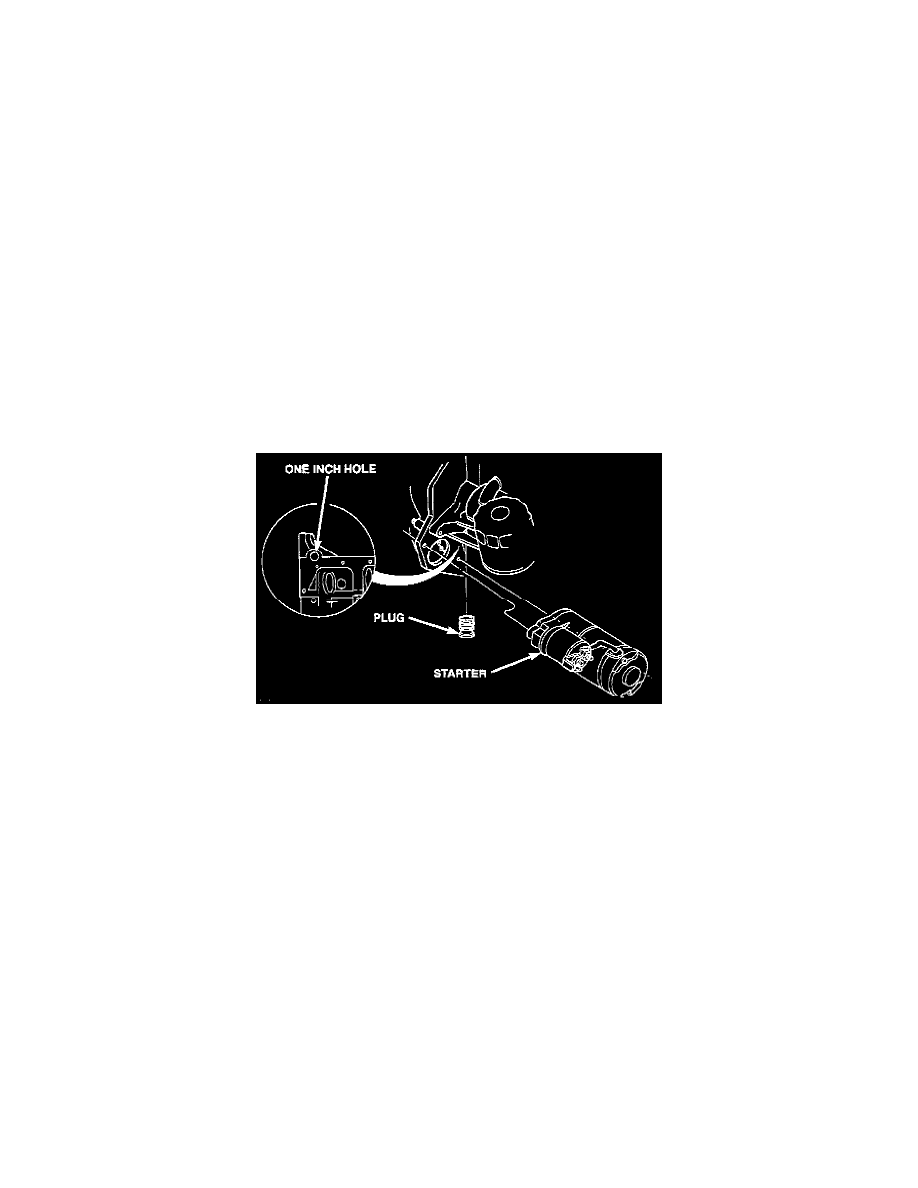

plug is now installed in a one inch hole in the cylinder block, directly above the starter mounting location (see illustration). The plug, P/N 53020465, is
available through MOPAR and should be installed any time rear main seal service is performed. This can significantly extend rear main seal life for
vehicles operated in these conditions.
POLICY: Information Only
