Wrangler L4-150 2.5L VIN P MFI (1993)
Seals and Gaskets: Service and Repair
RIGHT-SIDE AXLE SHAFT INNER SEAL REPLACEMENT
The following procedures are applicable only to YJ vehicles and MJ/XJ vehicles that are equipped with a Command-Trac front axle (i.e, a disconnect
axle).
Removal-MJ, XJ And YJ Vehicles
1. Remove the right-side (outer) axle shaft according to the removal procedure.

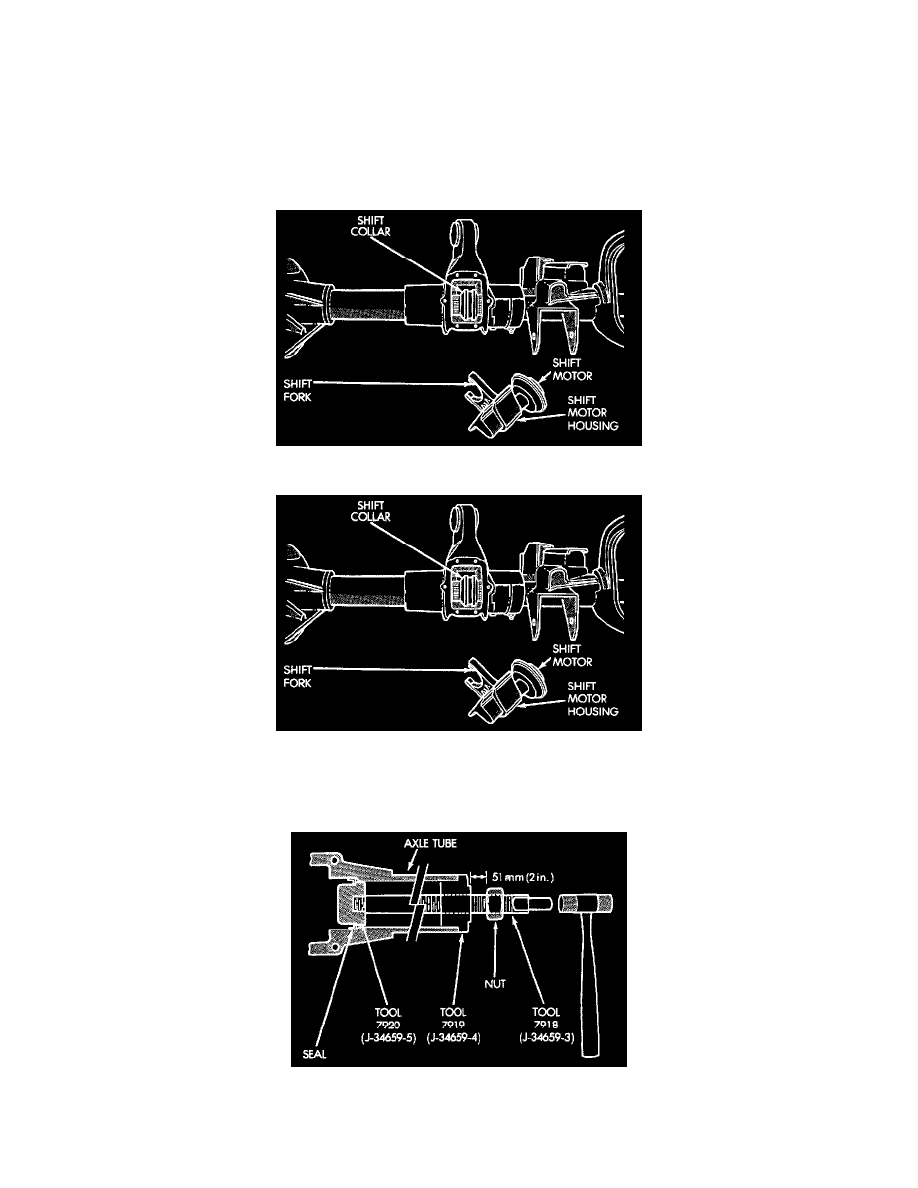

2. Remove the vacuum shift motor and housing from the axle shaft tube. If necessary, refer to the removal procedure.
3. Remove the shift collar from the intermediate shaft.
4. Clean the outer edge and the inside perimeter of the axle shaft tube with fine crocus cloth.
5. Slide support guide tool over threaded rod tool and position it near the nut.
6. Thread axle shaft seal removal tool onto the opposite end of threaded rod tool.
7. Insert the threaded rod tool (with the support guide tool and the removal tool) into the outer end and through the right-side axle shaft tube until the
axle shaft seal is contacted.
