Wrangler L4-2.4L VIN 1 (2006)
Accumulator HVAC: Description and Operation
ACCUMULATOR
DESCRIPTION

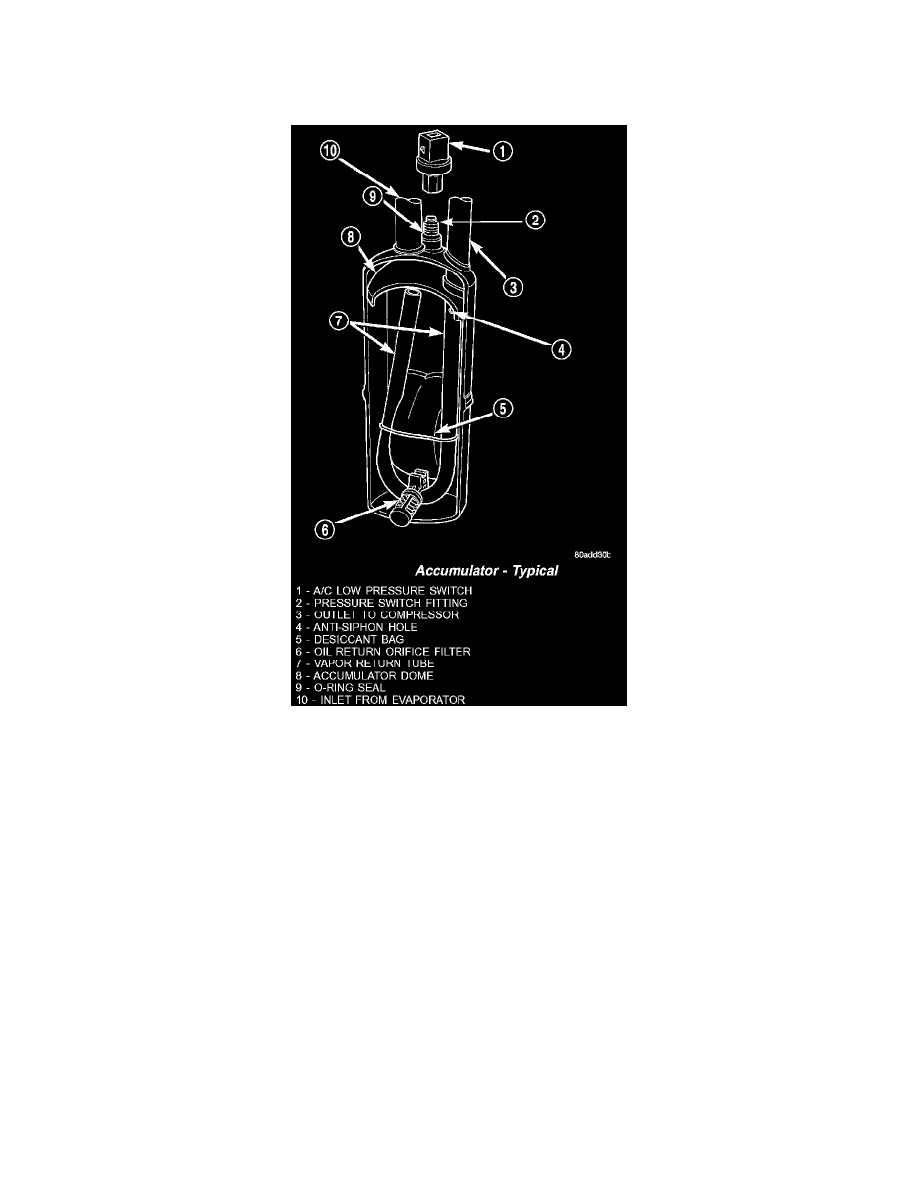

Accumulator - Typical
The A/C accumulator is mounted in the engine compartment between the A/C evaporator and the A/C compressor. An integral mounting bracket is used
to secure the A/C accumulator to the frame rail. The A/C low pressure switch is mounted on a fitting located on the top of the A/C accumulator.
The A/C accumulator cannot be repaired and, if faulty or damaged, it must be replaced. The rubber O-rings used on accumulator connections and the
A/C low pressure switch are available for service replacement.
OPERATION
Refrigerant enters the A/C accumulator mostly as a low pressure vapor through the inlet tube. Any liquid, oil-laden refrigerant falls to the bottom of the
canister, which acts as a separator. A desiccant bag is mounted inside the accumulator canister to absorb any moisture which may have entered and
become trapped within the refrigerant system A filter is also mounted inside the canister to trap any foreign material that may have entered the refrigerant
system during assembly. The low pressure vapor exits the A/C accumulator through the outlet tube.
The A/C accumulator cannot be repaired. If the A/C accumulator is faulty or damaged, or if an internal failure of the A/C compressor has occurred, the
A/C accumulator must be replaced.
