Wrangler L4-2.4L VIN 1 (2006)
Check Valve: Description and Operation
Front Check Valve

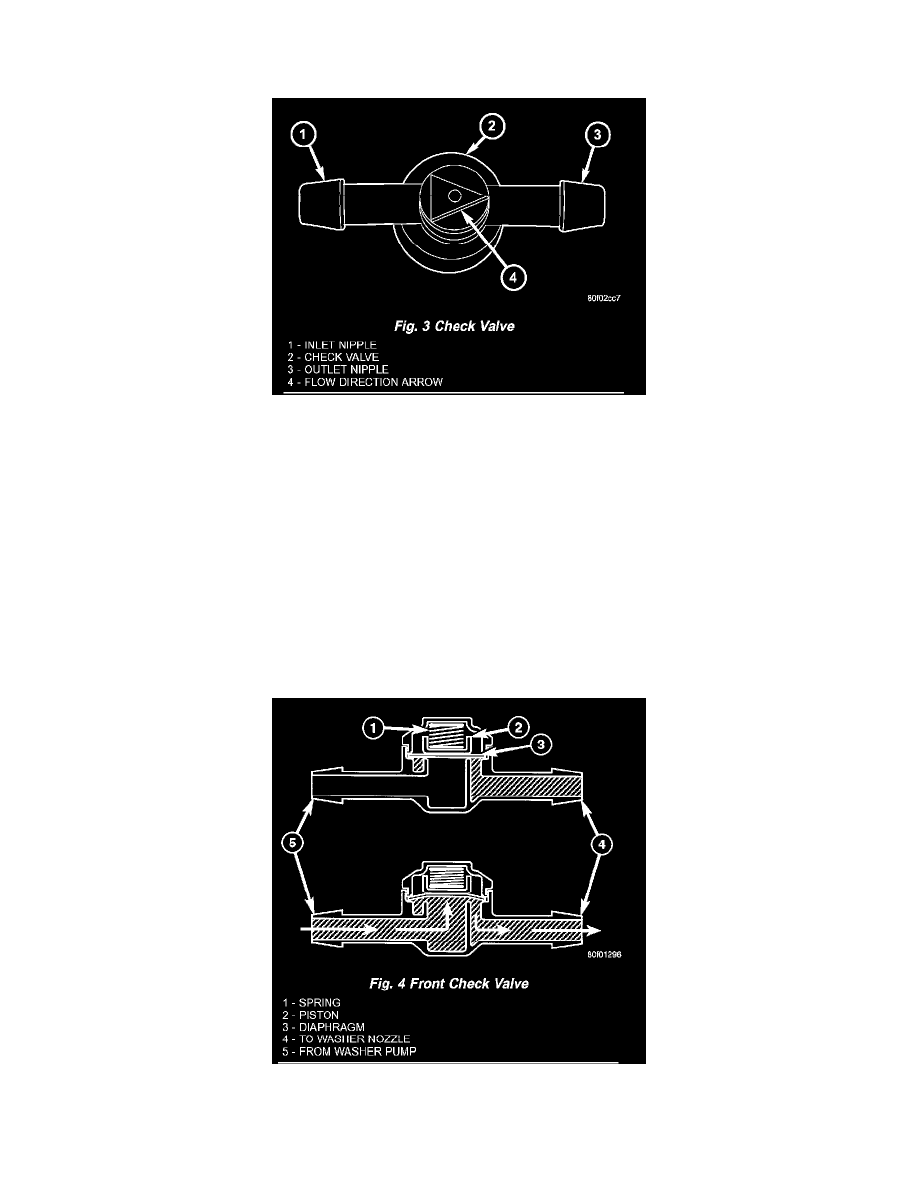

Fig. 3 Check Valve
A single front washer system check valve is standard equipment on this model, and is installed in the front washer system plumbing. The front check
valve is located in the engine compartment in the washer supply hose on the underside of the hood panel about 5 centimeters (2 inches) from the barbed
nipple of the front washer nozzle. The check valve consists of a molded plastic valve body with a raised arrowhead molded into its center section that
indicates the direction of the flow through the valve. A barbed hose nipple is formed on each side of the raised center section of the valve body. Within
the check valve body, a small diaphragm is held against the lip of an integral sump well by a small plastic piston and a coiled spring. The front check
valve cannot be adjusted or repaired and, if faulty or damaged, it must be replaced.
The front check valve provides more than one function in this application. It prevents washer fluid from draining out of the front washer supply hoses
back to the washer reservoir. This drain-back would result in a lengthy delay from when the front washer switch is actuated until washer fluid was
dispensed through the front washer nozzle, because the front washer pump would have to refill the front washer plumbing from the reservoir to the
nozzle. Such a drain-back condition could also result in water, dirt, or other outside contaminants being siphoned into the washer system through the
washer nozzle orifice. This water could subsequently freeze and plug the nozzle, while other contaminants could interfere with proper nozzle operation
and cause improper nozzle spray patterns. In addition, the front check valve prevents washer fluid from siphoning out through the front washer nozzle
after the front washer system is turned Off.
Fig. 4 Front Check Valve
When the front washer pump pressurizes and pumps washer fluid from the reservoir through the front washer plumbing, the fluid pressure unseats a
diaphragm from over a sump well within the valve by overriding the spring pressure applied to it by a piston. With the diaphragm unseated, washer fluid
