Wrangler 4WD V6-3.8L (2009)
Skid Plate: Service and Repair
Skid Plate - Installation

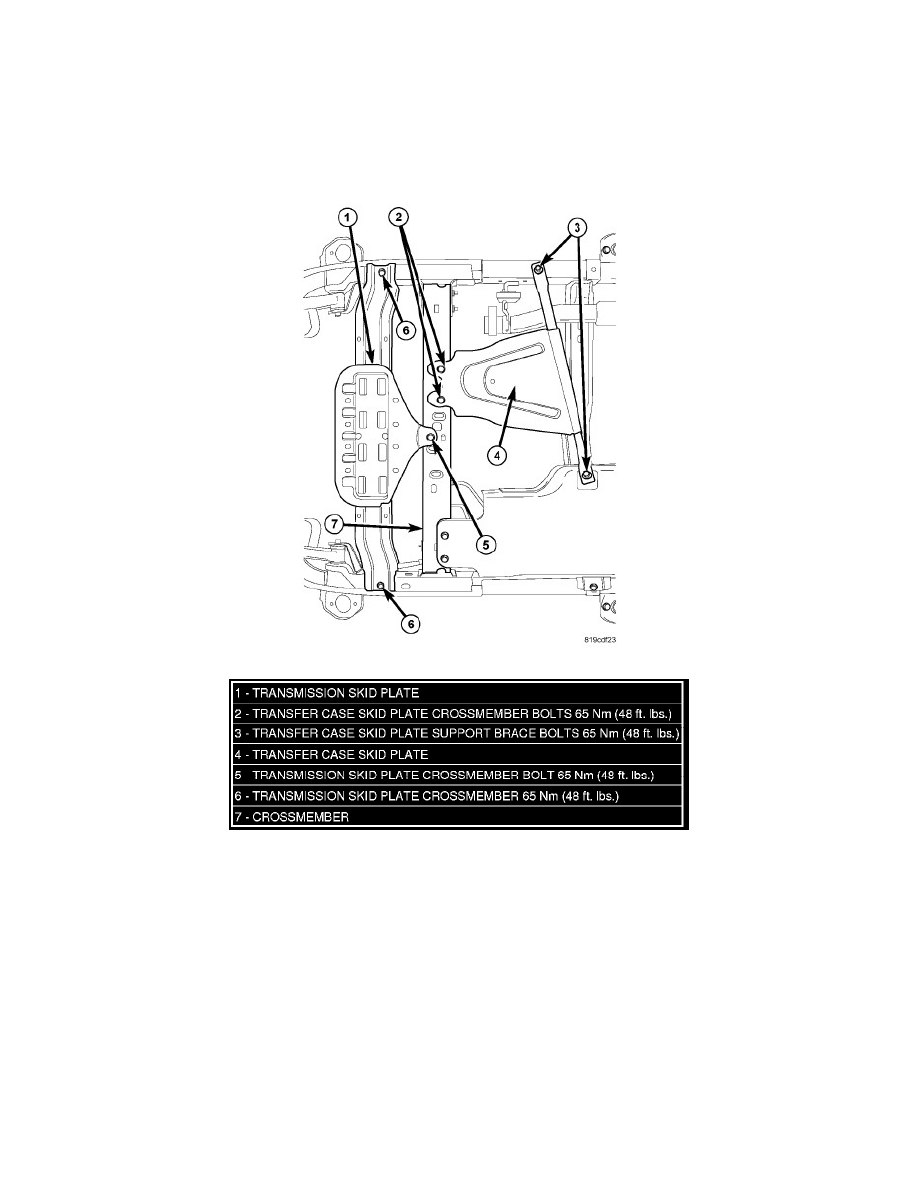

Transfer Case
INSTALLATION
1. Install the skid plate (4).
2. Install the bracket bolts (3) and tighten to 65 Nm (48 ft. lbs.).
3. Install the crossmember bolts (2) and tighten to 65 Nm (48 ft. lbs.).
Fuel Tank
INSTALLATION
1. Install the fuel tank, See: Powertrain Management/Fuel Delivery and Air Induction/Fuel Tank/Service and Repair/Removal and Replacement/Fuel
Tank - Installation.
Transmission
INSTALLATION
