Refit Crankshaft and Bearings for 300Tdi Engine Overhaul
ENGINE
64
OVERHAUL
8. Tighten centre main bearing cap bolts to 133
Nm.
9. Temporarily fit crankshaft pulley bolt and check
that crankshaft rotates freely and smoothly.
10. Tighten each pair of main bearing cap bolts to
133 Nm in the order No. 2, No. 4, No. 1 and
No. 5. Check that crankshaft rotates freely and
smoothly after tightening each pair of bolts.

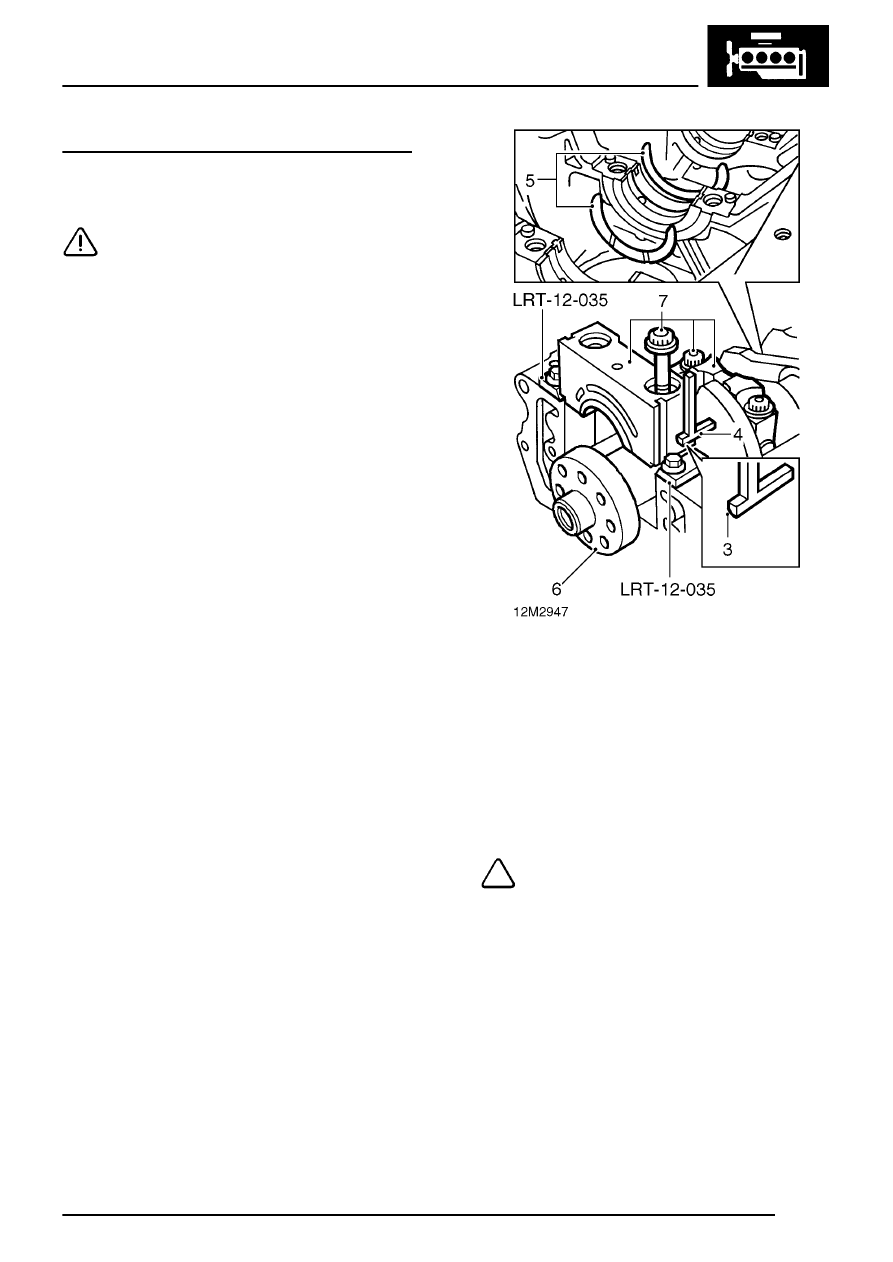

11. Remove seal guides LRT-12-035 and select
feeler gauges to a thickness of 0.80 mm,
position gauges on number 5 main bearing cap
adjacent to oil seals.

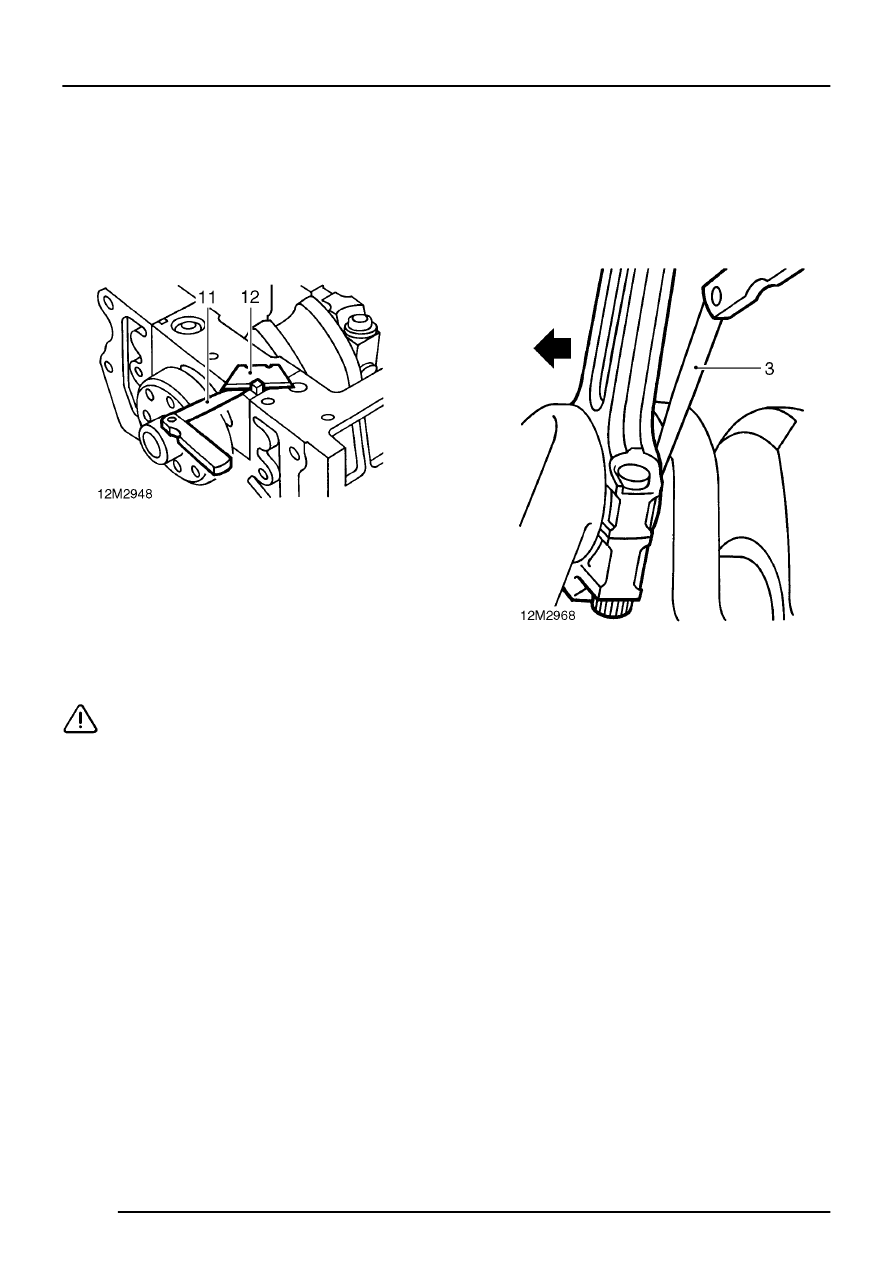

12. Position a sharp blade on feeler gauges and
keeping blade parallel to bearing cap, slice
excess material off oil seal
13. Repeat above procedures for remaining seal.
CAUTION: Seals should be left to settle for
as long as possible before they are
trimmed.
Big-end bearings
1. Lubricate big-end bearing shells and
crankshaft journals with engine oil.
2. Fit numbers 1 and 4 big-end bearing caps and
shells, fit bearing cap nuts and tighten to 59
Nm.
3. Move numbers 1 and 4 connecting rods fully to
one side of crankshaft journal and using feeler
gauges, check end-float of both connecting
rods on journals is between 0.15 and 0.35 mm.
4. If end-float is outside limits, replace connecting
rod.
5. Check that crankshaft rotates smoothly.
6. Repeat above procedures for numbers 2 and 3
big-end bearings.
