Front radius arm noise / creak

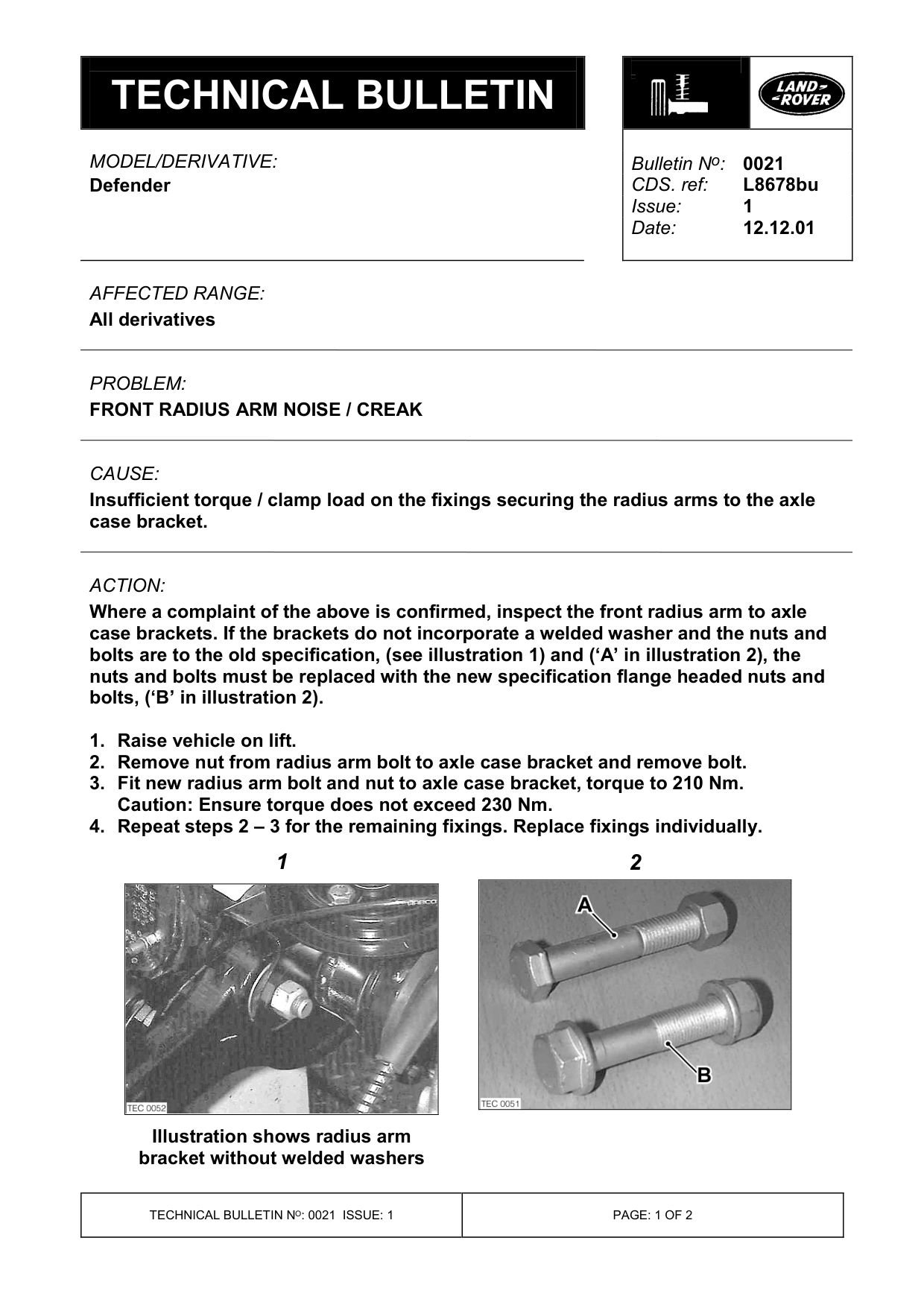

FRONT RADIUS ARM NOISE / CREAK

Model

Defender

Affected vehicles

All derivatives

Date

2001-12-12

Reference

Bulletin 0021, CDS ref L8678bu

Bulletin text

Defender

AFFECTED RANGE:

All derivatives

PROBLEM:

FRONT RADIUS ARM NOISE / CREAK

CAUSE:

Insufficient torque / clamp load on the fixings securing the radius arms to the axle case bracket.

ACTION:

Where a complaint of the above is confirmed, inspect the front radius arm to axle case brackets. If the brackets do not incorporate a welded washer and the nuts and bolts are to the old specification, (see illustration 1) and (‘A’ in illustration 2), the nuts and bolts must be replaced with the new specification flange headed nuts and bolts, (‘B’ in illustration 2).

1. Raise vehicle on lift. 2. Remove nut from radius arm bolt to axle case bracket and remove bolt. 3. Fit new radius arm bolt and nut to axle case bracket, torque to 210 Nm. Caution: Ensure torque does not exceed 230 Nm. 4. Repeat steps 2 - 3 for the remaining fixings. Replace fixings individually.

1

Illustration shows radius arm bracket without welded washers

Bulletin N o : 0021

2

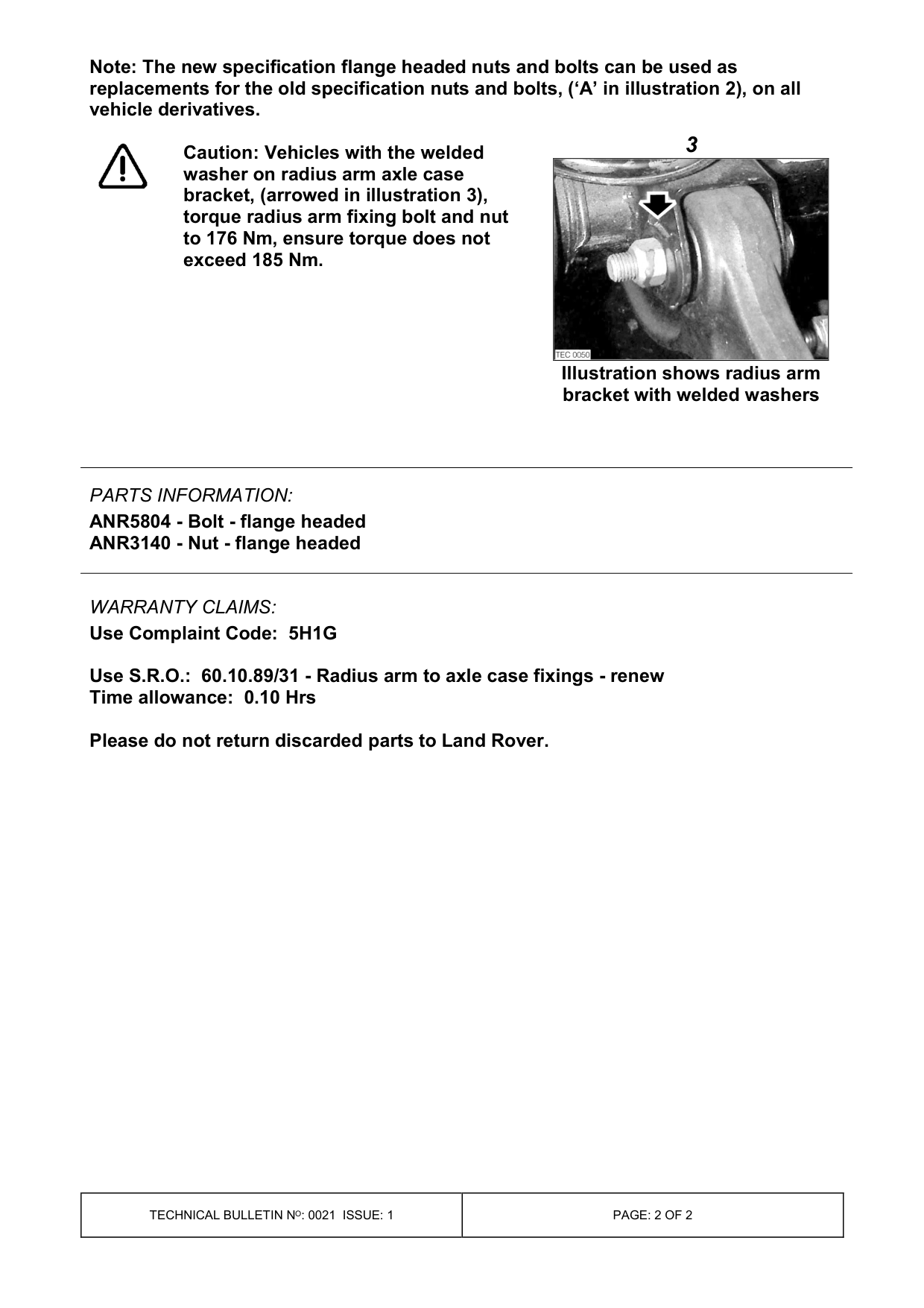

Note: The new specification flange headed nuts and bolts can be used as replacements for the old specification nuts and bolts, (‘A’ in illustration 2), on all vehicle derivatives.

Caution: Vehicles with the welded washer on radius arm axle case bracket, (arrowed in illustration 3), torque radius arm fixing bolt and nut to 176 Nm, ensure torque does not exceed 185 Nm.

PARTS INFORMATION:

ANR5804 - Bolt - flange headed ANR3140 - Nut - flange headed

WARRANTY CLAIMS: Use Complaint Code: 5H1G

Use S.R.O.: 60.10.89/31 - Radius arm to axle case fixings - renew Time allowance: 0.10 Hrs

Please do not return discarded parts to Land Rover.

3

Illustration shows radius arm bracket with welded washers
