Seat base frame

SEAT BASE FRAME

Model

Defender All Derivatives

Affected vehicles

All

Date

1996-12-11

Reference

11/12/96

Bulletin text

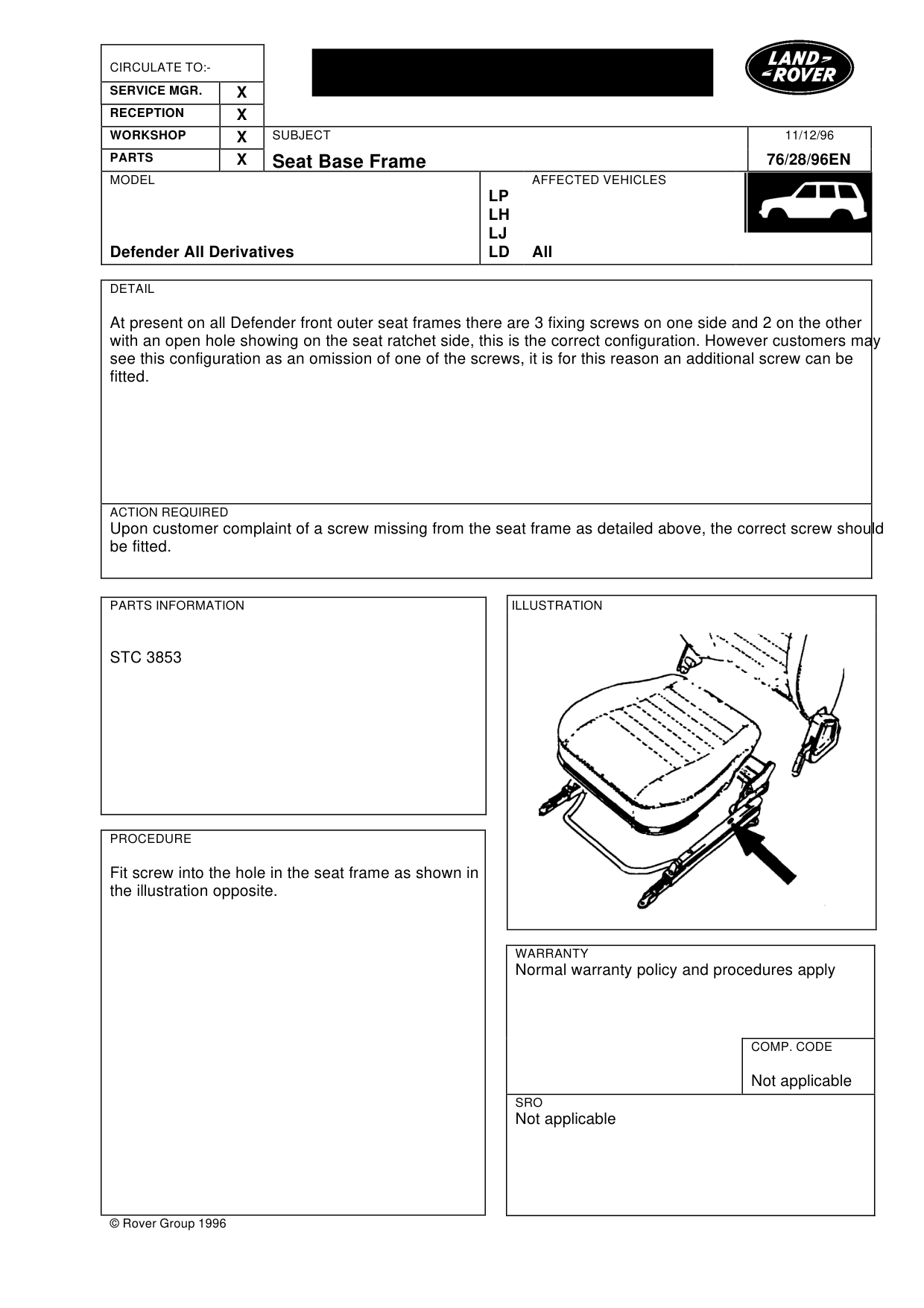

Seat Base Frame

MODEL

Defender All Derivatives

DETAIL

At present on all Defender front outer seat frames there are 3 fixing screws on one side and 2 on the other with an open hole showing on the seat ratchet side, this is the correct configuration. However customers may see this configuration as an omission of one of the screws, it is for this reason an additional screw can be fitted.

ACTION REQUIRED

Upon customer complaint of a screw missing from the seat frame as detailed above, the correct screw should be fitted.

PARTS INFORMATION

STC 3853

PROCEDURE

Fit screw into the hole in the seat frame as shown in the illustration opposite.

© Rover Group 1996

11/12/96

76/28/96EN

AFFECTED VEHICLES

LP LH LJ LD All

WARRANTY

Normal warranty policy and procedures apply

COMP. CODE

Not applicable

SRO

Not applicable
