Water ingress into vehicle

WATER INGRESS INTO VEHICLE

Model

Defender

Affected vehicles

All derivatives

Reference

Bulletin 76, CDS ref 761997

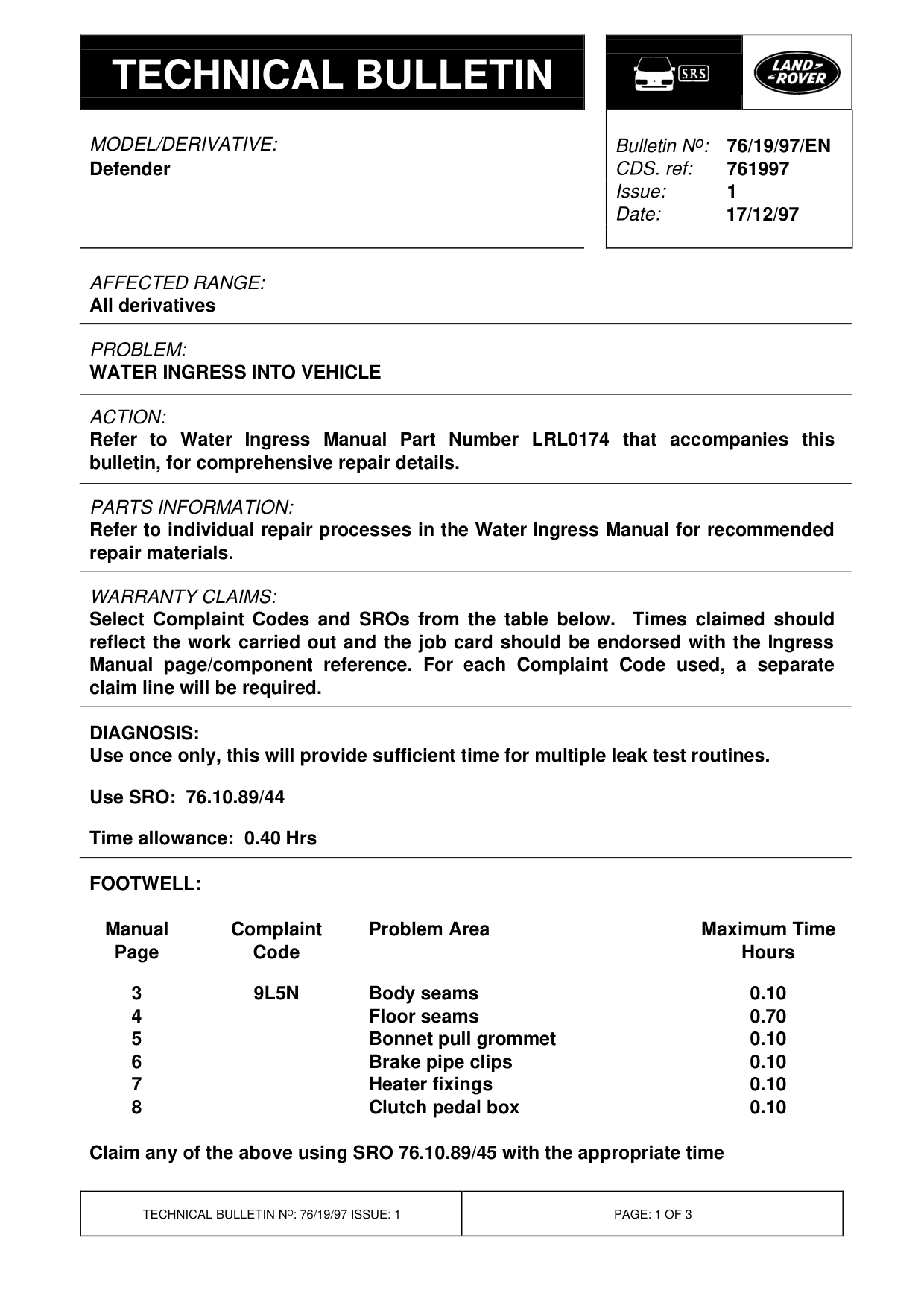

Bulletin text

Defender

AFFECTED RANGE:

All derivatives

PROBLEM:

WATER INGRESS INTO VEHICLE

ACTION:

Refer to Water Ingress Manual Part Number LRL0174 that accompanies this bulletin, for comprehensive repair details.

PARTS INFORMATION:

Refer to individual repair processes in the Water Ingress Manual for recommended repair materials.

WARRANTY CLAIMS: Select Complaint Codes and SROs from the table below. Times claimed should reflect the work carried out and the job card should be endorsed with the Ingress Manual page/component reference. For each Complaint Code used, a separate claim line will be required.

DIAGNOSIS: Use once only, this will provide sufficient time for multiple leak test routines.

Use SRO: 76.10.89/44

Time allowance: 0.40 Hrs

FOOTWELL:

Manual Complaint Problem Area Page Code

3 9L5N Body seams 4 Floor seams 5 Bonnet pull grommet 6 Brake pipe clips 7 Heater fixings 8 Clutch pedal box

Claim any of the above using SRO 76.10.89/45 with the appropriate time

Bulletin N o : 76/19/97/EN 761997 1 17/12/97

Maximum Time Hours

0.10 0.70 0.10 0.10 0.10 0.10

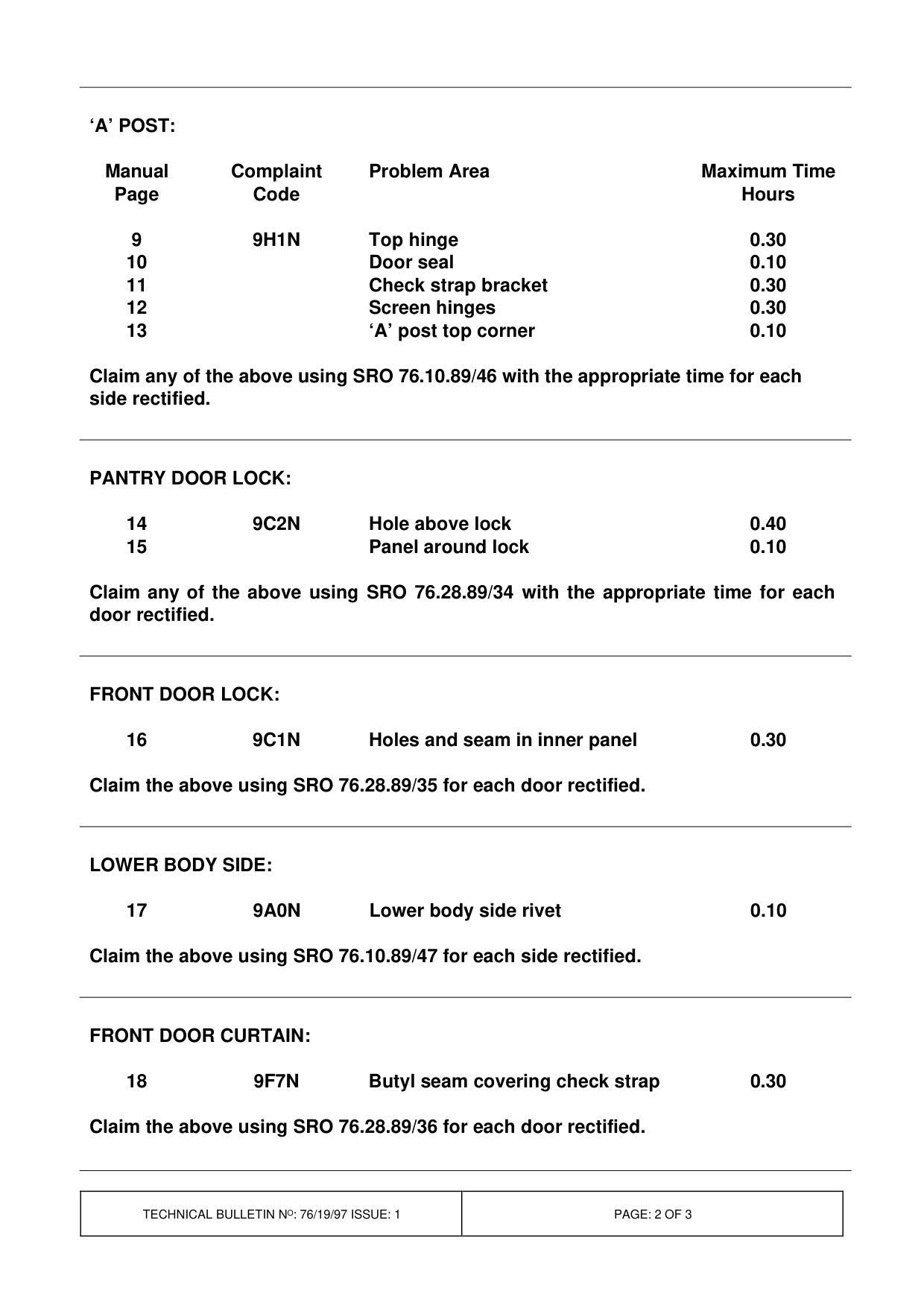

‘A’ POST:

Manual Complaint Problem Area Page Code

9 9H1N Top hinge 10 Door seal 11 Check strap bracket 12 Screen hinges 13 ‘A’ post top corner

Claim any of the above using SRO 76.10.89/46 with the appropriate time for each side rectified.

PANTRY DOOR LOCK:

14 9C2N Hole above lock 15 Panel around lock

Claim any of the above using SRO 76.28.89/34 with the appropriate time for each door rectified.

FRONT DOOR LOCK:

16 9C1N Holes and seam in inner panel

Claim the above using SRO 76.28.89/35 for each door rectified.

LOWER BODY SIDE:

17 9A0N Lower body side rivet

Claim the above using SRO 76.10.89/47 for each side rectified.

FRONT DOOR CURTAIN:

18 9F7N Butyl seam covering check strap

Claim the above using SRO 76.28.89/36 for each door rectified.

Maximum Time Hours

0.30 0.10 0.30 0.30 0.10

0.40 0.10

0.30

0.10

0.30

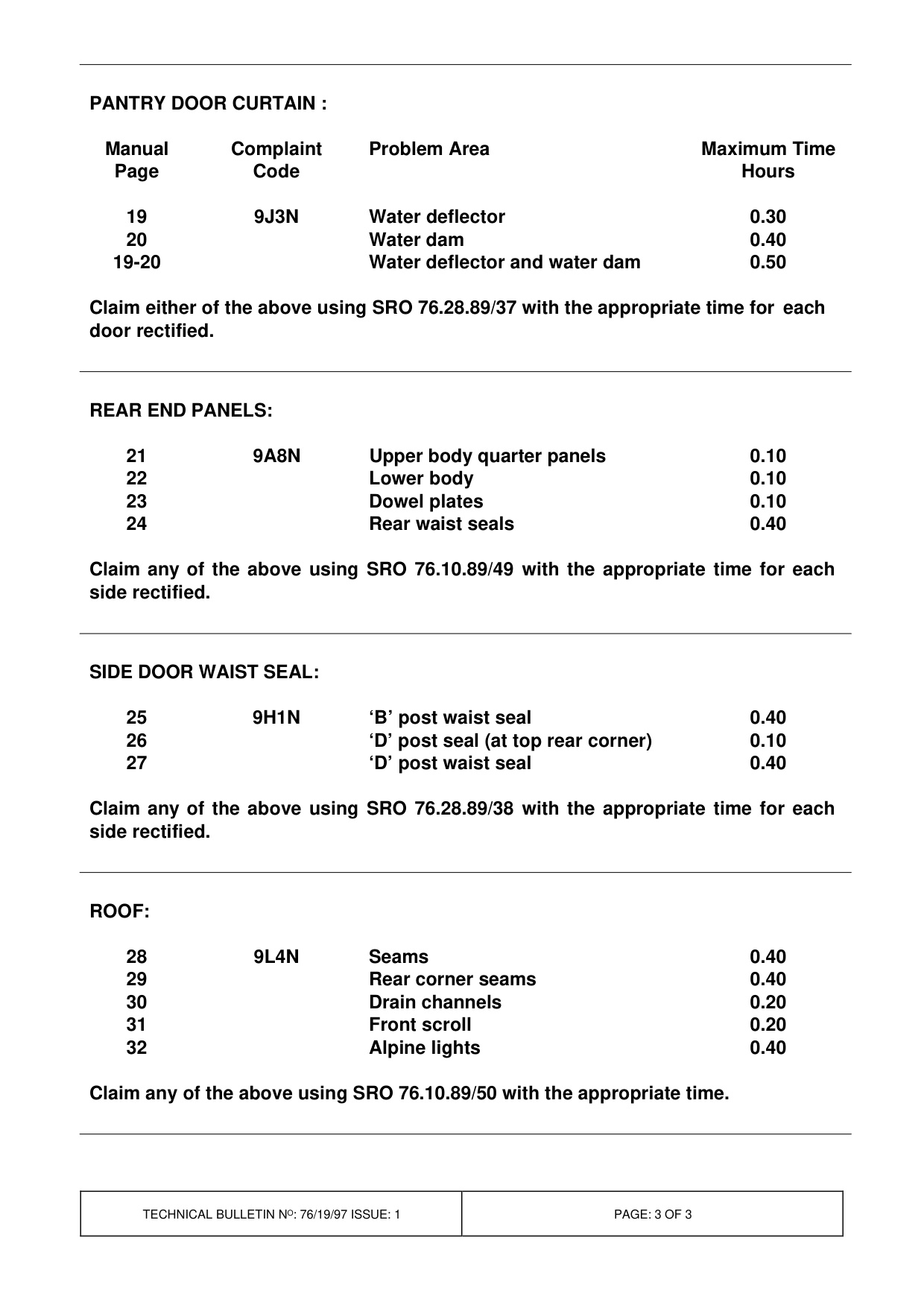

PANTRY DOOR CURTAIN :

Manual Complaint Problem Area Page Code

19 9J3N Water deflector 20 Water dam 19-20 Water deflector and water dam

Claim either of the above using SRO 76.28.89/37 with the appropriate time for each door rectified.

REAR END PANELS:

21 9A8N Upper body quarter panels 22 Lower body 23 Dowel plates 24 Rear waist seals

Claim any of the above using SRO 76.10.89/49 with the appropriate time for each side rectified.

SIDE DOOR WAIST SEAL:

25 9H1N ‘B’ post waist seal 26 ‘D’ post seal (at top rear corner) 27 ‘D’ post waist seal

Claim any of the above using SRO 76.28.89/38 with the appropriate time for each side rectified.

ROOF:

28 9L4N Seams 29 Rear corner seams 30 Drain channels 31 Front scroll 32 Alpine lights

Claim any of the above using SRO 76.10.89/50 with the appropriate time.

Maximum Time Hours

0.30 0.40 0.50

0.10 0.10 0.10 0.40

0.40 0.10 0.40

0.40 0.40 0.20 0.20 0.40
