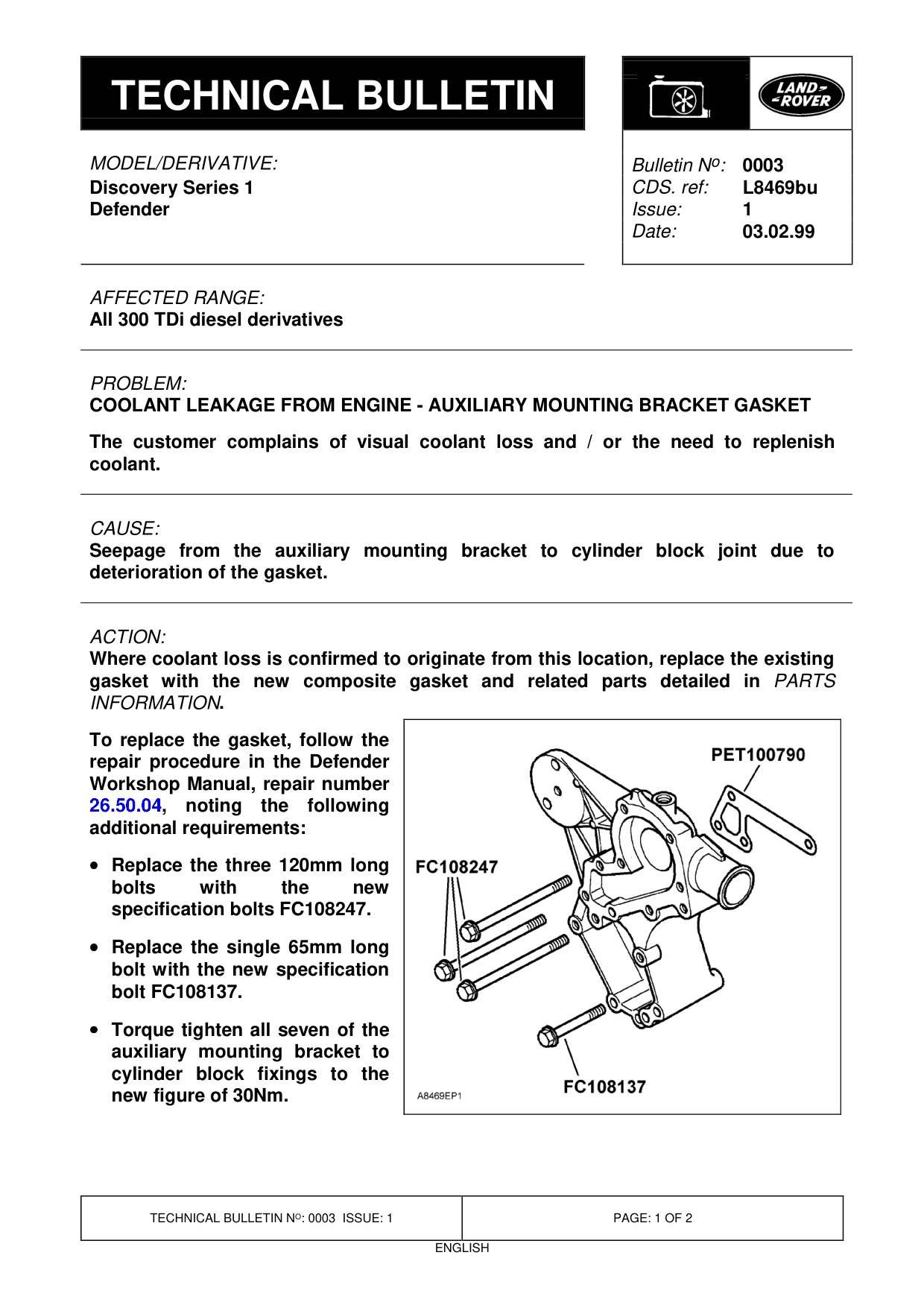

Coolant leakage from engine - auxiliary mounting bracket gasket

COOLANT LEAKAGE FROM ENGINE - AUXILIARY MOUNTING BRACKET GASKET

Model

Discovery Series 1 Defender

Affected vehicles

All 300 TDi diesel derivatives

Date

1999-02-03

Reference

Bulletin 0003, CDS ref L8469bu

Bulletin text

Discovery Series 1 Defender

AFFECTED RANGE:

All 300 TDi diesel derivatives

PROBLEM:

COOLANT LEAKAGE FROM ENGINE - AUXILIARY MOUNTING BRACKET GASKET The customer complains of visual coolant loss and / or the need to replenish coolant.

CAUSE:

Seepage from the auxiliary mounting bracket to cylinder block joint due to deterioration of the gasket.

ACTION:

Where coolant loss is confirmed to originate from this location, replace the existing gasket with the new composite gasket and related parts detailed in PARTS INFORMATION . To replace the gasket, follow the repair procedure in the Defender Workshop Manual, repair number 26.50.04 , noting the following additional requirements:

• = Replace the three 120mm long bolts with the new specification bolts FC108247. = • = Replace the single 65mm long bolt with the new specification bolt FC108137. = • = Torque tighten all seven of the auxiliary mounting bracket to cylinder block fixings to the new figure of 30Nm.

Bulletin N o : 0003 L8469bu 1 03.02.99

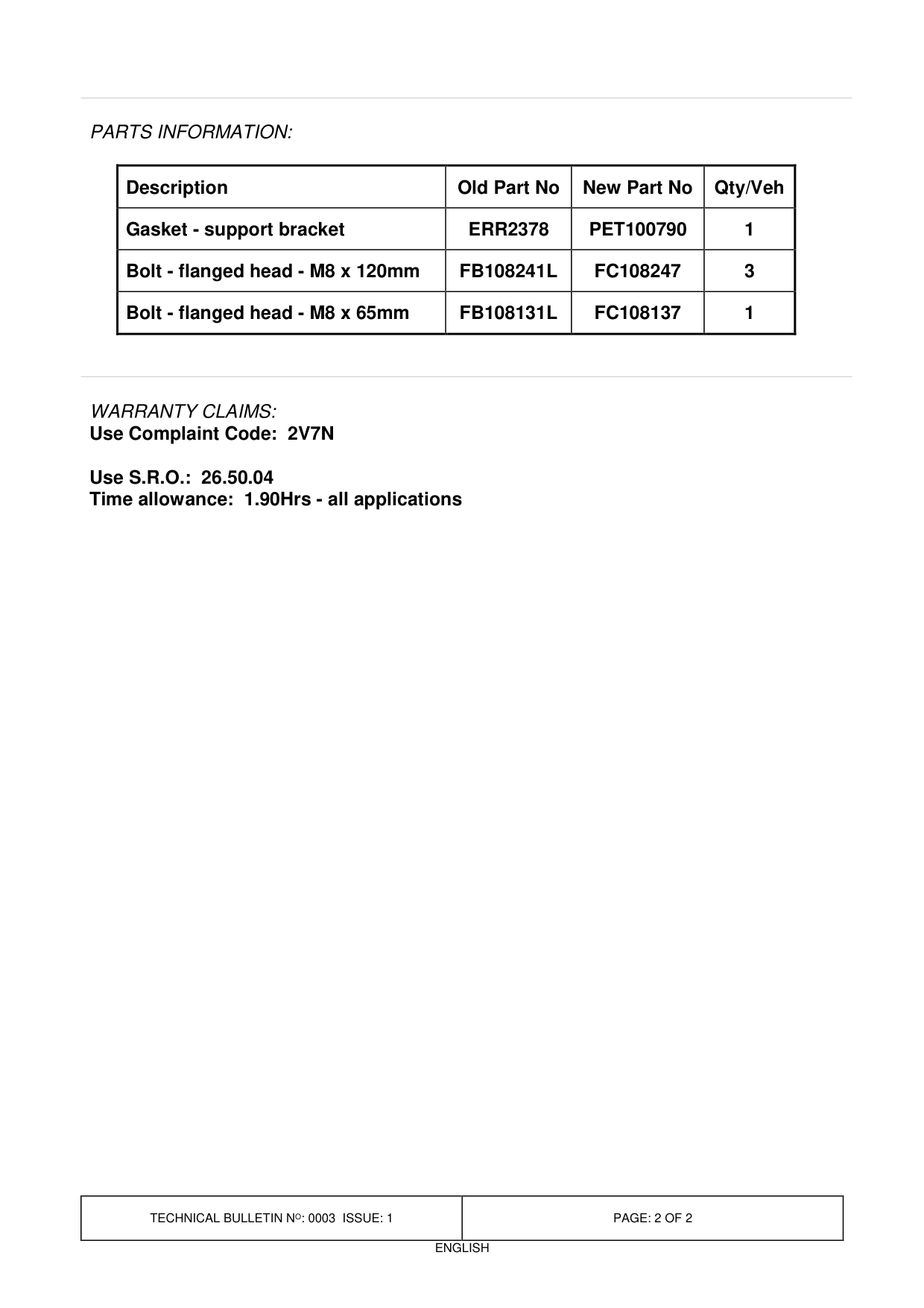

PARTS INFORMATION:

Description

Gasket - support bracket

Bolt - flanged head - M8 x 120mm

Bolt - flanged head - M8 x 65mm

WARRANTY CLAIMS: Use Complaint Code: 2V7N

Use S.R.O.: 26.50.04 Time allowance: 1.90Hrs - all applications

Old Part No New Part No Qty/Veh

ERR2378 PET100790 1

FB108241L FC108247 3

FB108131L FC108137 1
