Eka code re-programming secuity system components

EKA CODE RE-PROGRAMMING SECUITY SYSTEM COMPONENTS

Model

Defender with factory fitted Security System

Affected vehicles

969103 onwards

Date

1996-02-21

Reference

21/02/96

Bulletin text

TestBook Information

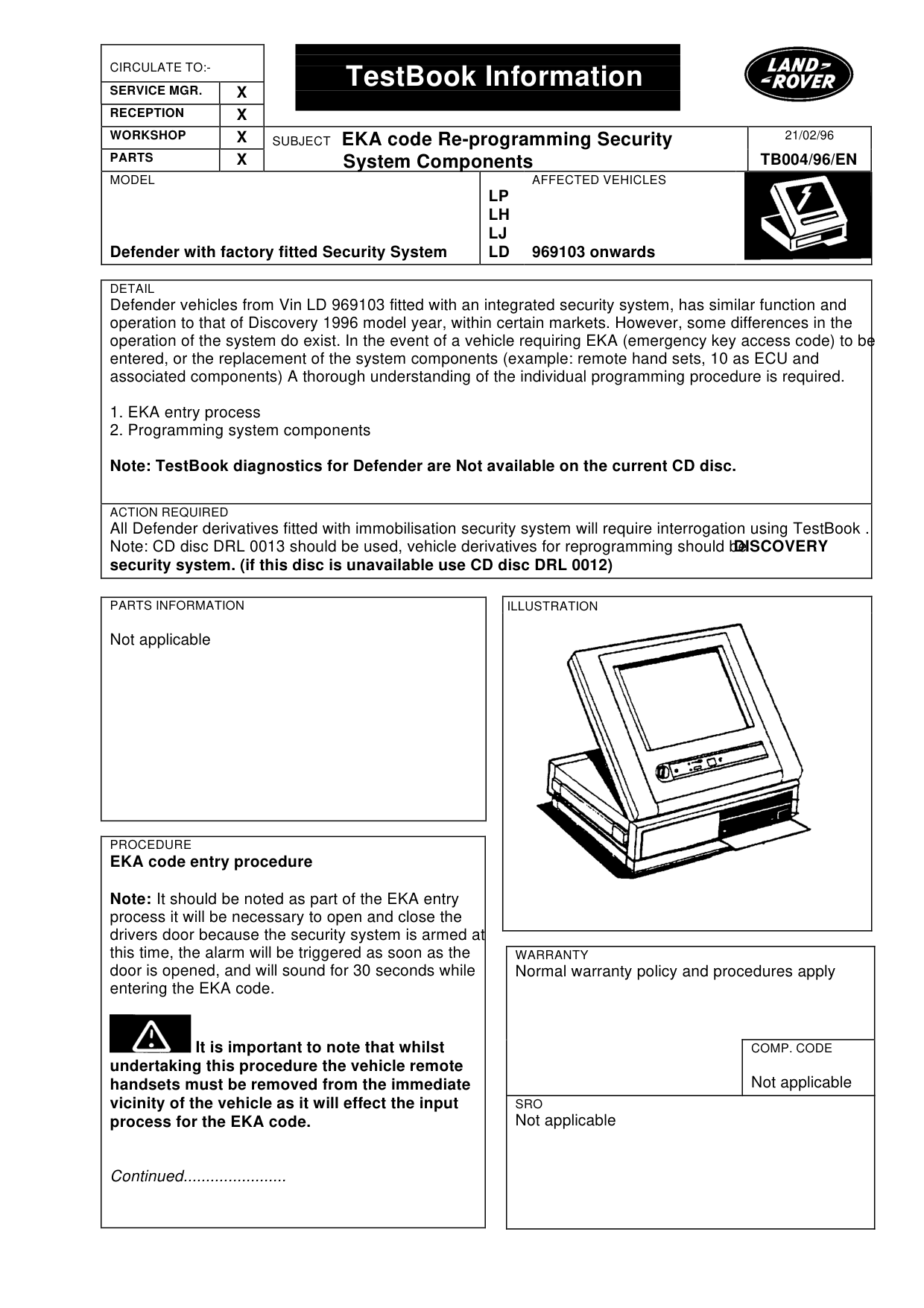

SUBJECT EKA code Re-programming Security System Components

MODEL

Defender with factory fitted Security System

DETAIL

Defender vehicles from Vin LD 969103 fitted with an integrated security system, has similar function and operation to that of Discovery 1996 model year, within certain markets. However, some differences in the operation of the system do exist. In the event of a vehicle requiring EKA (emergency key access code) to be entered, or the replacement of the system components (example: remote hand sets, 10 as ECU and associated components) A thorough understanding of the individual programming procedure is required.

1. EKA entry process 2. Programming system components

Note: TestBook diagnostics for Defender are Not available on the current CD disc.

ACTION REQUIRED

All Defender derivatives fitted with immobilisation security system will require interrogation using TestBook . Note: CD disc DRL 0013 should be used, vehicle derivatives for reprogramming should be security system. (if this disc is unavailable use CD disc DRL 0012)

PARTS INFORMATION

Not applicable

PROCEDURE

EKA code entry procedure

Note: It should be noted as part of the EKA entry process it will be necessary to open and close the drivers door because the security system is armed at this time, the alarm will be triggered as soon as the door is opened, and will sound for 30 seconds while entering the EKA code.

It is important to note that whilst undertaking this procedure the vehicle remote handsets must be removed from the immediate vicinity of the vehicle as it will effect the input process for the EKA code.

Continued.......................

21/02/96

TB004/96/EN

AFFECTED VEHICLES

LP LH LJ LD 969103 onwards

DISCOVERY

WARRANTY

Normal warranty policy and procedures apply

COMP. CODE

Not applicable

SRO

Not applicable

TestBook Information

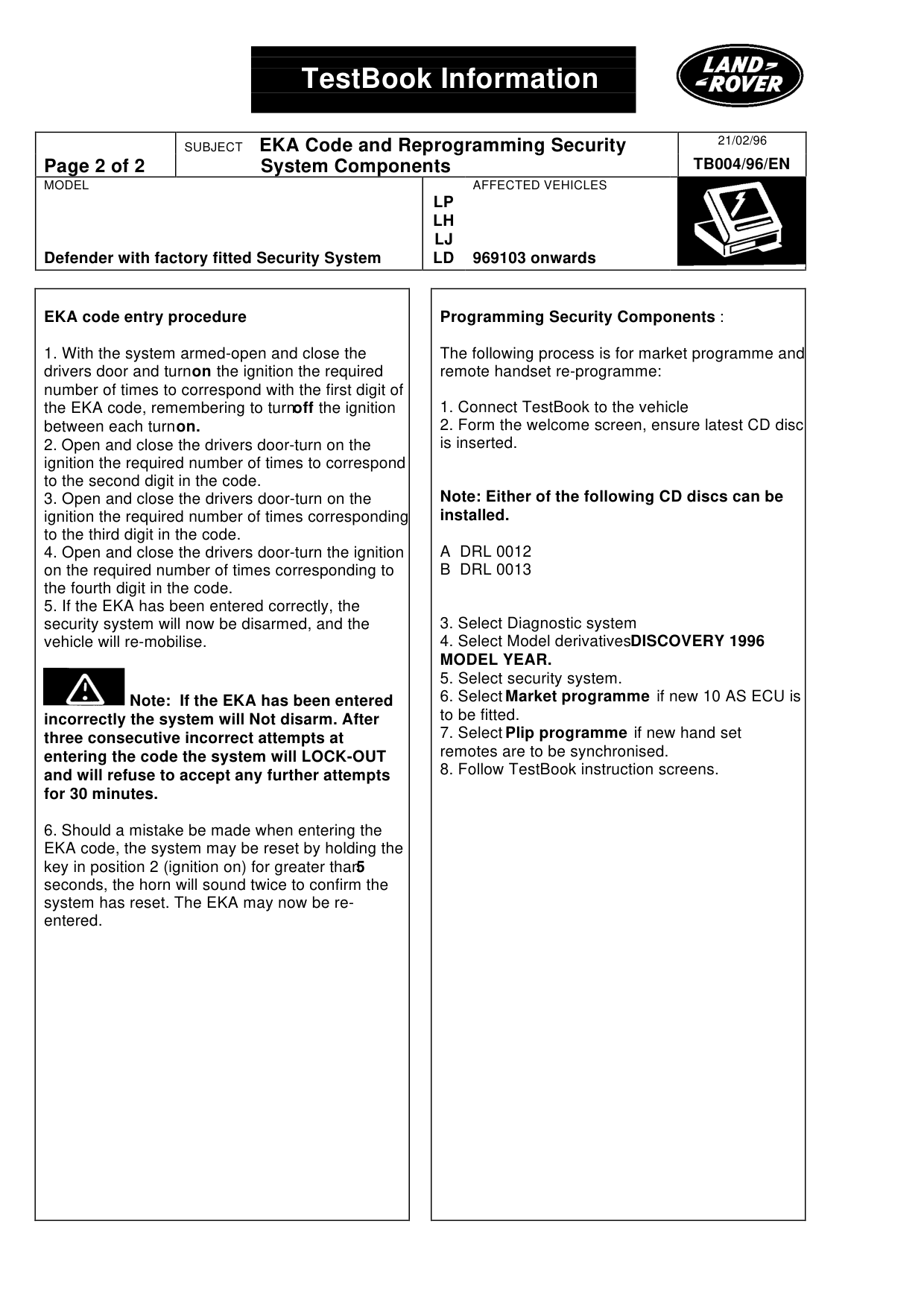

SUBJECT EKA Code and Reprogramming Security System Components

MODEL

Defender with factory fitted Security System

EKA code entry procedure

1. With the system armed-open and close the drivers door and turn on the ignition the required number of times to correspond with the first digit of the EKA code, remembering to turn off the ignition between each turn on. 2. Open and close the drivers door-turn on the ignition the required number of times to correspond to the second digit in the code. 3. Open and close the drivers door-turn on the ignition the required number of times corresponding to the third digit in the code. 4. Open and close the drivers door-turn the ignition on the required number of times corresponding to the fourth digit in the code. 5. If the EKA has been entered correctly, the security system will now be disarmed, and the vehicle will re-mobilise.

Note: If the EKA has been entered incorrectly the system will Not disarm. After three consecutive incorrect attempts at entering the code the system will LOCK-OUT and will refuse to accept any further attempts for 30 minutes.

6. Should a mistake be made when entering the EKA code, the system may be reset by holding the key in position 2 (ignition on) for greater than 5 seconds, the horn will sound twice to confirm the system has reset. The EKA may now be reentered.

21/02/96 TB004/96/EN

AFFECTED VEHICLES

LP LH LJ LD 969103 onwards

Programming Security Components :

The following process is for market programme and remote handset re-programme:

1. Connect TestBook to the vehicle 2. Form the welcome screen, ensure latest CD disc is inserted.
