Head lining alpine light-misalignment

HEAD LINING ALPINE LIGHT-MISALIGNMENT

Model

Defender 90/110

Affected vehicles

All

Date

1996-07-24

Reference

24/07/96

Bulletin text

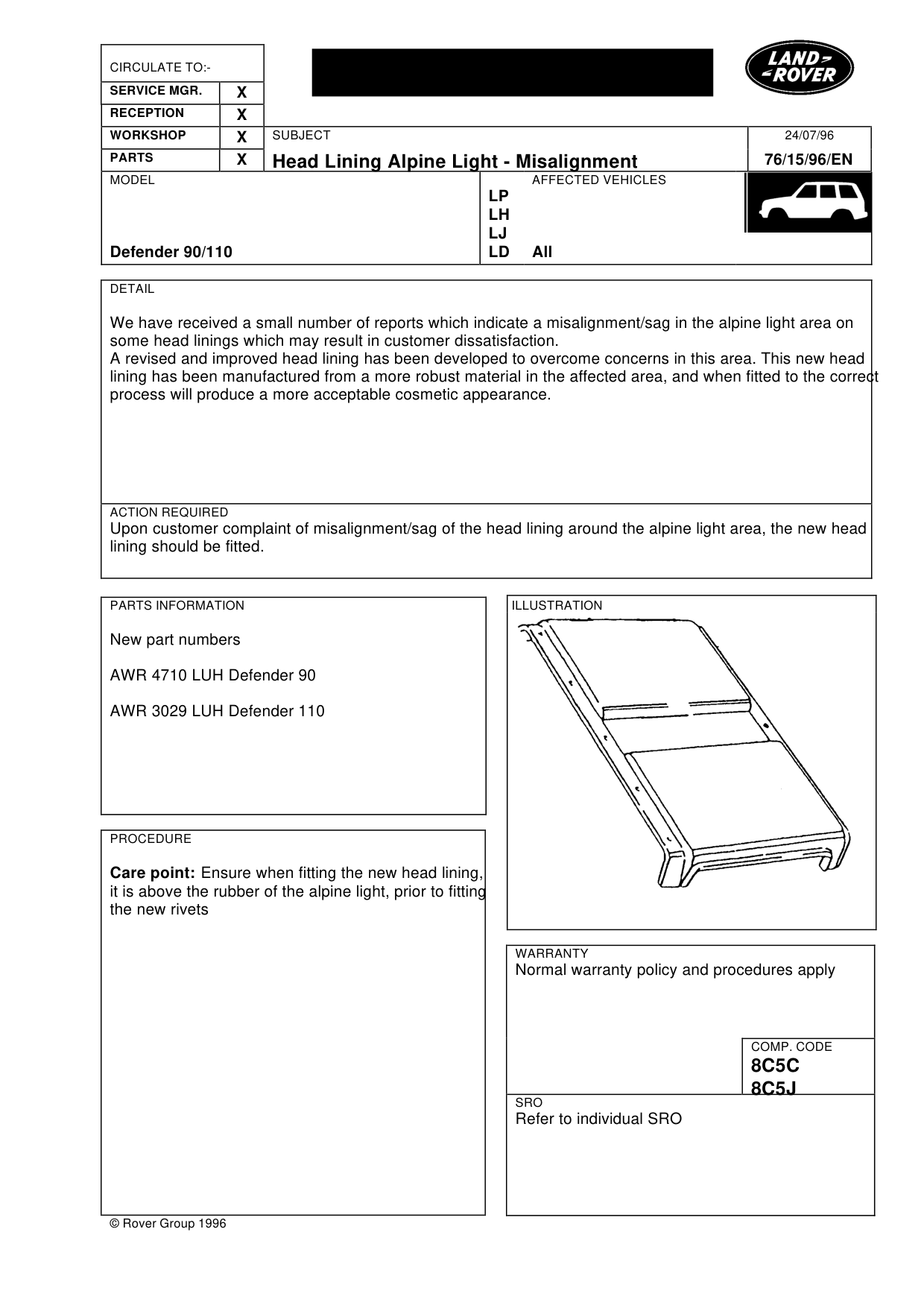

Head Lining Alpine Light - Misalignment

MODEL

Defender 90/110

DETAIL

We have received a small number of reports which indicate a misalignment/sag in the alpine light area on some head linings which may result in customer dissatisfaction. A revised and improved head lining has been developed to overcome concerns in this area. This new head lining has been manufactured from a more robust material in the affected area, and when fitted to the correct process will produce a more acceptable cosmetic appearance.

ACTION REQUIRED

Upon customer complaint of misalignment/sag of the head lining around the alpine light area, the new head lining should be fitted.

PARTS INFORMATION

New part numbers

AWR 4710 LUH Defender 90

AWR 3029 LUH Defender 110

PROCEDURE

Care point: Ensure when fitting the new head lining, it is above the rubber of the alpine light, prior to fitting the new rivets

© Rover Group 1996

24/07/96

76/15/96/EN

AFFECTED VEHICLES

LP LH LJ LD All

WARRANTY

Normal warranty policy and procedures apply

COMP. CODE

8C5C 8C5J

SRO

Refer to individual SRO
