Rear fog light - intermittent operation

REAR FOG LIGHT - INTERMITTENT OPERATION

Model

Defender

Affected vehicles

104806 to 105507

Date

1997-01-09

Reference

09/01/97

Bulletin text

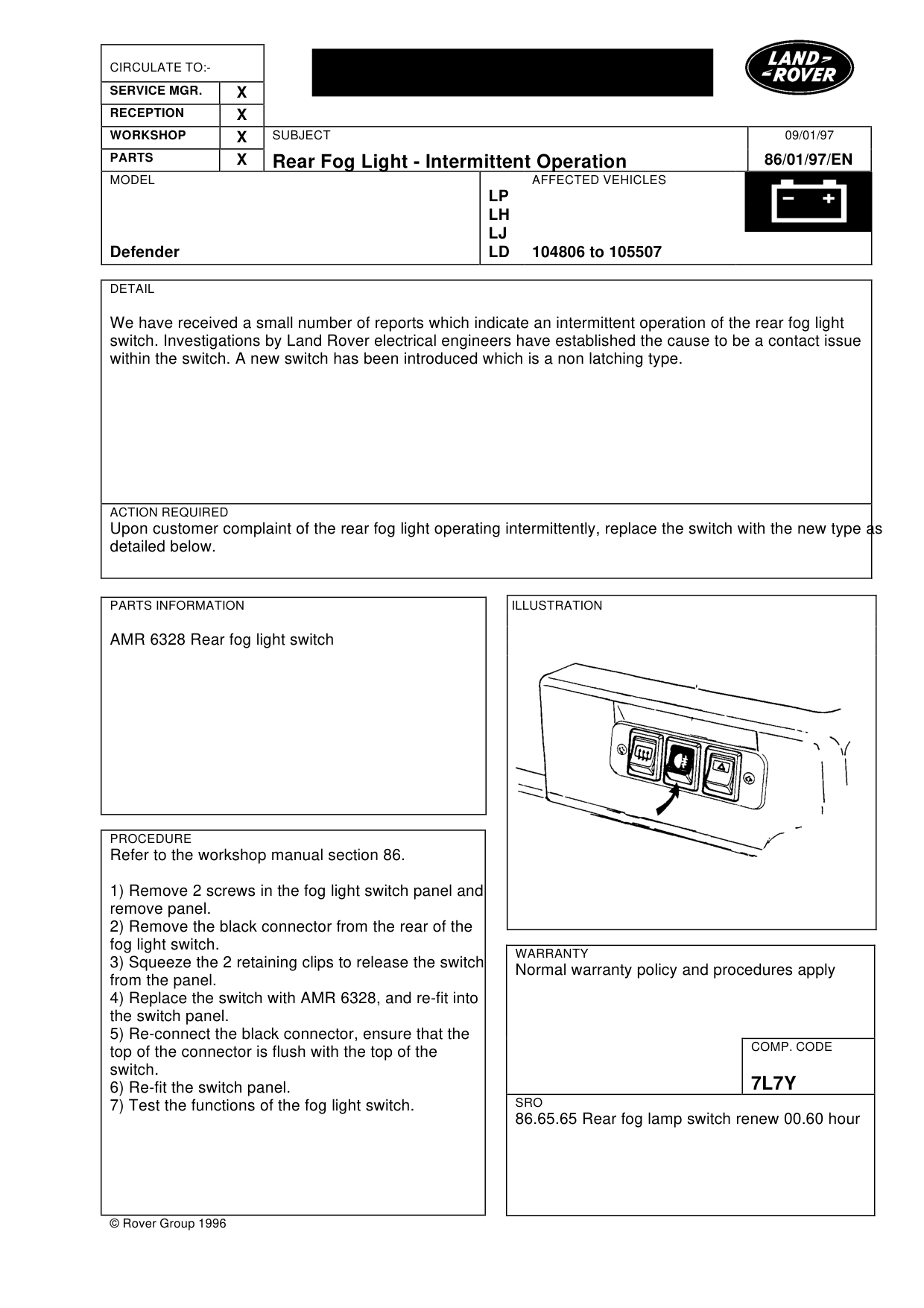

Rear Fog Light - Intermittent Operation

MODEL

Defender

DETAIL

We have received a small number of reports which indicate an intermittent operation of the rear fog light switch. Investigations by Land Rover electrical engineers have established the cause to be a contact issue within the switch. A new switch has been introduced which is a non latching type.

ACTION REQUIRED

Upon customer complaint of the rear fog light operating intermittently, replace the switch with the new type as detailed below.

PARTS INFORMATION

AMR 6328 Rear fog light switch

PROCEDURE

Refer to the workshop manual section 86.

1) Remove 2 screws in the fog light switch panel and remove panel. 2) Remove the black connector from the rear of the fog light switch. 3) Squeeze the 2 retaining clips to release the switch from the panel. 4) Replace the switch with AMR 6328, and re-fit into the switch panel. 5) Re-connect the black connector, ensure that the top of the connector is flush with the top of the switch. 6) Re-fit the switch panel. 7) Test the functions of the fog light switch.

© Rover Group 1996

09/01/97

86/01/97/EN

AFFECTED VEHICLES

LP LH LJ LD 104806 to 105507

WARRANTY

Normal warranty policy and procedures apply

COMP. CODE

7L7Y

SRO

86.65.65 Rear fog lamp switch renew 00.60 hour
