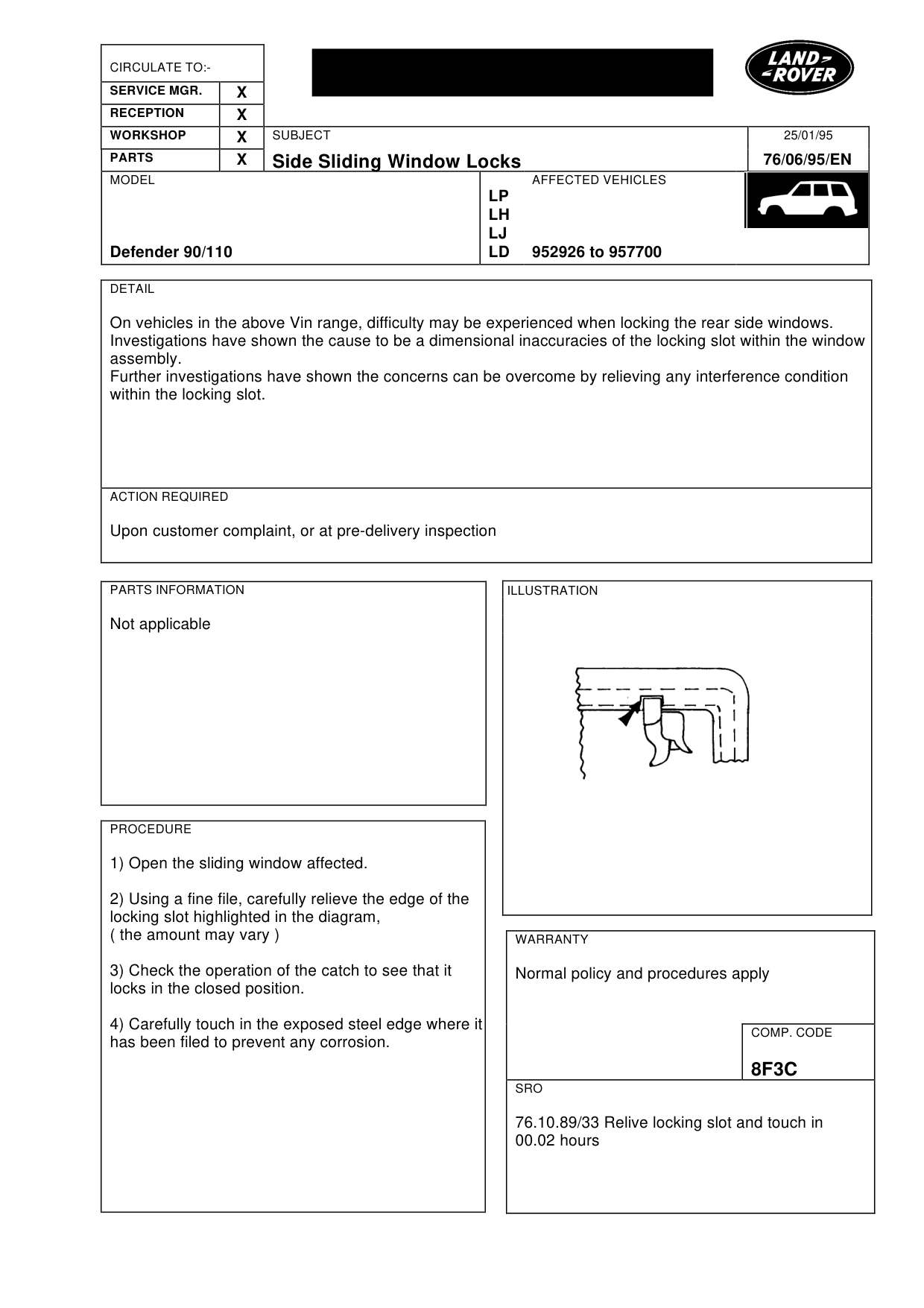

Side sliding window locks

SIDE SLIDING WINDOW LOCKS

Model

Defender 90/110

Affected vehicles

952926 to 957700

Date

1995-01-25

Reference

25/01/95

Bulletin text

Side Sliding Window Locks

MODEL

Defender 90/110

DETAIL

On vehicles in the above Vin range, difficulty may be experienced when locking the rear side windows. Investigations have shown the cause to be a dimensional inaccuracies of the locking slot within the window assembly. Further investigations have shown the concerns can be overcome by relieving any interference condition within the locking slot.

ACTION REQUIRED

Upon customer complaint, or at pre-delivery inspection

PARTS INFORMATION

Not applicable

PROCEDURE

1) Open the sliding window affected.

2) Using a fine file, carefully relieve the edge of the locking slot highlighted in the diagram, ( the amount may vary )

3) Check the operation of the catch to see that it locks in the closed position.

4) Carefully touch in the exposed steel edge where it has been filed to prevent any corrosion.

25/01/95

76/06/95/EN

AFFECTED VEHICLES

LP LH LJ LD 952926 to 957700

WARRANTY

Normal policy and procedures apply

COMP. CODE

8F3C

SRO

76.10.89/33 Relive locking slot and touch in 00.02 hours
