TestBook diagnostic service repair operation times

TESTBOOK DIAGNOSTIC SERVICE REPAIR OPERATION TIMES

Model

New Range Rover Range Rover Classic Discovery Defender

Affected vehicles

All All All All

Date

1996-05-22

Reference

22/05/96

Bulletin text

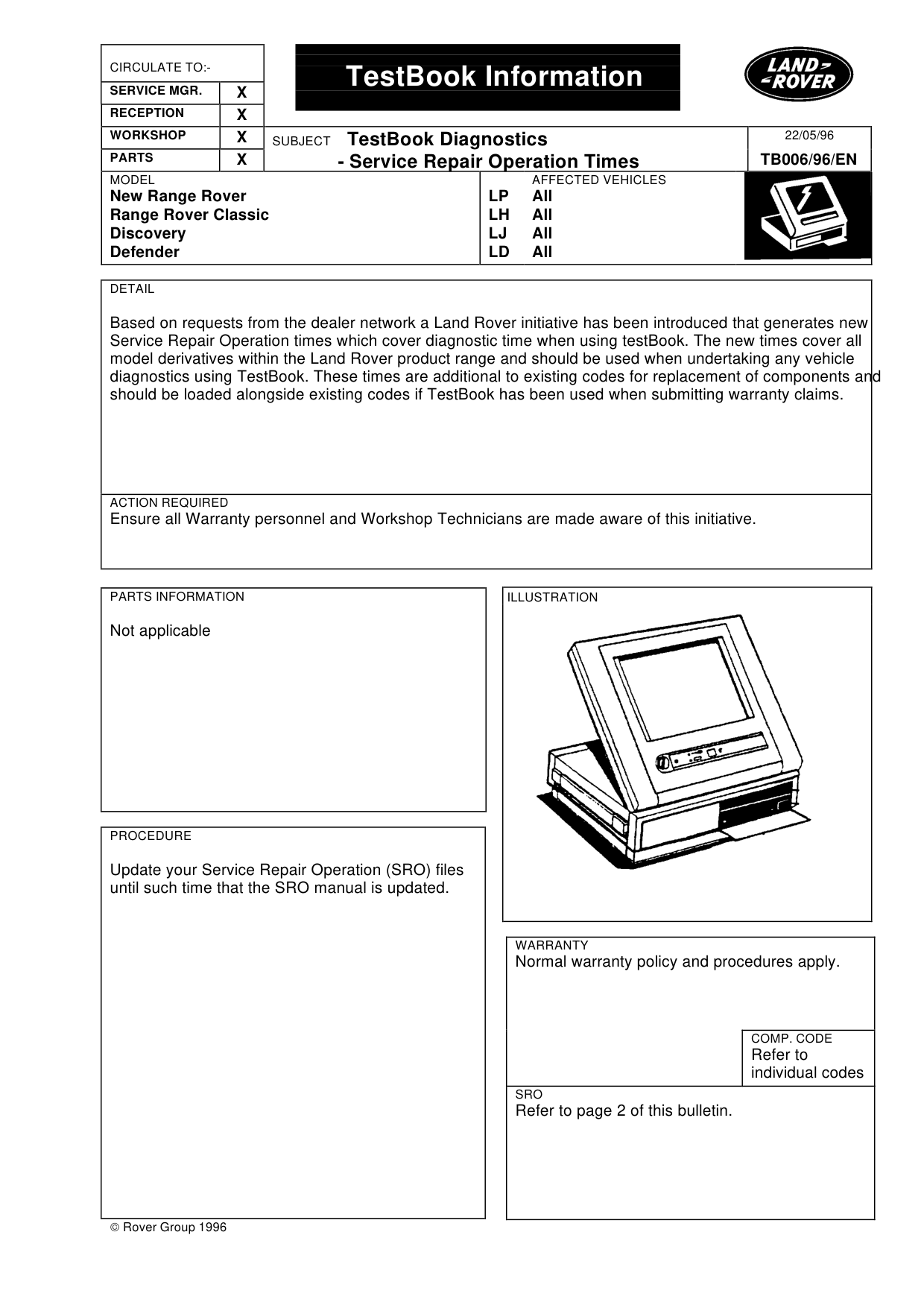

TestBook Information

SUBJECT TestBook Diagnostics - Service Repair Operation Times

MODEL

New Range Rover Range Rover Classic Discovery Defender

DETAIL

Based on requests from the dealer network a Land Rover initiative has been introduced that generates new Service Repair Operation times which cover diagnostic time when using testBook. The new times cover all model derivatives within the Land Rover product range and should be used when undertaking any vehicle diagnostics using TestBook. These times are additional to existing codes for replacement of components and should be loaded alongside existing codes if TestBook has been used when submitting warranty claims.

ACTION REQUIRED

Ensure all Warranty personnel and Workshop Technicians are made aware of this initiative.

PARTS INFORMATION

Not applicable

PROCEDURE

Update your Service Repair Operation (SRO) files until such time that the SRO manual is updated.

 Rover Group 1996

22/05/96

TB006/96/EN

AFFECTED VEHICLES

LP All LH All LJ All LD All

WARRANTY

Normal warranty policy and procedures apply.

COMP. CODE

Refer to individual codes

SRO

Refer to page 2 of this bulletin.

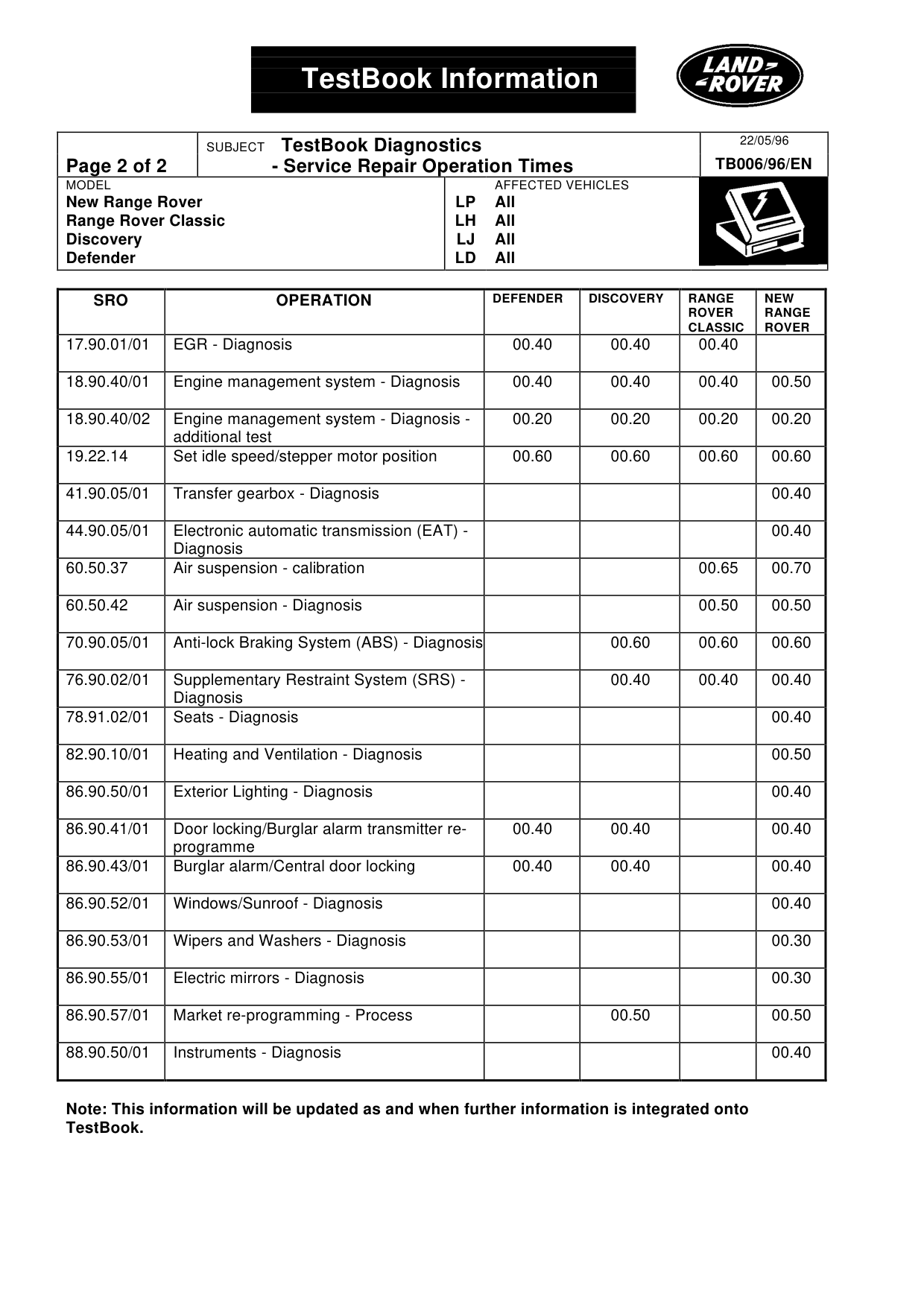

TestBook Information

SUBJECT TestBook Diagnostics - Service Repair Operation Times

MODEL

New Range Rover Range Rover Classic Discovery Defender

SRO OPERATION

17.90.01/01 EGR - Diagnosis

18.90.40/01 Engine management system - Diagnosis

18.90.40/02 Engine management system - Diagnosis - additional test 19.22.14 Set idle speed/stepper motor position

41.90.05/01 Transfer gearbox - Diagnosis

44.90.05/01 Electronic automatic transmission (EAT) - Diagnosis 60.50.37 Air suspension - calibration

60.50.42 Air suspension - Diagnosis

70.90.05/01 Anti-lock Braking System (ABS) - Diagnosis

76.90.02/01 Supplementary Restraint System (SRS) - Diagnosis 78.91.02/01 Seats - Diagnosis

82.90.10/01 Heating and Ventilation - Diagnosis

86.90.50/01 Exterior Lighting - Diagnosis

86.90.41/01 Door locking/Burglar alarm transmitter reprogramme 86.90.43/01 Burglar alarm/Central door locking

86.90.52/01 Windows/Sunroof - Diagnosis

86.90.53/01 Wipers and Washers - Diagnosis

86.90.55/01 Electric mirrors - Diagnosis

86.90.57/01 Market re-programming - Process

88.90.50/01 Instruments - Diagnosis

Note: This information will be updated as and when further information is integrated onto TestBook.

22/05/96 TB006/96/EN

AFFECTED VEHICLES

LP All LH All LJ All LD All

DEFENDER DISCOVERY RANGE NEW ROVER RANGE CLASSIC ROVER 00.40 00.40 00.40

00.40 00.40 00.40 00.50

00.20 00.20 00.20 00.20

00.60 00.60 00.60 00.60

00.40

00.40

00.65 00.70

00.50 00.50

00.60 00.60 00.60

00.40 00.40 00.40

00.40

00.50

00.40

00.40 00.40 00.40

00.40 00.40 00.40

00.40

00.30

00.30

00.50 00.50

00.40
